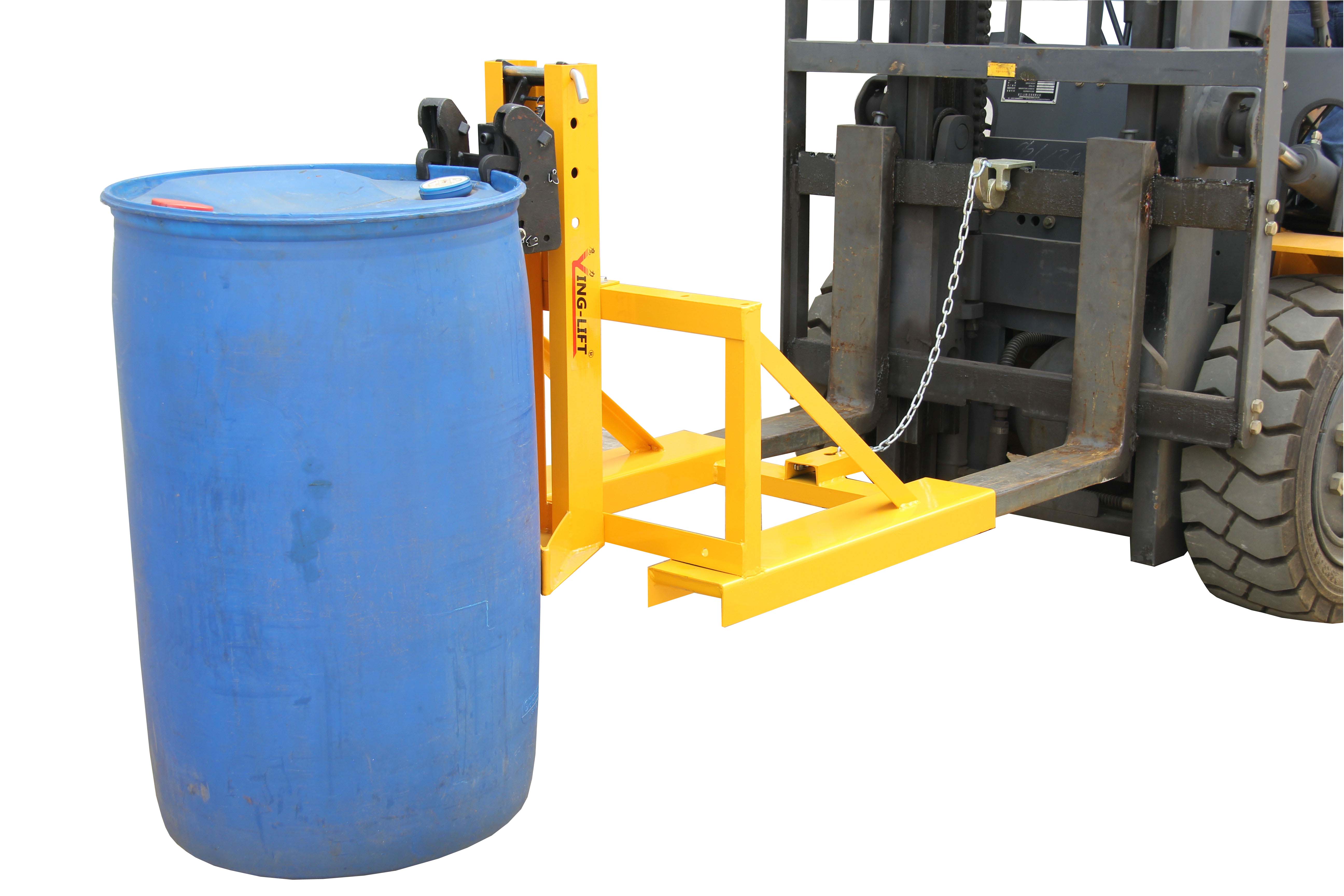

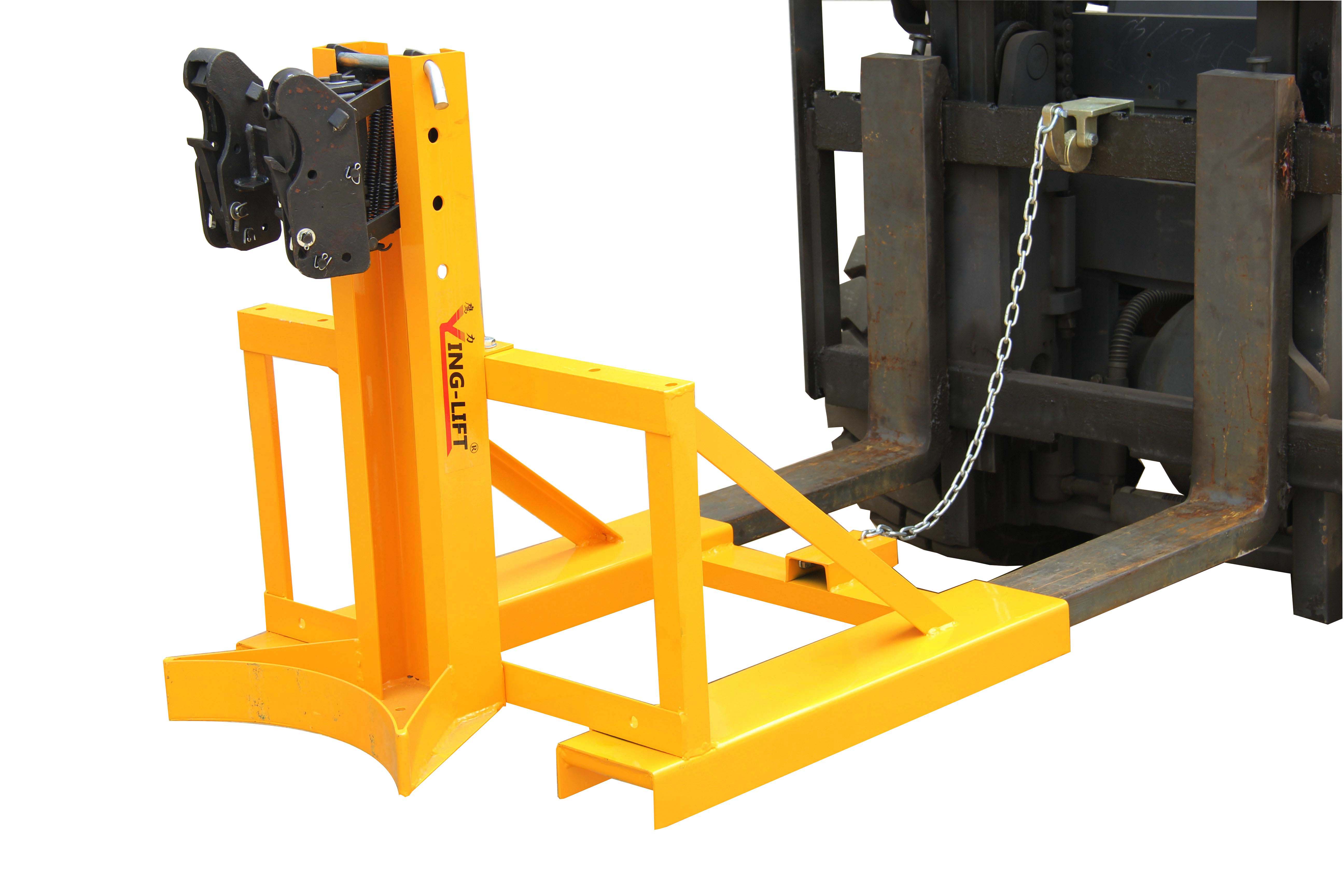

Name:DG360F Double Gator Grip Forklift Mounted Drum Grab
Model:DG360F
Product Introduction:- Grab, lift, move and place drums without the operator leaving driver's seat; - Completely Mechanical and Automatic drum grab requires no hydraulic or electrical connections; - Automatic clamping mechanism for handling steel and plastic drums in high volume applications; - Use special black eagle-gripper structure, wholly made of cast steel; easier to operate, more durable; - Carriage mounted models are available to mount directly on the carriage of most lift trucks for tight aisle applications; - Can handle 1 or 2 drums simultaneously; - Totally enclosed fork pockets with attached safety chain and cam lock secures attachment to lift truck. - Double-Grip type grabs.

Grab, lift, move and place drums without the operator leaving driver's seat;

Completely Mechanical and Automatic drum grab requires no hydraulic or

electrical connections;

Automatic clamping mechanism for handling steel and plastic drums in high

volume applications;

Use special black eagle-gripper structure, wholly made of cast steel; easier to

operate, more durable;

Carriage mounted models are available to mount directly on the carriage of most

lift trucks for tight aisle applications;

Can handle 1 or 2 drums simultaneously;

- Totally enclosed fork pockets with attached safety chain and cam lock secures

attachment to lift truck.

- Double-Grip type grabs.

Model DG360F
Capacity kg 360
Net Weight kg 56
Overall Size  mm 1030*760*850
Load Center mm 1150
Grab Min. Height mm 465
Grab Max. Height  mm 690
Grab Middle Height mm 615--540
Foks leg (length*width) mm 150*55
Straddle inner Width mm 450
Staddle outline Width mm 750
Straddle Length mm 750
