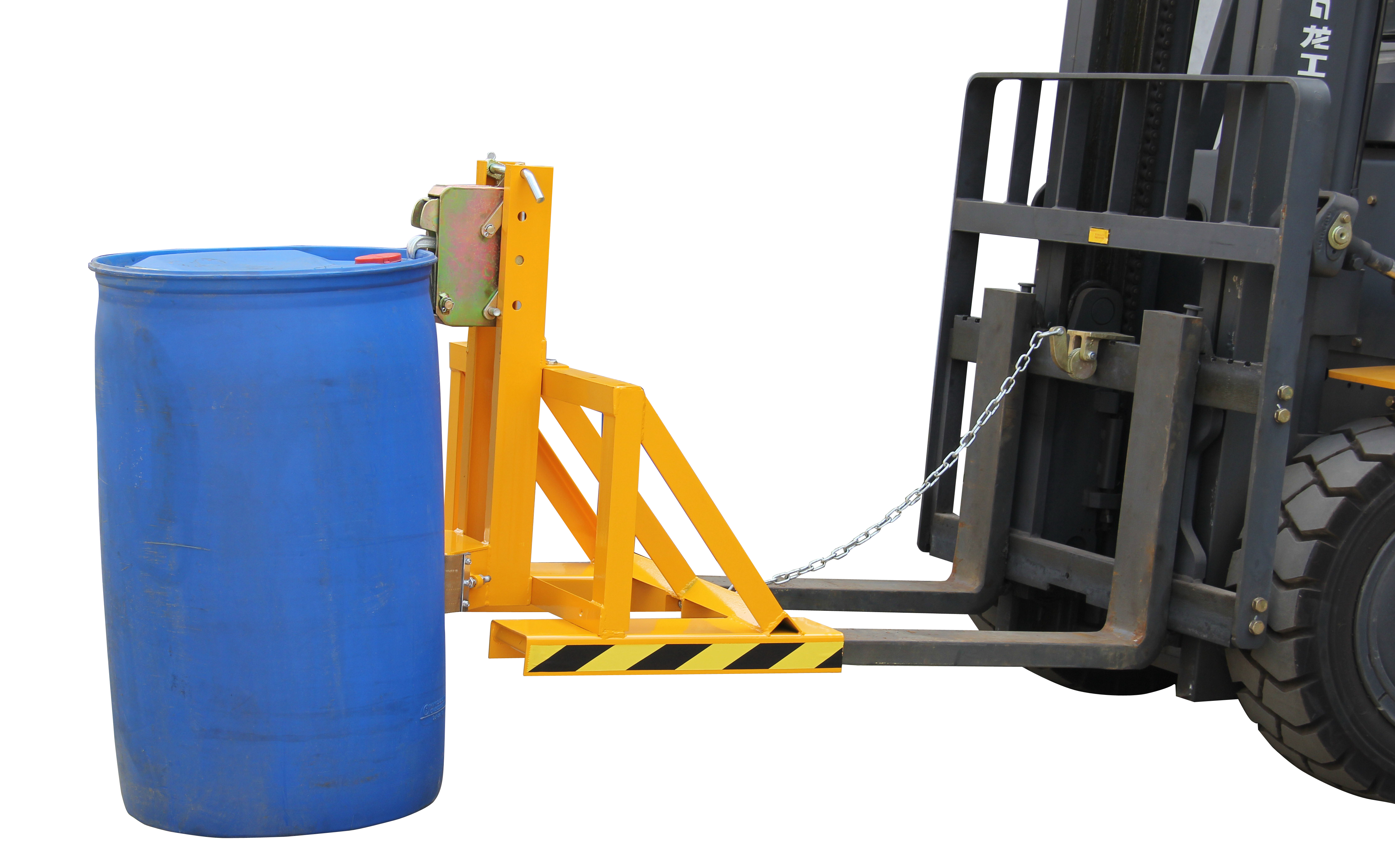

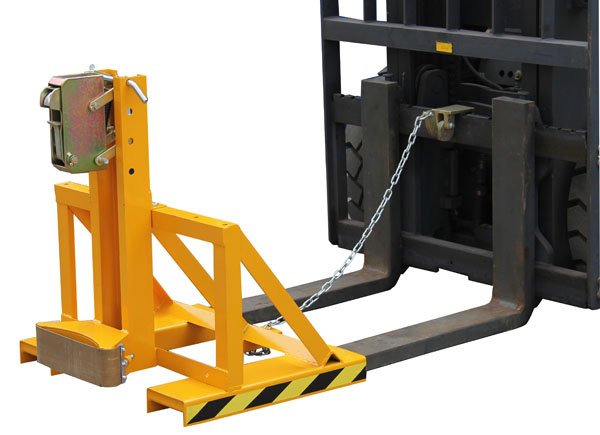

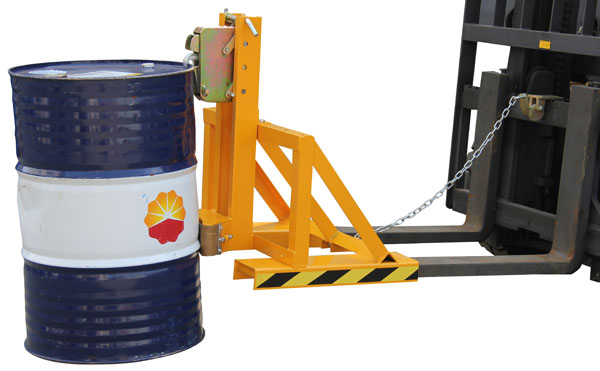

Name:DG500A Single Gator Grip Heavy Duty Forklift Mounted Drum Grab
Model:DG500A
Product Introduction:- Heavy duty Single Eagle-Grip automatic clamping mechanism for handling steel and plastic drums in high volume applications; - Clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections; - Replaceable soft wear-resistant protective cushion effectively protects drums & absorbs vibration; - Positive action jaws insure safe transporting of drums without damage to drum chimes. - It enables lift truck operators to install/remove the attachment in seconds without any tools. - Quick adjustable heads allow pickup of various drum heights.

Heavy duty Single Eagle-Grip automatic clamping mechanism for

handling steel and plastic drums in high volume applications;

Clamping mechanisms are completely mechanical, requiring no

hydraulic or electrical connections;

Replaceable soft wear-resistant protective cushion effectively protects

drums & absorbs vibration;

Positive action jaws insure safe transporting of drums without damage

to drum chimes.

It enables lift truck operators to install/remove the attachment in seconds

without any tools.

Quick adjustable heads allow pickup of various drum heights.

Model DG500A
Capacity  kg 500
Net Weight mm 52
Overall Size  mm 910*730*850
Load Center mm 1150
Grab Min. Height mm 525
Grab Max. Height mm 750
Grab Middle Height mm 675--600
Foks leg (length*width) mm 150*55
Straddle inner Width mm 450
Staddle outline Width mm 750
Straddle Length mm 750
