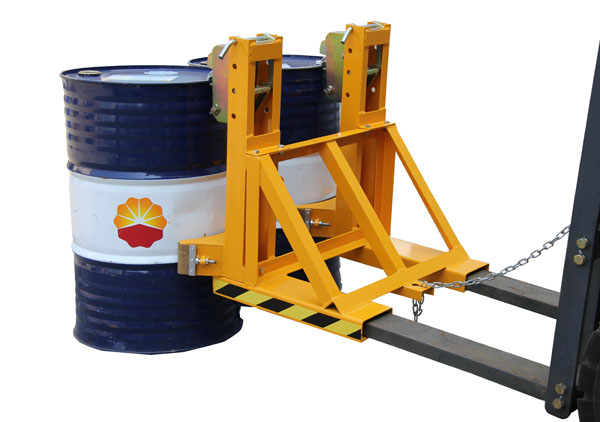

Name:DG1000A Single Gator Grip Heavy Duty Forklift Mounted Drum Grab
Model:DG1000A
Product Introduction:1.Heavy duty Single Eagle-Grip automatic clamping mechanism for handling steel and plastic drums in high volume applications. 2.Clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections. 3.Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration during driving. 4.Positive action jaws insure safe transporting of drums without damage to drum chimes. 5. Quick adjustable heads allow pickup of various drum heights. Standard heavy duty rubber belt bases support the lower side of the drum eliminating dents or cosmetic marring.

1.Heavy duty Single Eagle-Grip automatic clamping mechanism for handling

steel and plastic drums in high volume applications.

2.Clamping mechanisms are completely mechanical, requiring no hydraulic or

electrical connections.

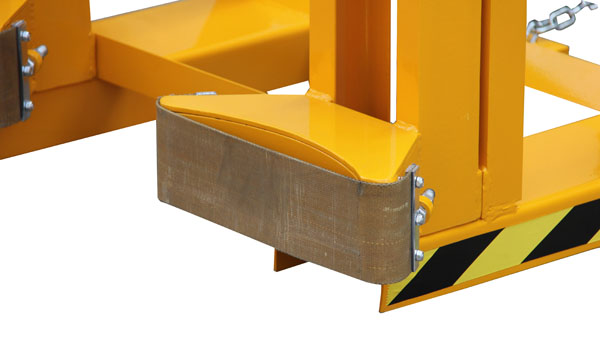

3.Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration during driving.

4.Positive action jaws insure safe transporting of drums without damage to drum chimes.

5. Quick adjustable heads allow pickup of various drum heights. Standard heavy duty rubber belt bases support the lower side of the drum eliminating dents or cosmetic marring.

Model DG1000A
Capacity kg 500*2
Net Weight kg 71
Overall Size mm 910*760*870
Load Center mm 1150
Grab Min. Height mm 525
Grab Max. Height mm 750
Grab Middle Height mm 675--600
Foks leg (length*width) mm 150*55
Straddle inner Width mm 430
Staddle outline Width mm 750
Straddle Length mm 750
