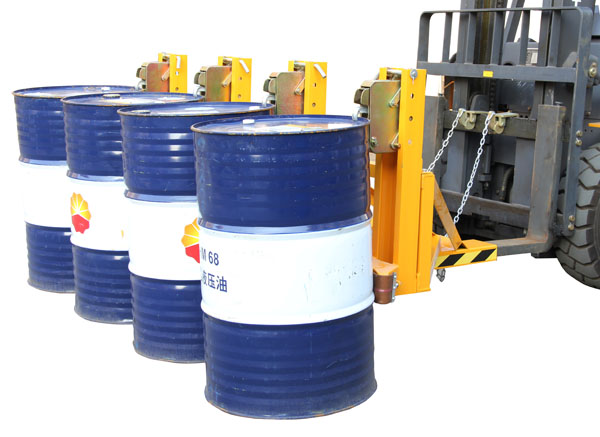

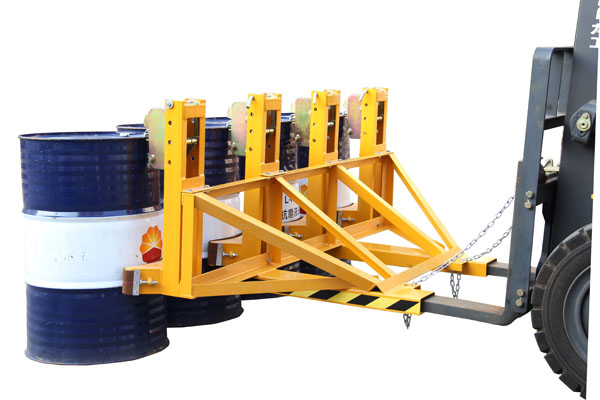

Name:DG2000A Single Gator Grip Heavy Duty Forklift Mounted Drum Grab
Model:DG2000A
Product Introduction:1.Single Eagle-Grip automatic clamping mechanism for handling steel & plastic drums in high volume applications. 2.Clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections. 3.Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration. 4.Positive action jaws insure safe transporting of drums without damage to drum chimes. 5. Lift truck operators to install/remove the attachment in seconds without any tools. 6.Fork mounted models can handle 1, 2, 3 or 4 drums simultaneously. 7.Quick adjustable heads allow pickup of various drum heights.

1.Single Eagle-Grip automatic clamping mechanism for handling steel & plastic drums in high volume applications.

2.Clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections.

3.Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration.

4.Positive action jaws insure safe transporting of drums without damage to drum chimes.

5. Lift truck operators to install/remove the attachment in seconds without any tools.

6.Fork mounted models can handle 1, 2, 3 or 4 drums simultaneously.

7.Quick adjustable heads allow pickup of various drum heights.

Model DG2000A
Capacity  kg 500*4
Net Weight kg 137
Overall Size  mm 2190*1080*850
Load Center mm 1150
Grab Min. Height mm 525
Grab Max. Height mm 750
Grab Middle Height mm 675--600
Foks leg (length*width) mm 150*55
Straddle inner Width mm 680
Staddle outline Width mm 990
Straddle Length mm 900
