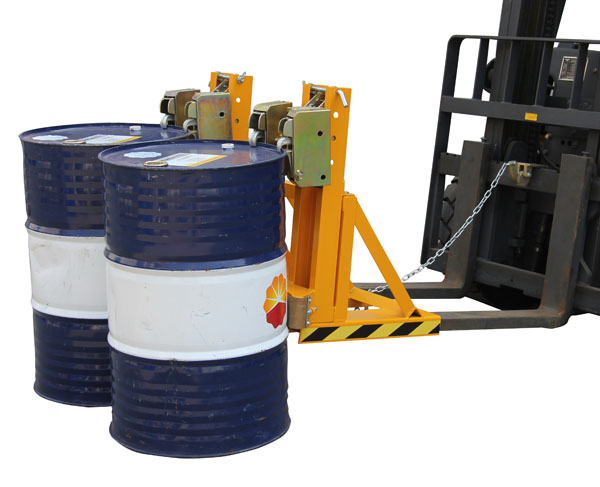

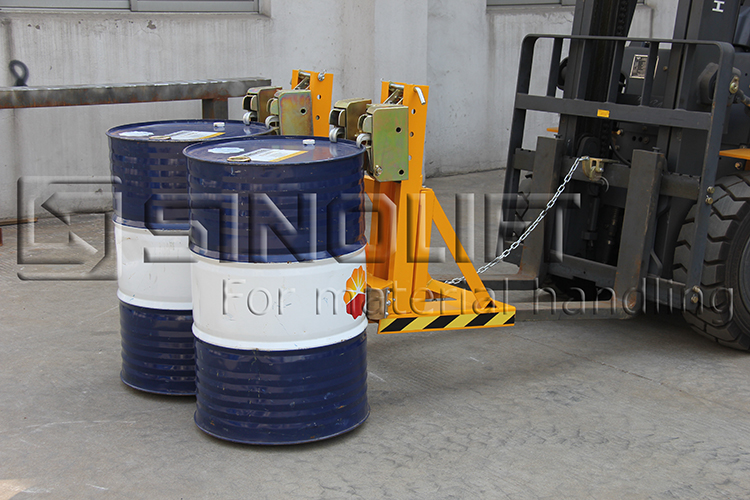

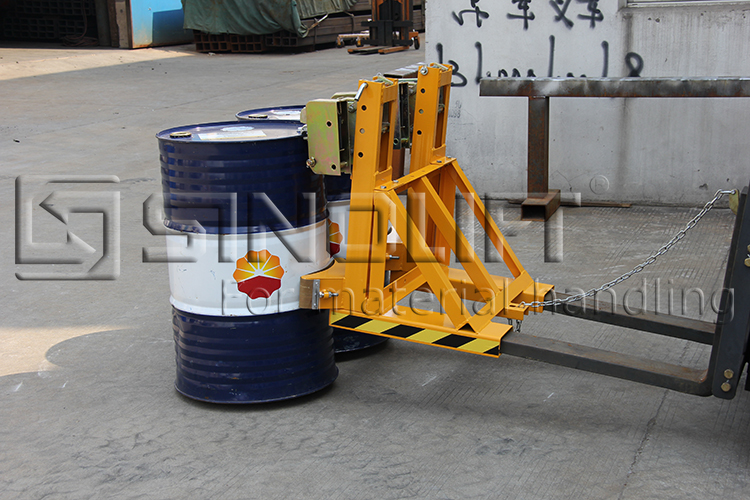

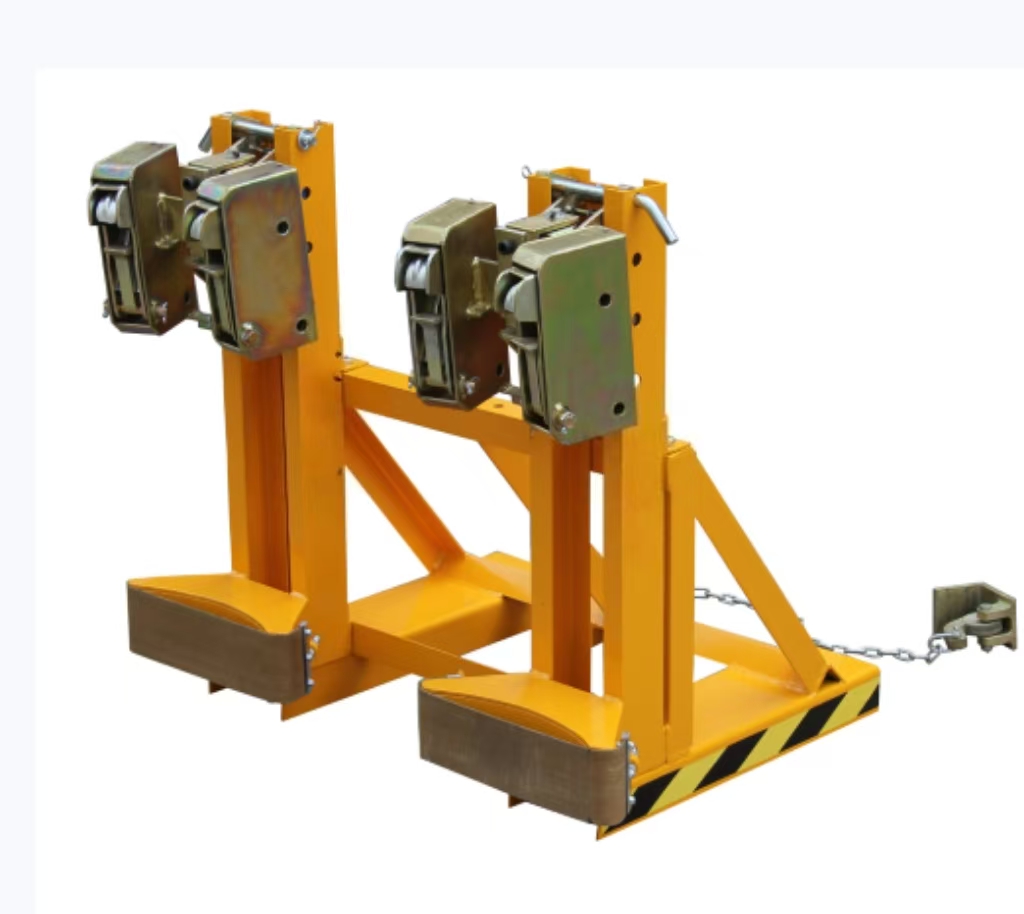

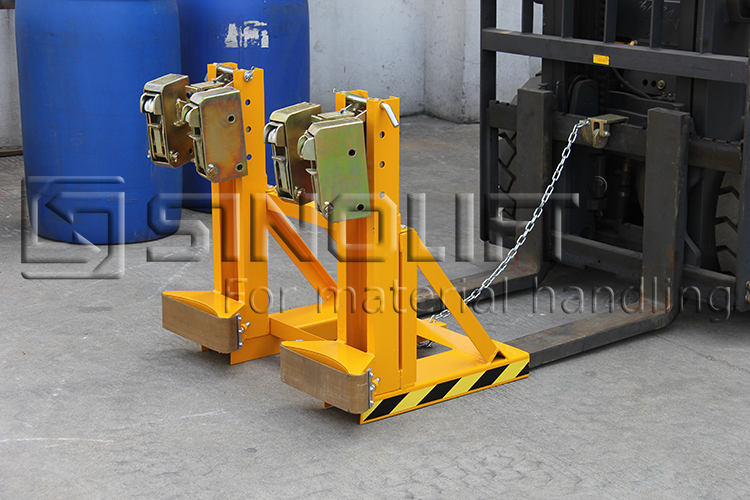

Name:DG1000B Double Gator Grip Heavy Duty Forklift Mounted Drum Grab
Model:DG1000B
Product Introduction:1. Double Eagle-Grip automatic clamping mechanism for handling steel and plastic drums in high volume applications. 2. Clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections. 3. Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration during driving. 4. Positive action jaws insure safe transporting of drums without damage to drum chimes. 5. Lift truck operators to install/remove attachment in seconds without any tools. 6.Fork mounted models can handle 1, 2drums simultaneously. 7.Quick adjustable heads allow pickup of various drum heights.

1. Double Eagle-Grip automatic clamping mechanism for handling steel and

plastic drums in high volume applications.

2. Clamping mechanisms are completely mechanical, requiring no hydraulic or

electrical connections.

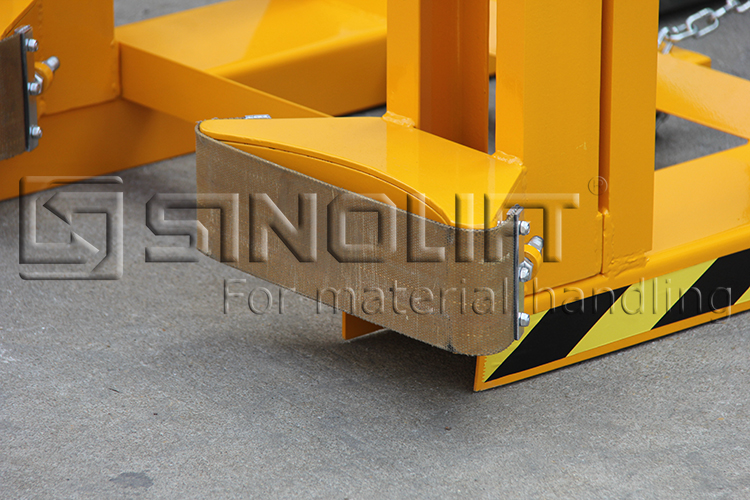

3. Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration during driving.

4. Positive action jaws insure safe transporting of drums without damage to drum chimes.

5. Lift truck operators to install/remove attachment in seconds without any tools.

6.Fork mounted models can handle 1, 2drums simultaneously.

7.Quick adjustable heads allow pickup of various drum heights.

Model DG1000B
Capacity kg 500*2
Net Weight kg 86
Overall Size mm 910*760*870
Load Center mm 1150
Grab Min. Height mm 465
Grab Max. Height mm 690
Grab Middle Height mm 615--540
Foks leg (length*width) mm 150*55
Straddle inner Width mm 450
Staddle outline Width mm 750
Straddle Length mm 750
