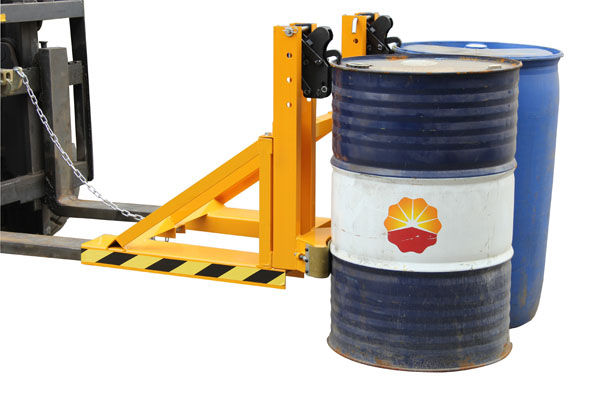

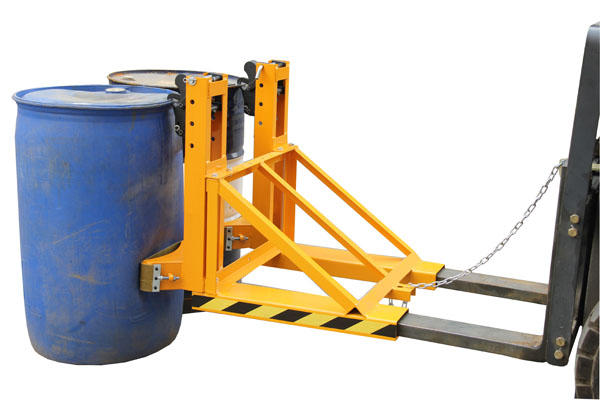

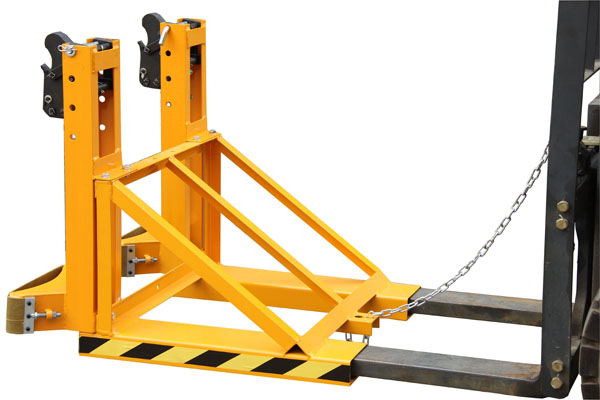

Name:DG1000C Single Gator Grip Heavy Duty Forklift Mounted Drum Grab
Model:DG1000C
Product Introduction:1. With the help of heavy duty Single Black Eagle-Grip automatic clamping mechanism for handling steel and plastic drums in high volume applications. 2.The clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections. 3. Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration during driving. 4. Positive action jaws insure safe transporting of drums without damage to drum chimes. 5.Carriage mounted models are available to mount directly on the carriage of most lift trucks for tight aisle applications. 6. Fork mounted models enable lift truck operators to install/remove the attachment in seconds without any tools. Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the lift truck. Fork mounted models can handle 1, 2, 3 or 4 drums simultaneously. 7. Quick adjustable heads allow pickup of various drum heights. Standard heavy duty rubber belt bases support the lower side of the drum eliminating dents or cosmetic marring.

1. With the help of heavy duty Single Black Eagle-Grip automatic clamping mechanism for handling steel and plastic drums in high volume applications.

2.The clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections.

3. Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration during driving.

4.  Positive action jaws insure safe transporting of drums without damage to drum chimes.

5.Carriage mounted models are available to mount directly on the carriage of most lift trucks for tight aisle applications.

6. Fork mounted models enable lift truck operators to install/remove the attachment in seconds without any tools. Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the lift truck. Fork mounted models can handle 1, 2, 3 or 4 drums simultaneously.

7. Quick adjustable heads allow pickup of various drum heights. Standard heavy duty rubber belt bases support the lower side of the drum eliminating dents or cosmetic marring.

Model DG1000C
Capacity kg 500*2
Net Weight kg 71
Overall Size mm 910*760*850
Load Center mm 1150
Grab Min. Height mm 525
Grab Max. Height mm 750
Grab Middle Height mm 675--600
Foks leg (length*width) mm 150*55
Straddle inner Width mm 450
Staddle outline Width mm 750
Straddle Length mm 750
