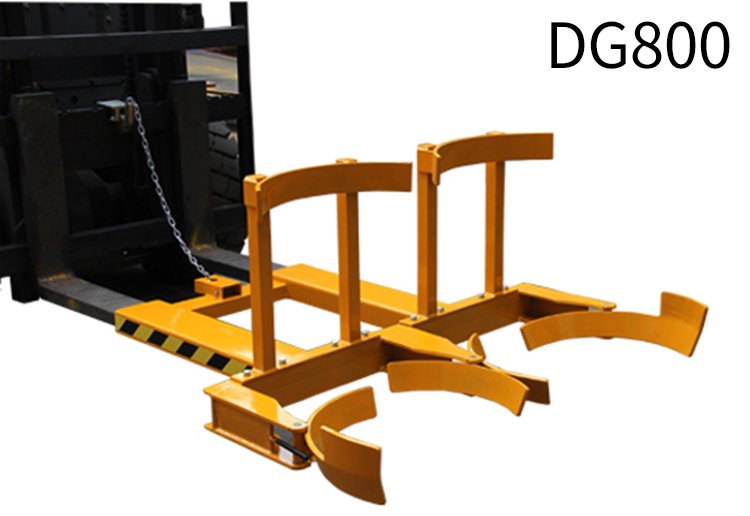

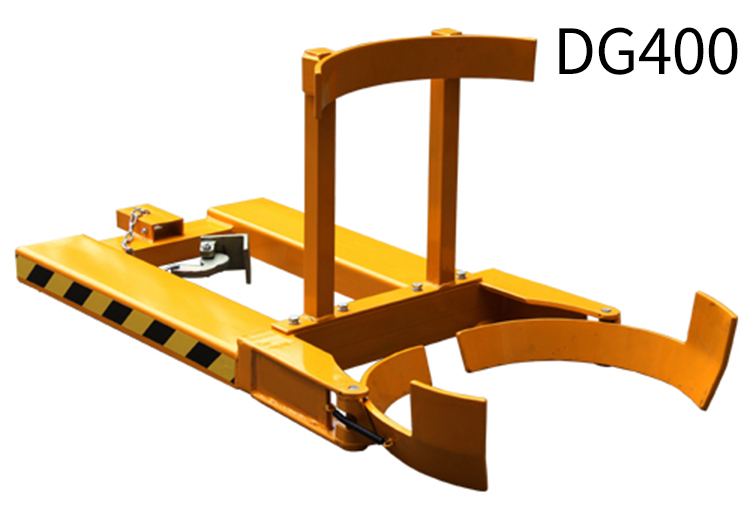

Name:DG400/DG800/DG900 Forklift Mounted Drum Clamp
Model:DG400/DG800/DG900
Product Introduction:Fork Mounted Automatically Easily and quickly lift drums without hydraulic or electric connections. Simply slip onto forks and tighten hand screws. Heavy duty steel construction. Lifts, transports and deposits drums without leaving the driving position. Firm pressure is automatically applied by action of the loaded drum and will be firmly maintained in the same position until being deposited, it is then automatically released.

· Fork Mounted Automatically

· Easily and quickly lift drums without hydraulic or electric connections.

· Simply slip onto forks and tighten hand screws.

· Heavy duty steel construction.

· Lifts, transports and deposits drums without leaving the driving position.

· Firm pressure is automatically applied by action of the loaded drum and will be firmly maintained in the same position until being deposited, it is then automatically released.

Model DG400 DG800
Load Capacity kg 400 800
Drum Size 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic, 110L fibre
Single Fork Pocket size mm 160x70 160x70
Fork Pocket Length mm 755 755
Outer Width of Fork Pocket mm 640 735
Overall Size (LxWxH) mm 1440x640x590 1440x1240x590
Net Weight kg 57 81.7

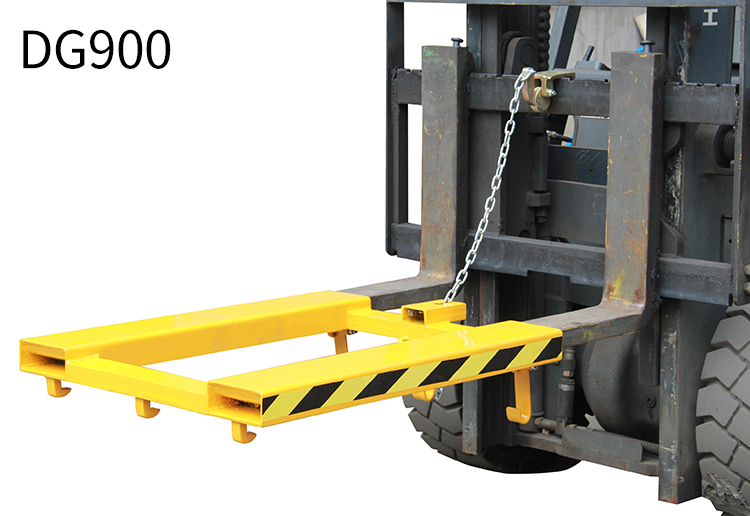

Model Forklift Drum Lifter Horizontal DG900
Capacity kg 900
Net weight kg 35.5
