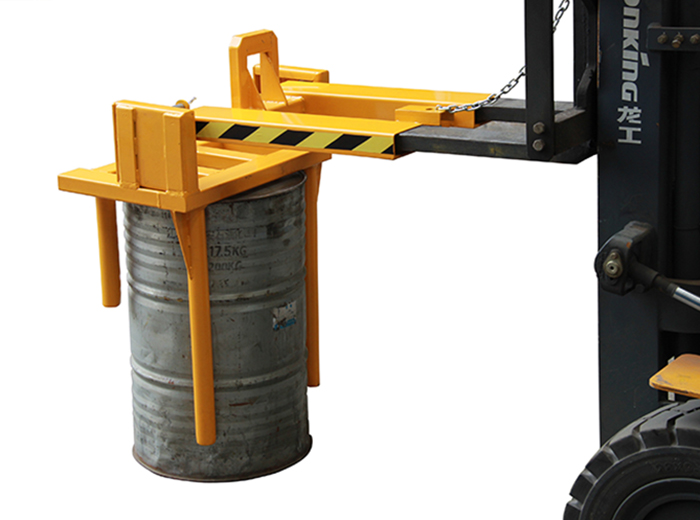

Name:DR400A Drum positioner
Model:DR400A
Product Introduction:1. Allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa;  2. Positive latching system ensures safe handling of drums weighing up to 400kg;  3. Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner, rotate drum to horizontal position;  4. Latching system will engage to allow horizontal positioning of drum;  5. Mechanical operation relies on fork truck to rotate and lift drums; 6. Units now feature a welded spacer to protect drum fixtures from damage when rotating; 7. It is widely applied to transport, lift and stack the horizontal drums in the fields of chemical, food and medicine industry;

1. Allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa;
2. Positive latching system ensures safe handling of drums weighing up to 400kg;

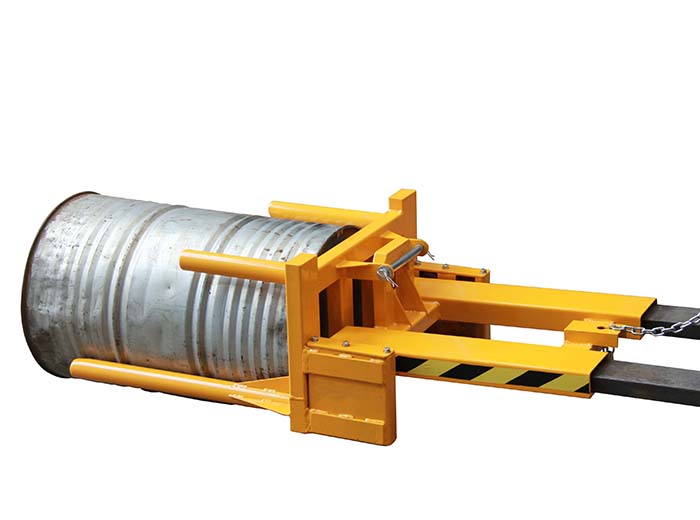

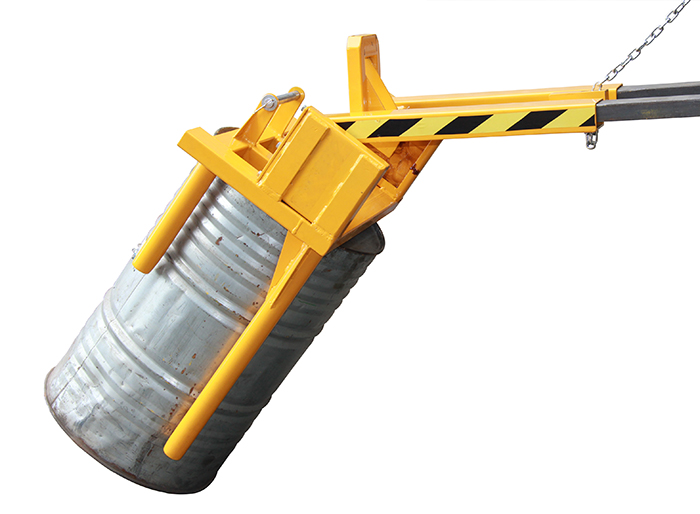

3. Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner, rotate drum to horizontal position;
4. Latching system will engage to allow horizontal positioning of drum;
5. Mechanical operation relies on fork truck to rotate and lift drums;
6. Units now feature a welded spacer to protect drum fixtures from damage when rotating;
7. It is widely applied to transport, lift and stack the horizontal drums in the fields of chemical, food and medicine industry;
Model DR400A
Load capacity kg 400
Net weight kg 85
Outline dimension mm 1600*750*480
