Name:DL500A vertical drum lifter
Product Introduction:DL500A vertical drum lifter Drum Lifter has same application as crane, electric hoist and chain hoist. Drum Lifter has various application for lifting if large and small steel drum without lid, or even for liquid or soild, the different shaped or transformed steel boxes. DO NOT exceed working load limit. Up-right lifting would be applicable by one hand operation if spring will be off. As general usages, there is an example to use steel drum to cut half or adequated size to use. In such case of no edge (portion of drum) appearing on grip section, there is risk for GRABS to slip or come off. But in this case, grips edges would be welded or bolted reinforce- ments as shown right.

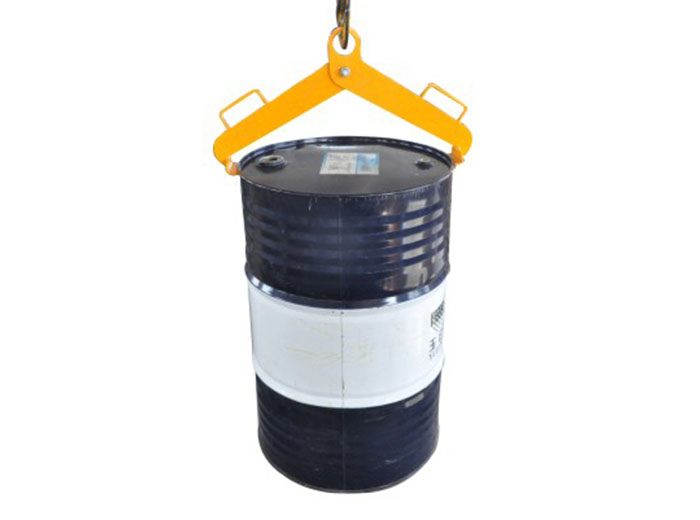

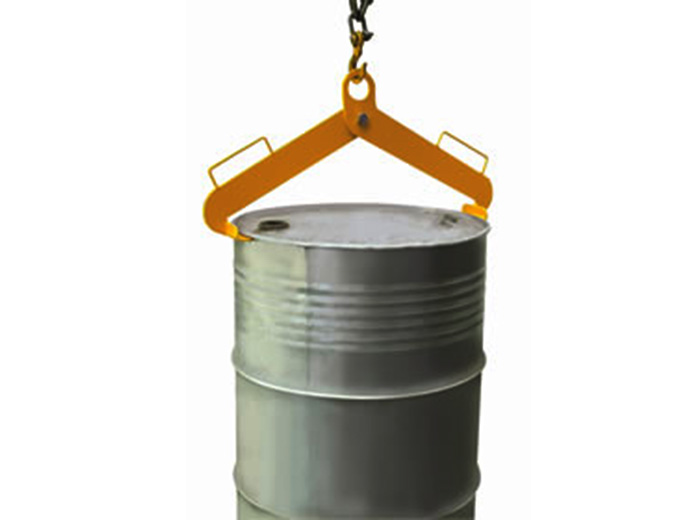

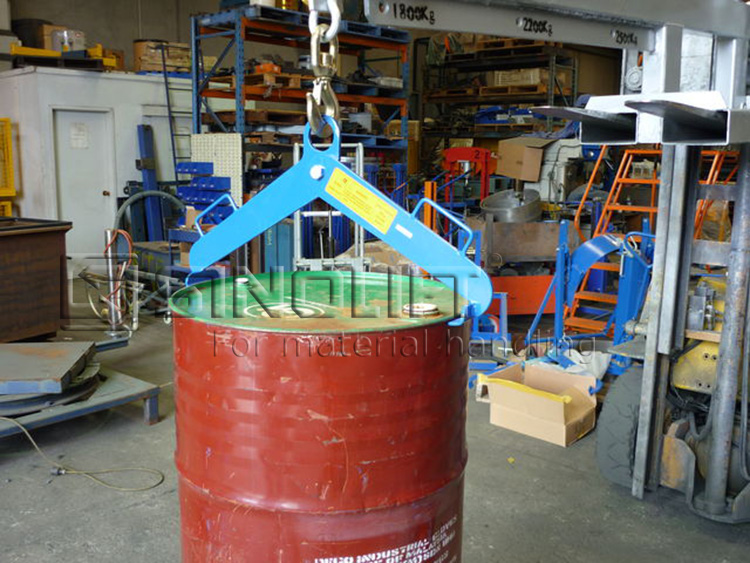

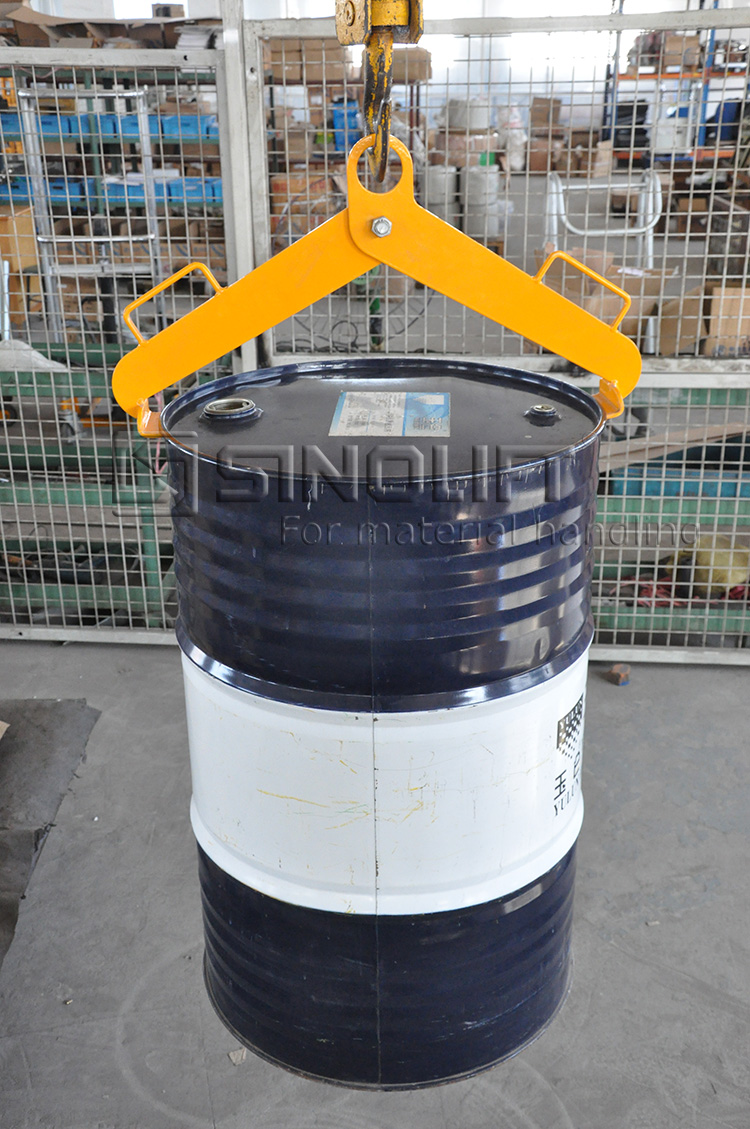

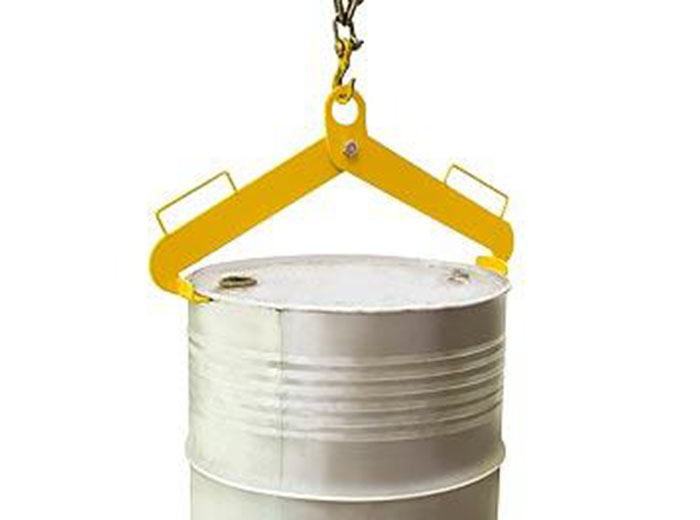

Vertical Drum Lifter  Model: DL500A


1.DL500A is ideal for lifting and handling steel drums up to 500 kg vertically.

2. It is to be used in conjunction with an overhead crane or fork truck fitted with a Tyne Hook or Jib Attachment.

3.Heavy gauge steel construction: robust.

4. Double leg lifting clamp for load control while lifting drums safely in the vertical position

Lift drums safely and securely

Model  DL500A
Capacity  kg 500
Drum size 30 ~55 gallon (Ø450x700~Ø572x900) steel
Net Weight  kg 5
