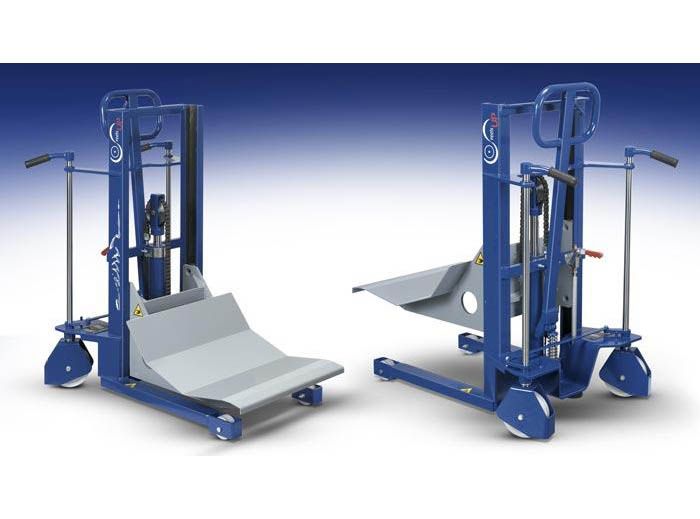

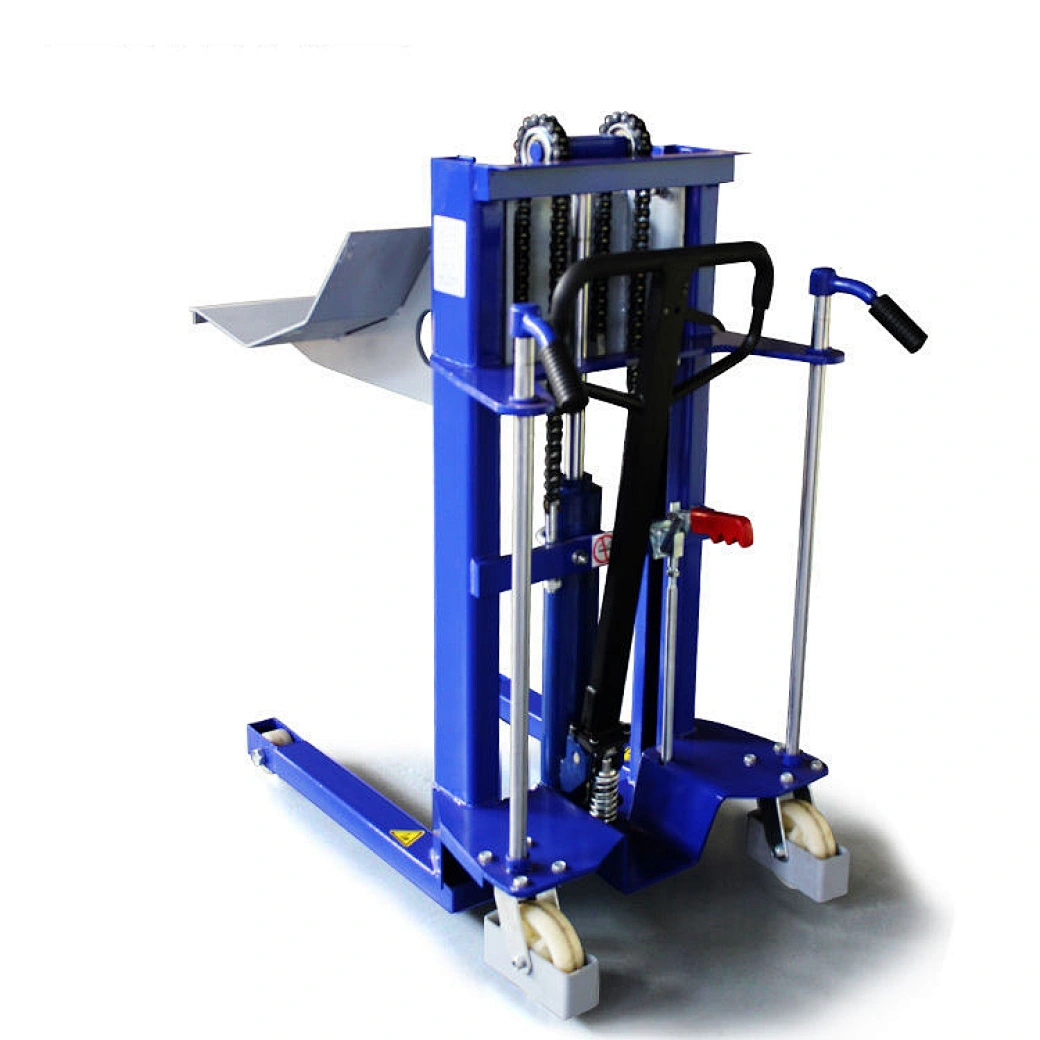

Name:CTY1000-M700 Manual Reel Stacker
Model:CTY1000-M700
Product Introduction:CTY1000-M700 Manual Reel Stacker

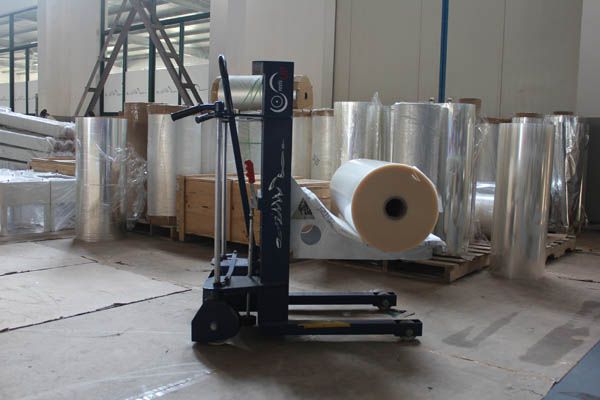

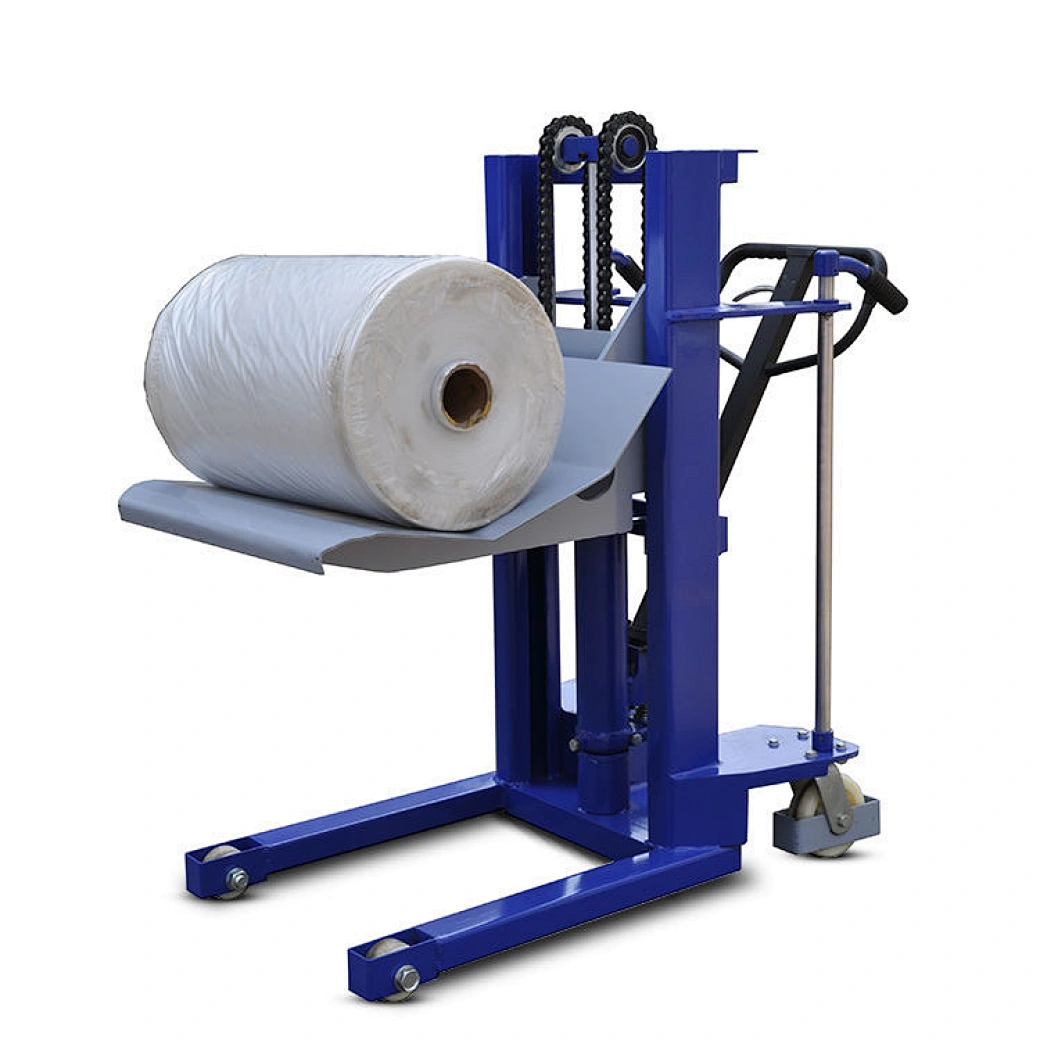

REEL LIFT STACKER
For lifting of Plastics Rolls, Paper Reels, Cloth Rolls, etc.
Ideal for handling anything which rolls and required to lift.
Available capacity: From 250 kgs to 1500 Kgs.
Lifting Height: From 600 mm to 2000 mm.
Available options: Electric operated & manual operated.







Model   CTY1000-M700
Load Capacity kg 1000
Frame Length mm 1108
Frame Height mm 1180
Frame Width mm 660
Weight mm 208
Real Max. Width:  mm 1400
Real Max.Diameter mm 800
Max. Weight of real kg 1000
Platform Max. Elevation mm 854
Min.Steering Angle. mm 880
