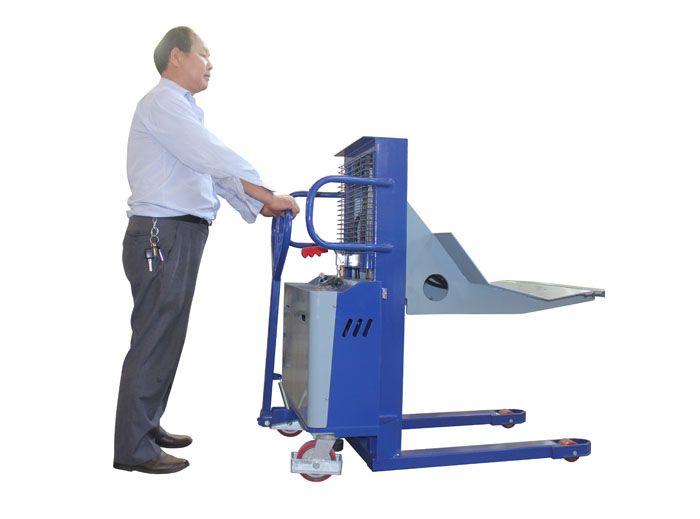

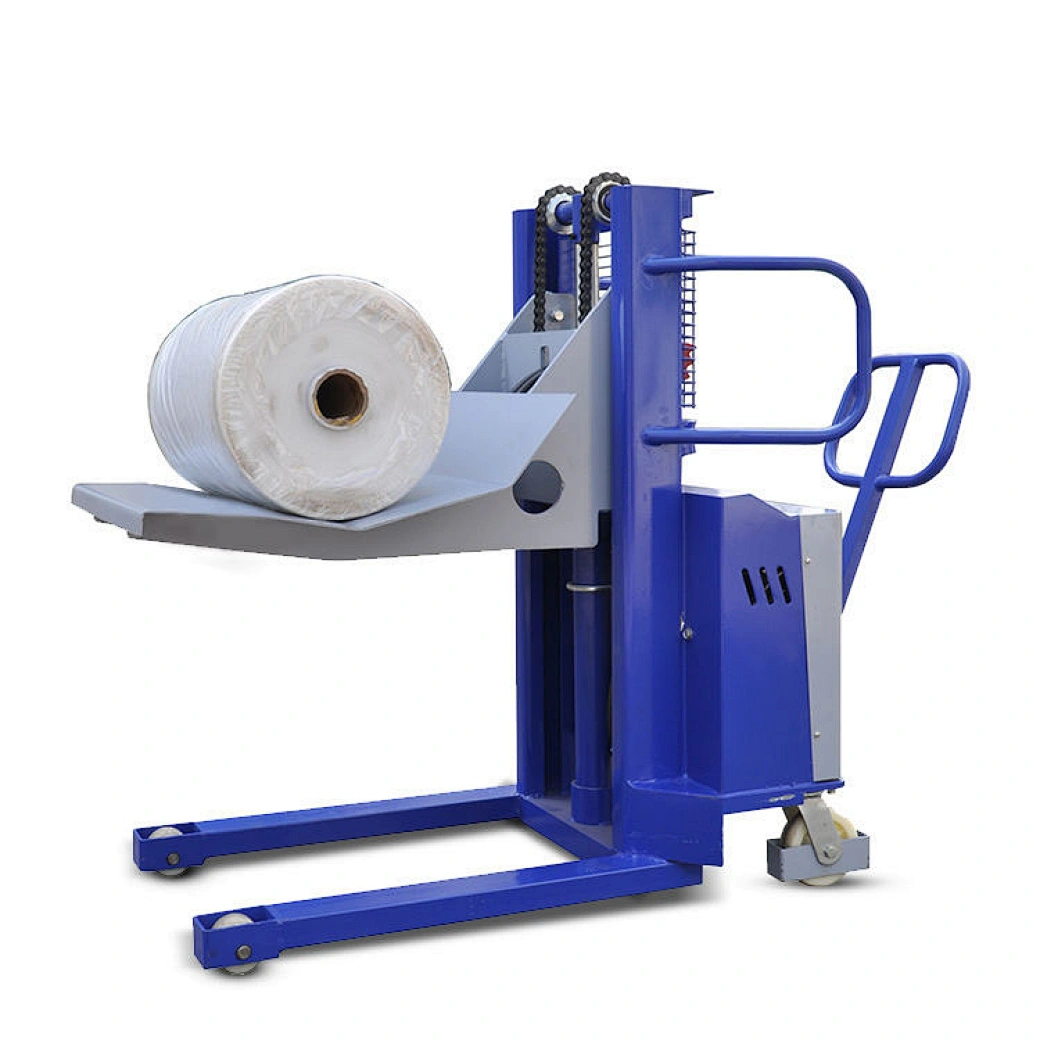

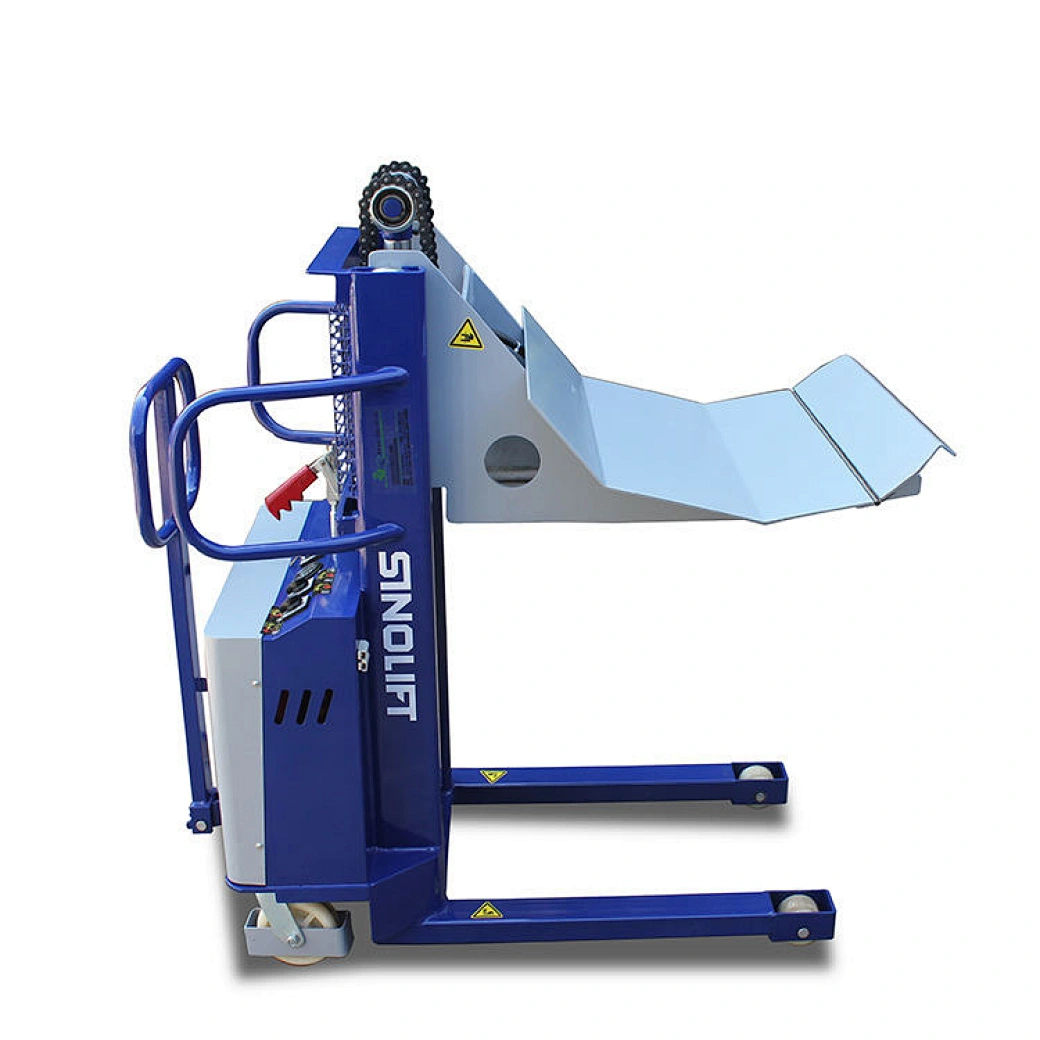

Name:CTD1000-M700 Semi-Electric Reel Stacker
Model:CTD1000-M700
Product Introduction:CTD1000-M700 Semi-Electric Reel Stacker

The semi-electric roll stacker is typically used to stack and transport casing film rolls.
Technical Parameters of Semi-electric roll stackers;

1. Load capacity: 1000kgs
2. Lifting height: 1600mm
3. Overall length: 1310mm
4. Overall width:720mm
5. Fork height lowered: 200mm
6. Min. ground clearance: 30mm
7. Min. aisle width: 2300mm
8. Battery: 12V/120AH
9. Front wheel size: 80x70mm
10. Rear wheel size: 180x50mm

As a professional manufacturer of semi electric roll stacker in China, Sinolift also provide many other high-quality products for clients worldwide, including electric pallet truck, electric stacker, electric reach truck, electric tow tractor, scissors lift, aerial working platform, manual warehouse equipment, customized material handling truck, etc.  Most of our products have passed the CE certification and ISO9001:2008, and they have been well received in as many as 40 different countries and regions. OEM and ODM cooperation relationships are welcome. If you need customized stacker and special machines, please contact us freely.
