Home >> Products >> LZ800/LZ1100 Heavy-duty Multifunctional Drum Tongs

Name：LZ800/LZ1100 Heavy-duty Multifunctional Drum Tongs
Model：LZ800/LZ1100
Product Introduction：* Safe and reliable operation with 365kg(800lbs)/ 500kg(1100lbs), heavy-duty, self-locking and design of 360° flipping * Precise screw rod and safe lock frame; for 30~55 gallon steel, 210L plastic and other drums can be clamped * Design of fork slot can be suitable for crane and forklift

Features:

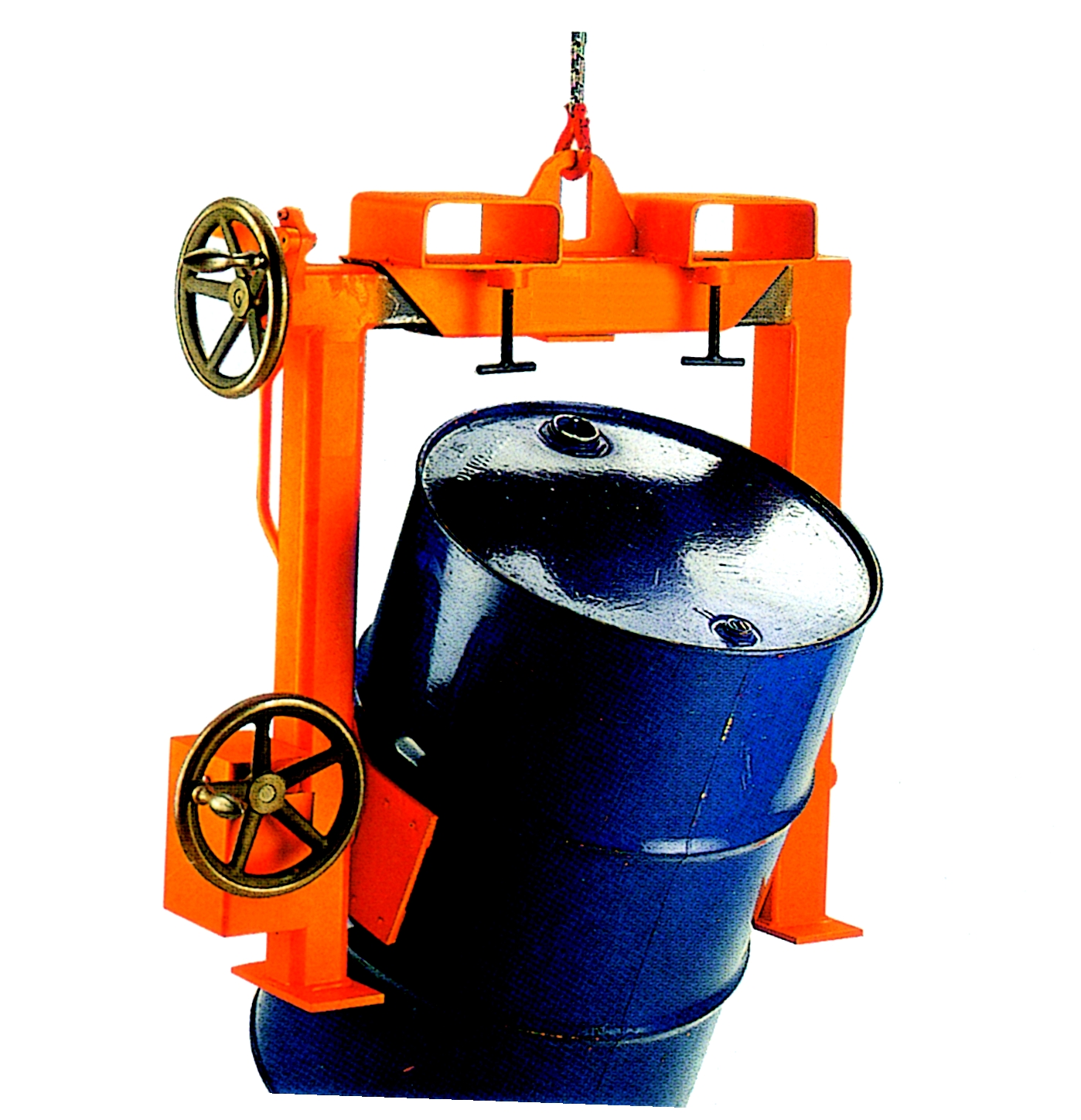

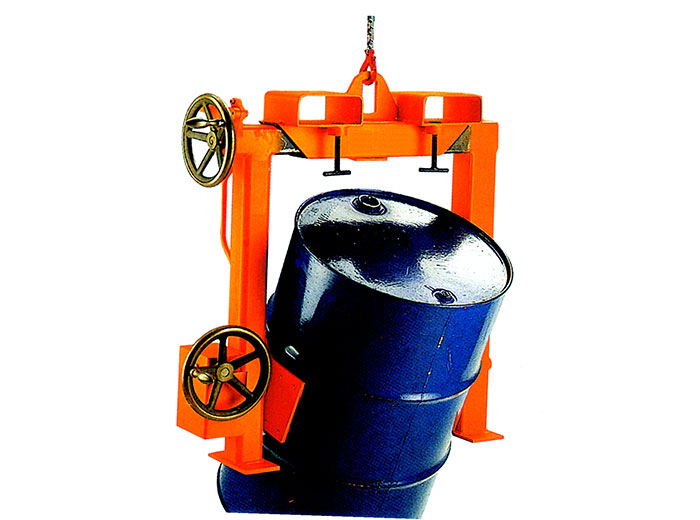

1. Designed primarily for sitting under an overload crane for decanting the contents of 30~55 Gallons steel drums or 210 litre ‘L’ and ‘XL’ plastic drums.

2. The drum locks positively into the attachment using a single over centre clamp and

steel girdle.

3.Rotation is by means of a crank handle, through a heavy duty gearbox.

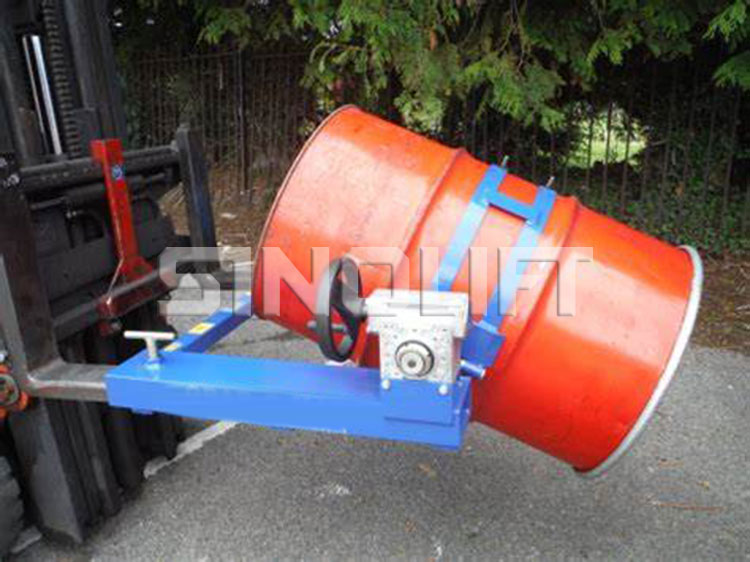

4. Fitted with fork pockets for alternative use with a fork lift truck.

Model		LZ800	LZ1100
Capacity	kg(lbs)	365(800)	500(1100)
Drum Size	mm	30~55 gallon steel, 210L plastic
Flipping Angle		360°
Net Weight	kg	78	78
