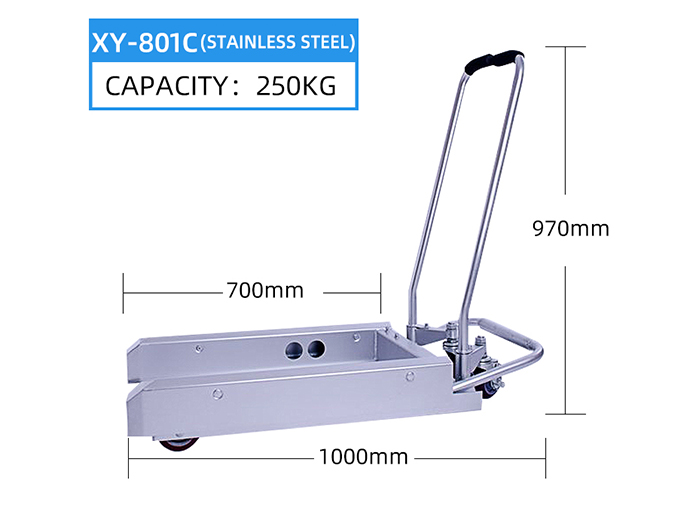

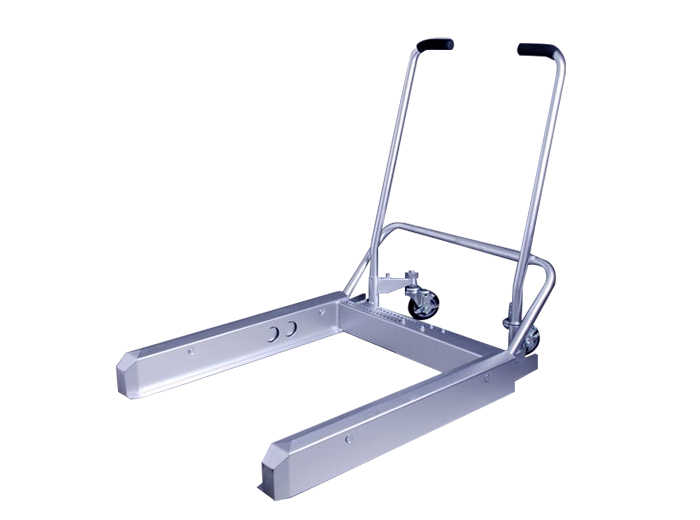

Name:XY-801C Stainless steel forklift euro container trolley ( fork width 310-510 mm)
Model:XY-801C
Product Introduction:1.Convenient loading and unloading, time saving and labor saving. 2.Special cart for turnover box & Frame 3.Adjustable Fork hand 4.Easy transport, easy carry

Operation:

l Pulling the lift to the bottom of the plastic box

l Pushing the pedal by foot , the plastic box can be lift up

l Pulling box to the place you want and pushing the pedal again, the plastic box can be lift down to the floor


Details:

Adjustable Fork: Loosen the screws, choose the desired position and fix it

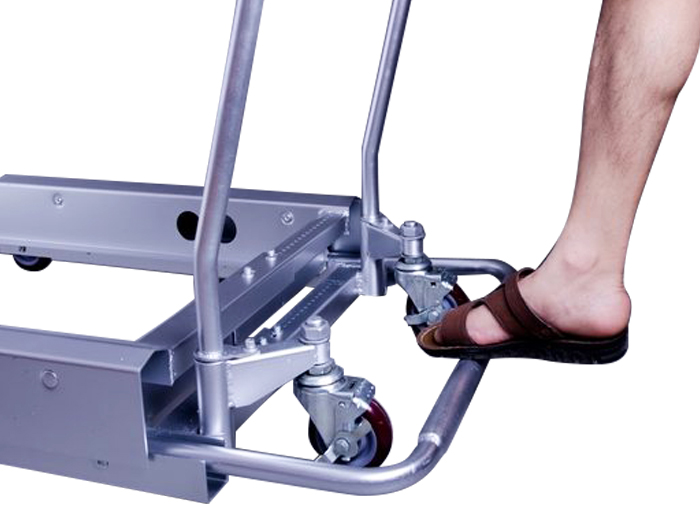

Pedal design: Mechanical snap design locking height

Baking Paint Fork:

The fork fits into the bottom of the turnover box for easy entry. The high-temperature baking paint is smooth, strong and wear-resistant.

Polymmonia CASTOR: Light driving resistance is small, turnover is flexible, wear-resistant and quiet, long serivce life, does not hurt the floor.


Model XY-801D XY-802D XY-803D XY-801C (stainless steel)
Rated capacity kg 250 250 250 250
Landing Height mm 5.5 5.5 6 6
Height From The ground(When the fork is raised) mm 42 42 42 42
Fork Width mm 310-510 380-620 575-710 340-560
Fork Length mm 600 800 1000 700
Full Height mm 970 970 970 970
Net Weight kg 25 30 38 31
Front Tyre mm Φ76 Φ76 Φ76 Φ76
Rear Tyre mm Φ75 Φ75 Φ75 Φ75
