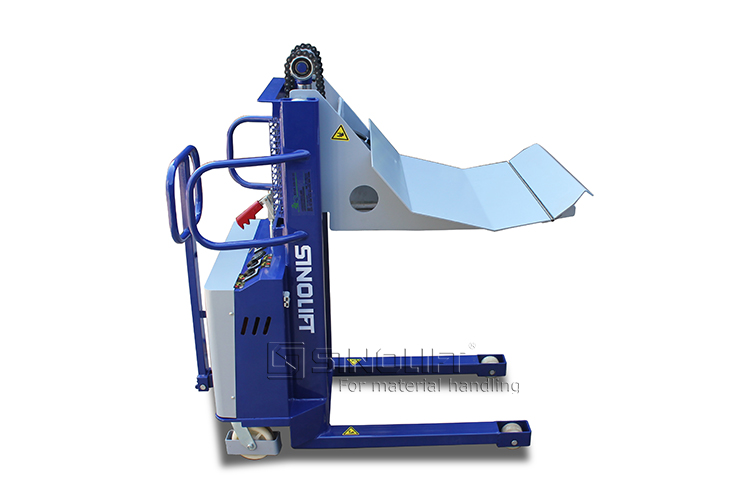

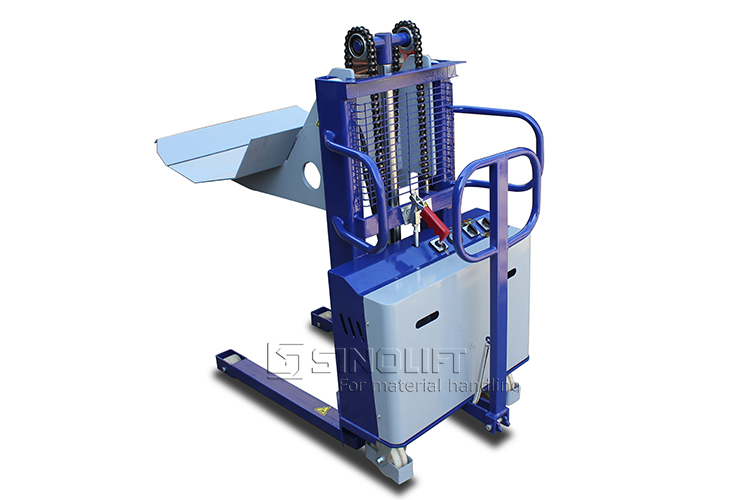

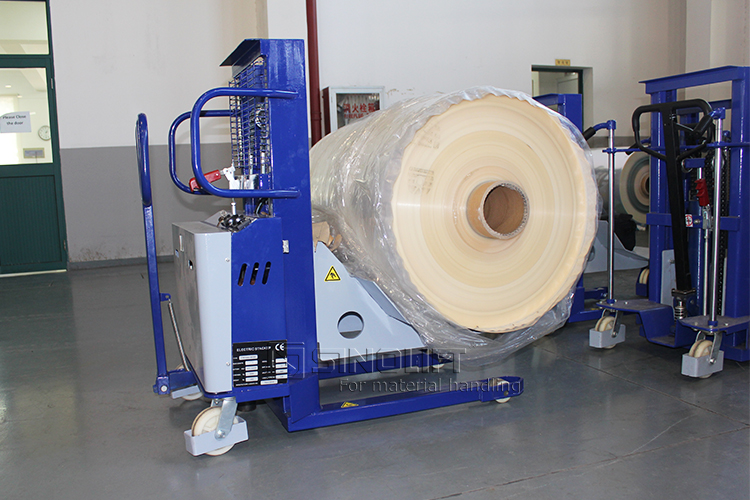

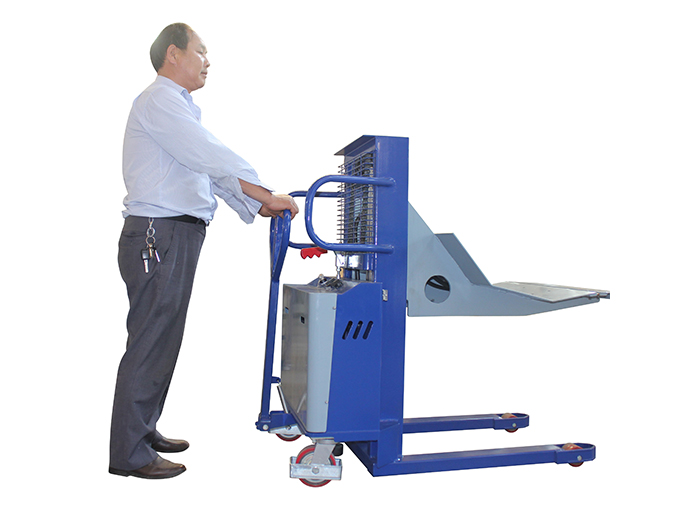

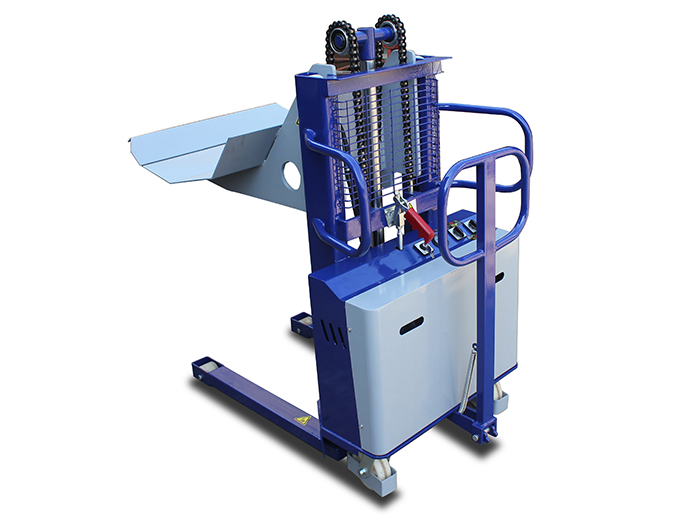

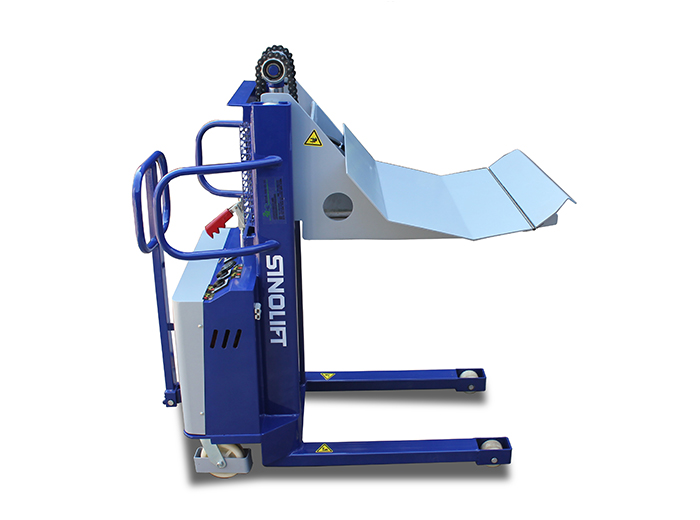

Name:CTD1000-M700 Semi-electric paper roll lifter
Model:CTD1000-M700
Product Introduction:The bracket pallet with electronic lock-and-protect function is designed for handling cylindrical cargo, which can effectively prevent the rolling of goods.

1. The bracket pallet with electronic lock-and-protect function is designed for handling cylindrical cargo, which can effectively prevent the rolling of goods.


2. Weight shifter can replace the rollers used in traditional handling equipment. Easy to use, save time and effort, no exhaust, low noise, load-bearing, easy to operate, high security features, particularly suitable for paper, textile, Chemical, pharmaceutical, electronics, machinery and other industries in the interior or warehouse inside the paper tube, yarn roll, Pan head, film, foil packaging, woven bags, such as special cargo handling, loading and unloading. It is an ideal tool for transporting heavy equipment.


3. Fu Pao in Europe and the United States the latest safety standards, buffer, pressure regulator valve, anti-collision and emergency switch, such as multiple safety devices to ensure the safety of human vehicles.


4. Precision frame, small turning radius, operation, in the narrow work space can be effectively safe operation.

Models CTD1000-M700
Load kg. 1000
Max Lift of the Plate. E mm. 841
Barycentre G mm. 500
Min. Steering Range R mm. 1160
Max. Diam. Bobine D mm. 1000
Max. Width Bobine L mm. 1500
Frame Height C mm. 1230
Frame Width B mm. 720
Frame Length A mm. 1310
Wheelbase P mm. 925
Front Wheels / x largh mm. 78x70
Rear Wheels / x largh mm. 180x50
Weight Kg. kg. 285
