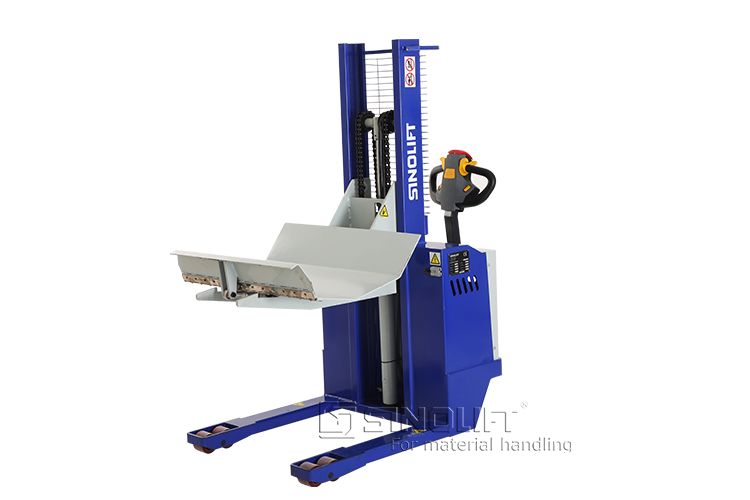

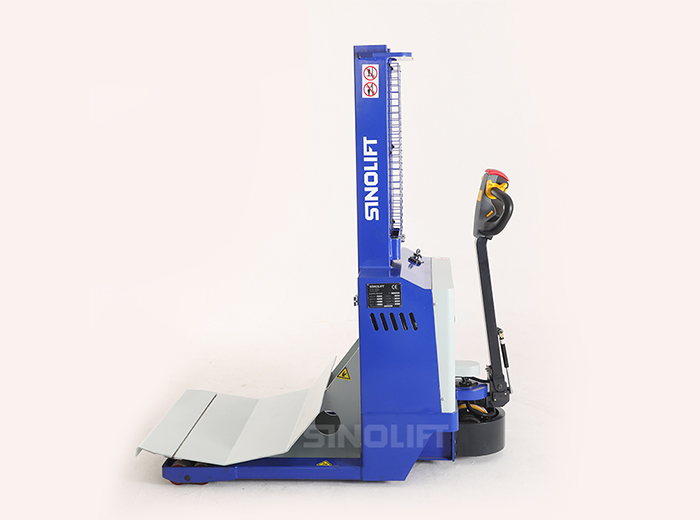

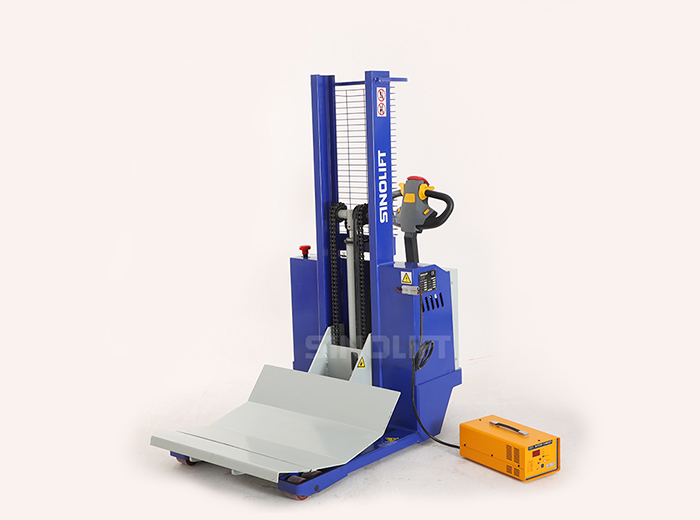

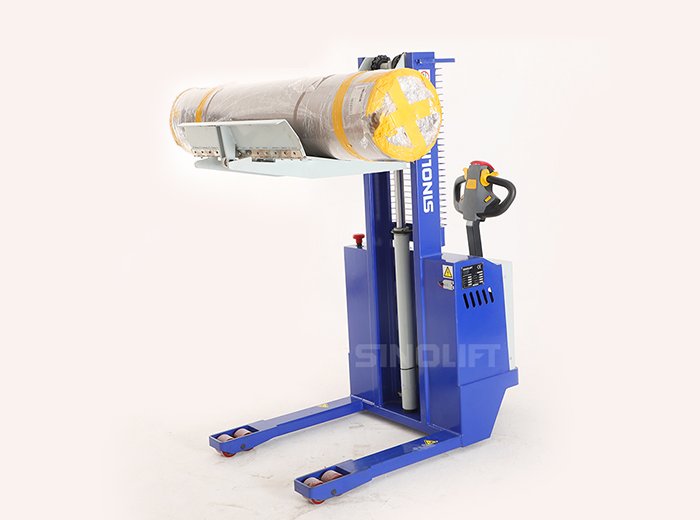

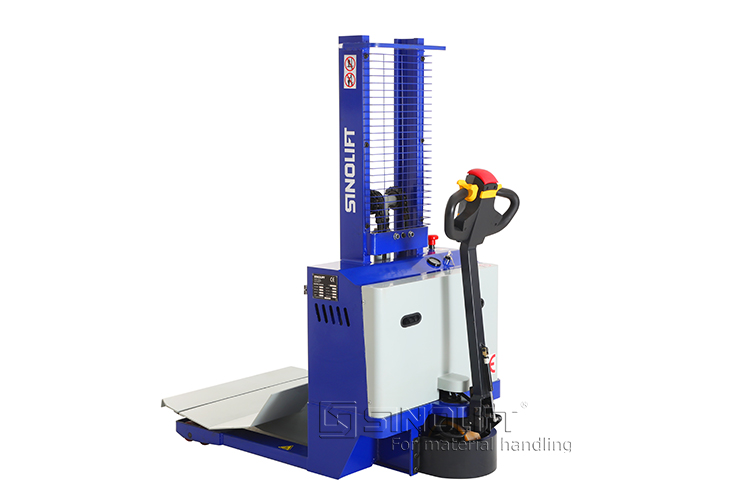

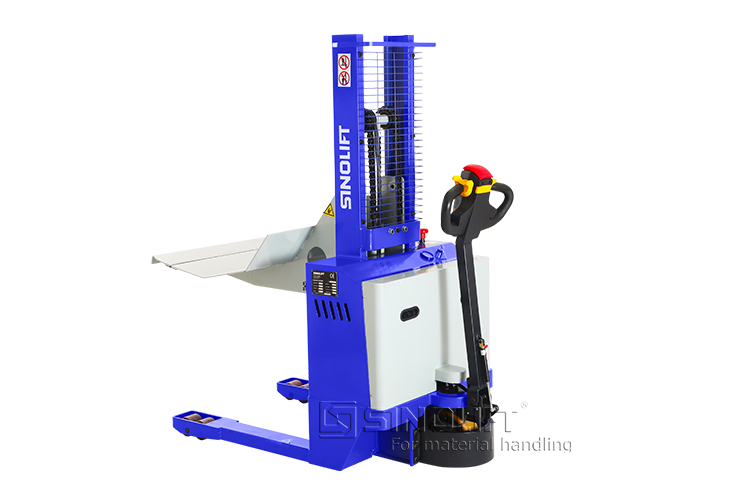

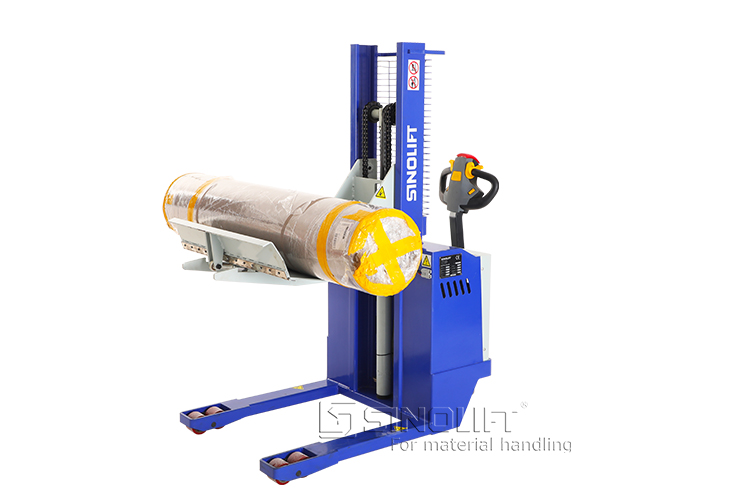

Name:CDD1000-M700 Full electric paper roll lifter
Model:CDD1000-M700
Product Introduction:The electronic coil lifting forklift trucks of the CDD line are produced in 2different versions, with a lifting capacity of 1,000 and 1,500 kg. Especially suitable for handling coils of large diameter, all the controls are located on the handle.

The electronic coil lifting forklift trucks of the CDD line are produced in 2different versions, with a lifting capacity of 1,000 and 1,500 kg. Especially suitable for handling coils of large diameter, all the controls are located on the handle.

Operator’s anti-crushing device. Protecting the drive wheel. Locking the engine which acts as a parking brake. Rechargeable batteries powered with built-in battery charger. Fall valve built-in into the cylinder.

In case of failure of the hydraulic pipes, the coil holder is not lowered.

Single-acting lifting hydraulic cylinder. Coil holder flatbed equipped with a stop plate
activated through a hydraulic control that allows keeping the coil locked
during transport.

Emergency device for stopping the machine with pushbutton control.

All models can be equipped with an (optional) lateral displacement

Technical Data
Standard Model CDD1000-M700
Load Capacity 1000 Kg
Max Lift of the Plate 1300(800-1500) mm
Load Centre 500 mm
Min. Steering Range 1456 mm
Max. Diam. Bobine Φ800 ~ 1400 mm
Max. Width Bobine 1500 mm
Frame Height 1607.5 mm
Frame Width 800 mm
Wheelbase 1015 mm
Min. ground clearance 140 mm
Battery 24V/150Ah
Weight 350 Kg
