Home >> Products >> NF series hand pallet truck

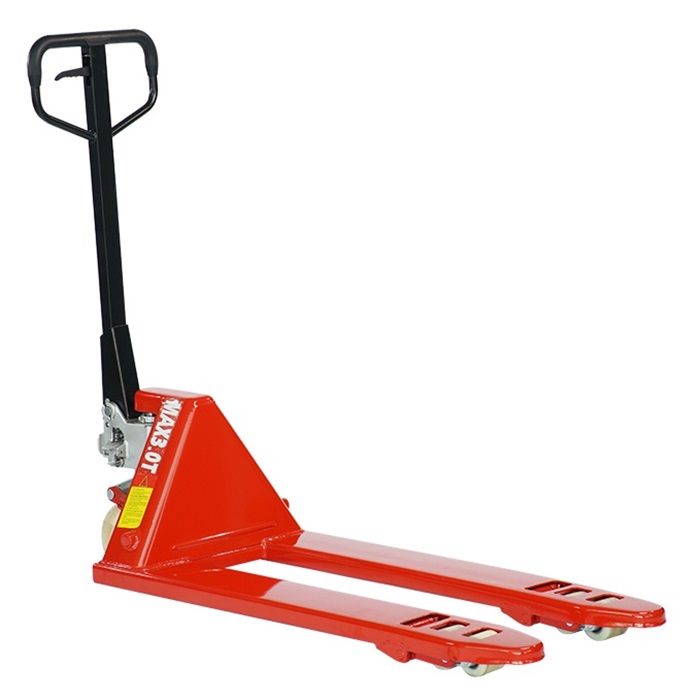

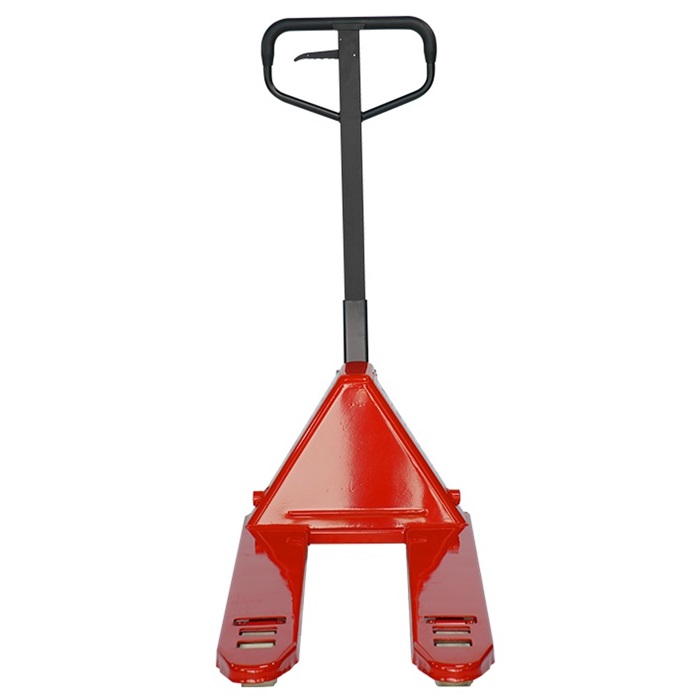

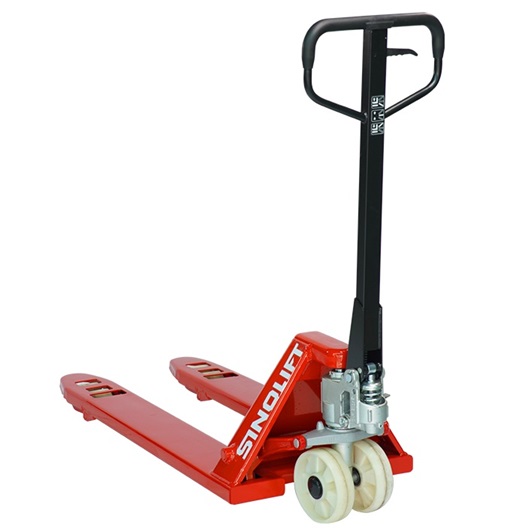

Name：NF series hand pallet truck
Model：NF
Product Introduction：SINOLIFT hand pallet trucks thrive in a variety of applications, being used by operators of all experience levels. Maneuverable and easy-to-us, these hand pallet trucks are a dependable source for moving materials in your application.

SINOLIFT hand pallet trucks thrive in a variety of applications, being used by operators of all experience levels. Maneuverable and easy-to-us, these hand pallet trucks are a dependable source for moving materials in your application.

Option:

1) Variety Size of Polyurethane, Nylon and Rubber Steer wheel, Single or Tandem Load roller of Polyurethane, Nylon and Iron

2) Stainless Steel , Zinc or Galvanized type.

3) Be equipped with Scale, Load Bracket, Brake and etc..

4) Super Long and Wide Forks Size, Roll Pallet Truck and Rough Terrain Pallet Truck

Model	Rated Capacity	Fork Width	Fork Length	Min. Fork Height	Max.Fork Height	Wheel			Service Weight
	Q	W	L	H1	H2	Steering Wheel A	Single Load Wheel B	Tandem Load Wheel B	Service Weight
	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
NF25-510	2500	520	1070	80	200	Ø180×50	Ø78×100	Ø78×70	62
NF25-712	2500	685	1220	80	200	Ø180×50	Ø78×100	Ø78×70	70
NF30-510	3000	520	1070	80	200	Ø180×50	Ø78×100	Ø78×70	70
NF30-712	3000	685	1220	80	200	Ø180×50	Ø78×100	Ø78×70	75

Low Profile
Model	Rated Capacity	Fork Width	Fork Length	Min. Fork Height	Max.Fork Height	Wheel			Service Weight
	Q	W	L	H1	H2	Steering Wheel A	Single Load Wheel B	Tandem Load Wheel B	Service Weight
	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
NFL25-510	2500	520	1080	65	160	Ø180X62	Ø65X100	Ø65X70	62
NFL25-712	2500	685	1230	65	160	Ø180X62	Ø65X100	Ø65X70	70
