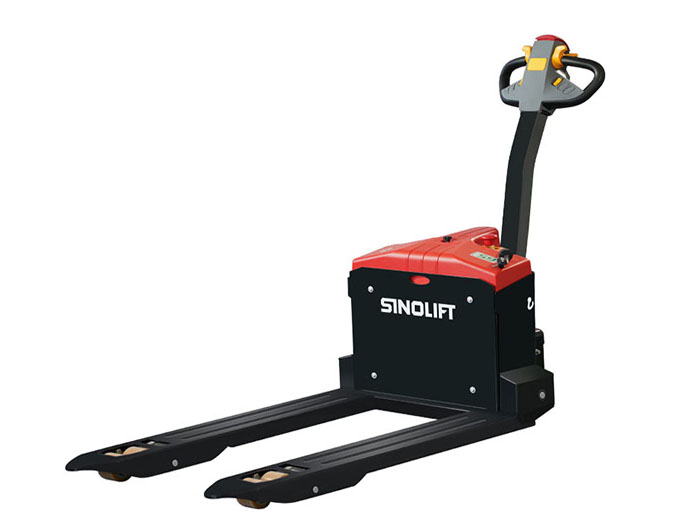

Name:EPT20-15ET EPT20-20ET EPT20-30ET Electric Pallet Truck 1.5-3 Ton
Model:EPT20-15ET / EPT20-20ET / EPT20-30ET
Product Introduction:Electric Pallet Truck 1.5 ton - 3 ton

1.Creep speed.

The Sinolift allows the truck to manoeuvre in confined areas with the tiller in an upright position, normally one of the braking zones. By activating the Creep speed button, easily accessible by either hand, a top speed of 1.5 km/h is set for the truck. The operator can then freely operate and easily manoeuvre the truck on a tail-lift while loading or unloading.

2.Power and Performance.

Curtis solid state controllers provide smooth acceleration and seamless directional control. Its Regenerative Braking feature adds energy back to the battery to improve efficiency.With AC Power, you will benefit from faster acceleration,more torque, higher efficiency, and lower maintenance

costs due to the brush-less design.

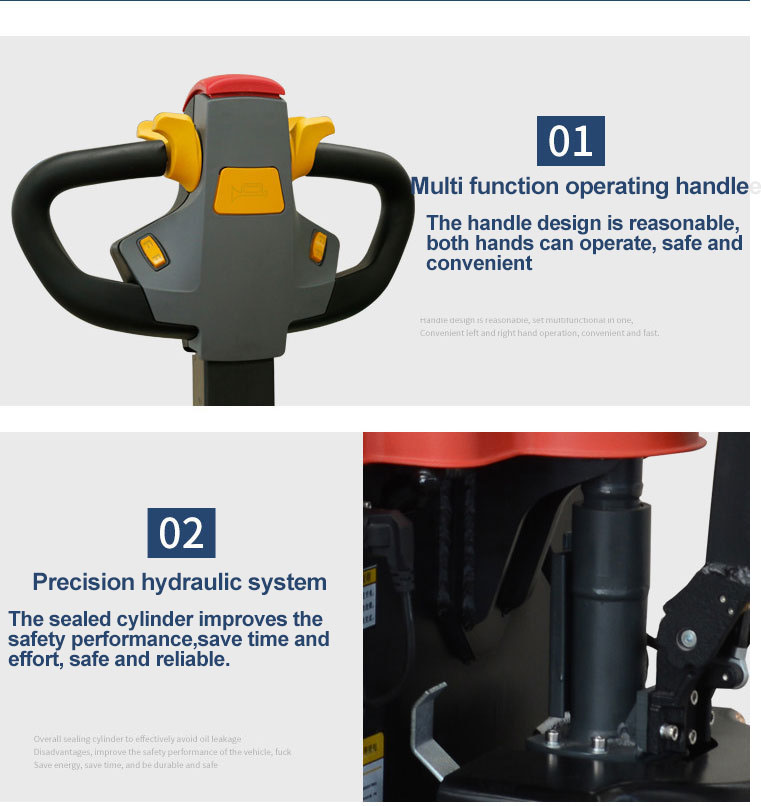

3.Long tiller & low mounting.

A long tiller arm with a low mounting point ensures a large safety clearance between operator and chassis, as well as providing light steering

for sharp corners.

Model EPT20-15ET EPT20-20ET EPT20-30ET
Drive unit Electric
Rated capacity Kg 1500kg 2000kg 3000kg
Type Operation Pedestrian
Load center mm 600mm
Tyre type driving wheels(diameter X width) PU/PU
Tyre size, driving wheels(diameter X width) mm Φ210X75 Φ210X75 Φ250X80
Tyre size, loading wheels(diameter X width) mm Φ80X60 Φ80X60 Φ85X65
Lift height mm 195 195 200
Lowered height mm 80 80 85
Overall length mm 1638
Overall width mm 560(685)
Fork dimensions mm 50X150X1150 50X150X1150 160X55X1150
Distance fork arms mm 560/685
Turning radius mm 1485 1485 1780
Travel speed,laden/unladen k/mh 2,5/3
Lift speed,laden/unladen m/s 10mm/time
Lowering speed,laden/unladen m/s Controlable
Max,Gradeability,laden/unladen mm 2/6
Service bake type Electromagnetic
Drive motor rating S2 60 min kw 0.65 0.75 1.5
Lifting motor power kw 0.84 0.84 1.5
Battery voltage V/Ah 2X12/65 4X12/30 2X12/100
type of drive control DC DC AC
Net weight(including Battery) Kg 164 200 400
