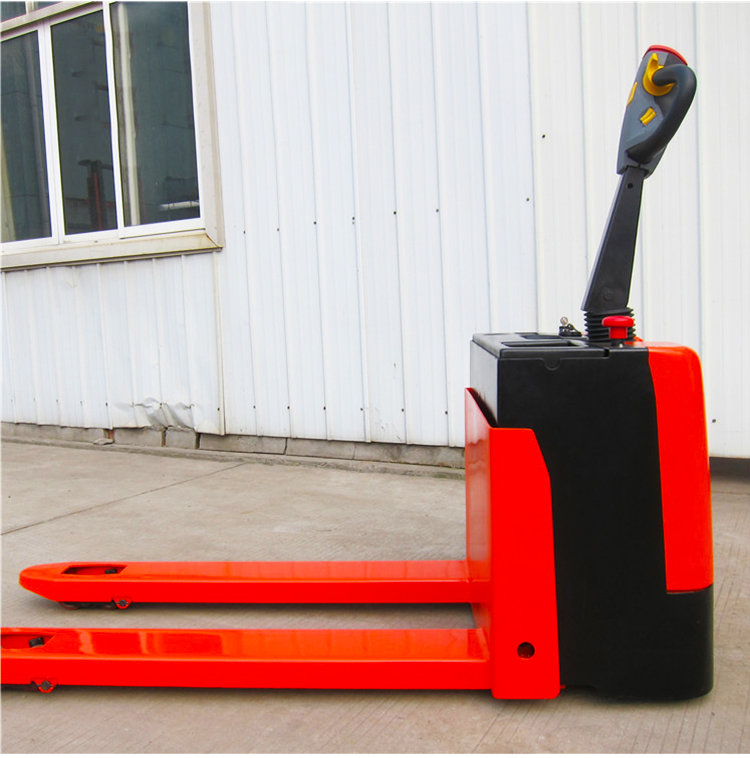

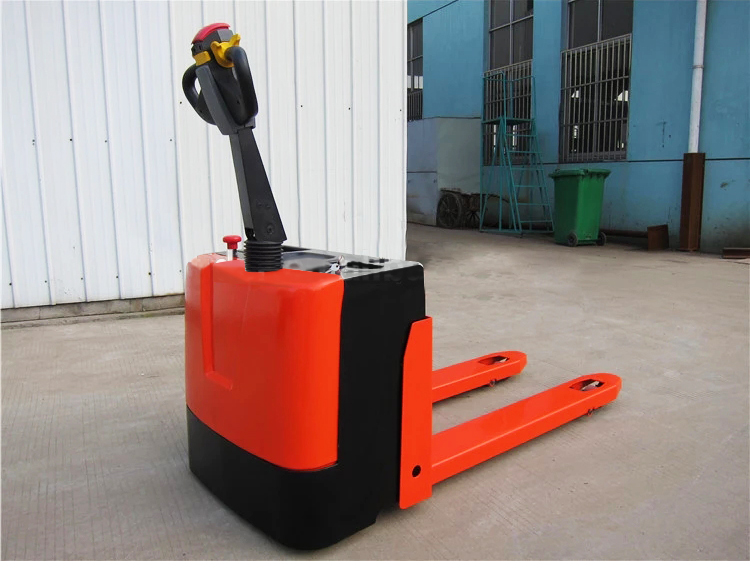

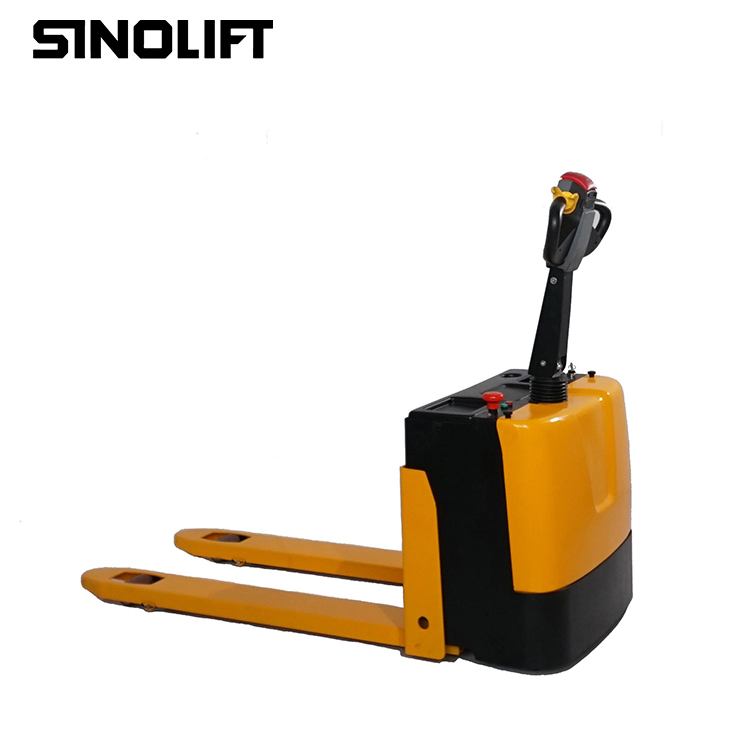

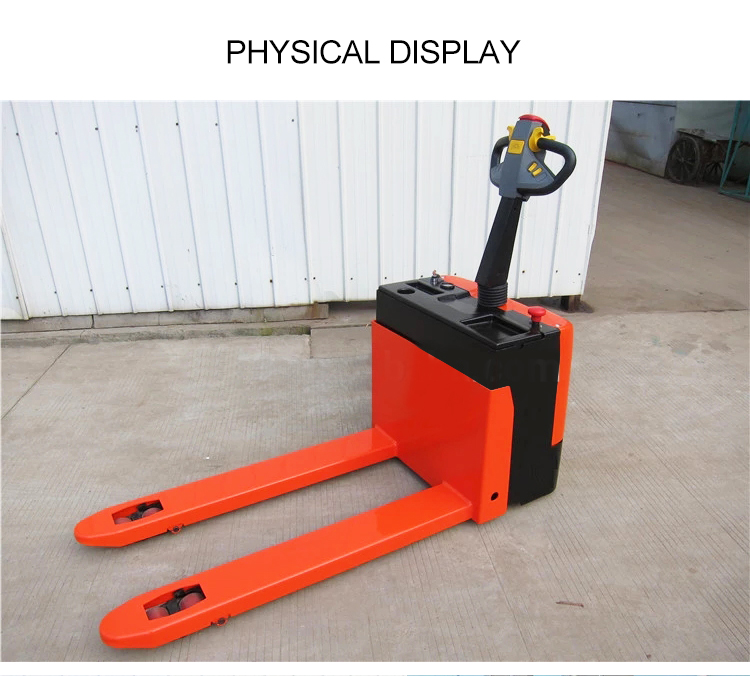

Name：CBD15D Full Power Pallet Truck for easy and quick operation
Model：CBD15D
Product Introduction：

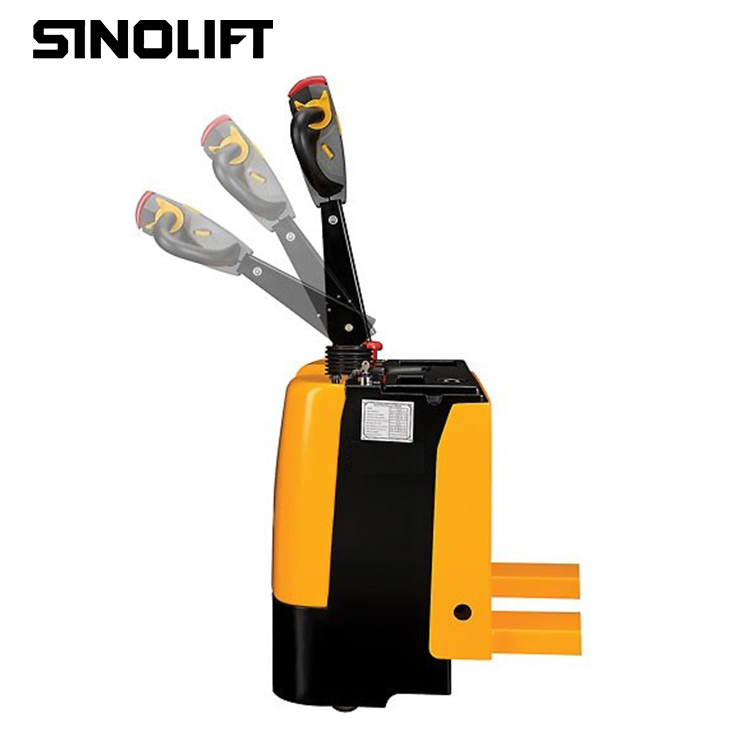

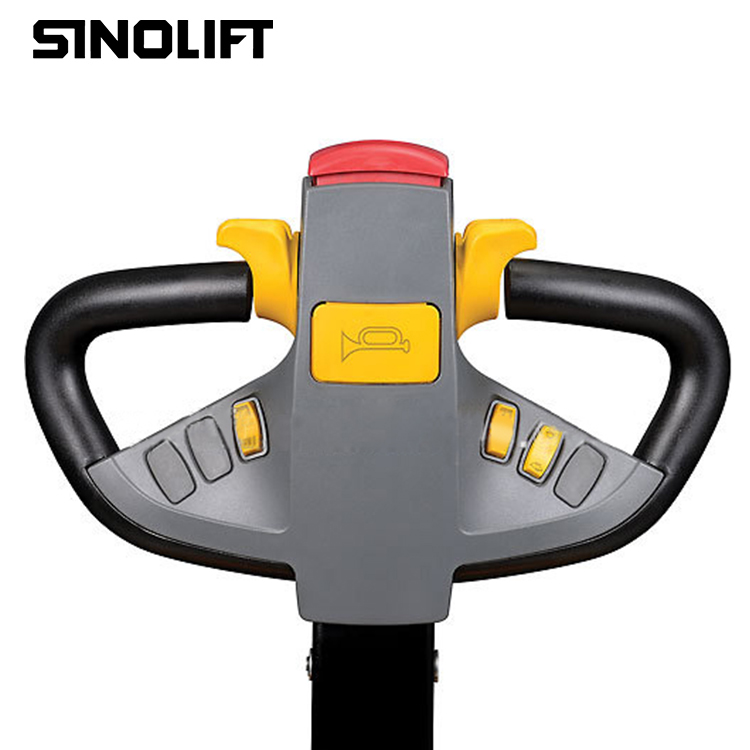

Fully powered pallet truck for easy and quick operation. Includes fingertip raise and lower buttons. Easy-to-operate throttle for forward and reverse direction. Throttle offers infinite forward and reverse speeds. Battery charger is included. Horn is included. Safety belly reverse button is included. Units run off 24V batteries. Model EPT-2547-30 uses two 12V batteries with 70Ah.

Model		CBD15D	Overall width B	mm	720
Operation type		Pedestrian	Fork dimention (s/e/l)	mm	50/160/1200
Load capacity Q	kg	1500	Outside width of forks b1	mm	540/630
Load center C	mm	600	Ground clearance m	mm	30
Wheelbase Y	mm	1280	Min. width of aisle	mm	1865
Wheel material		PU	Steering radius Wa	mm	1465
Driving wheel size	mm	Φ250×80	Travel speed,laden /unladen	km/h	3.5/4.0
Balance wheel size	mm	Φ75×35	Gradeability,laden	%	5
Front wheel size,tandem	mm	Φ78×70	Brake type		Electromagnetic
Front wheel size,single	mm	Φ74×95	Driving motor	kw	0.7
Balance wheel distance b3	mm	485	Lift motor	kw	0.8
Cylinder stroke h3	mm	120	Battery capacity/voltage	V/Ah	95/24
Max. height of forks h2	mm	195/205	Weight of battery	kg	35/51
Min. height of forks h1	mm	85	Net weight	kg	270/285
Overall length L	mm	1665	Electric control		CURTIS1212P
