Name：Sinolift YLD01/YLE01 Electric Straddle leg foldable shop crane
Model：YLD01/YLE01
Product Introduction：

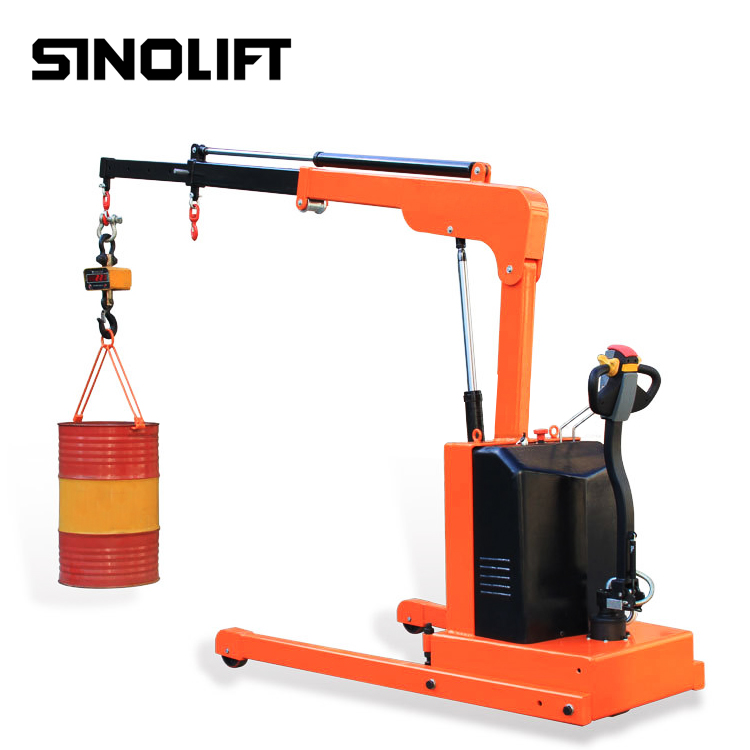

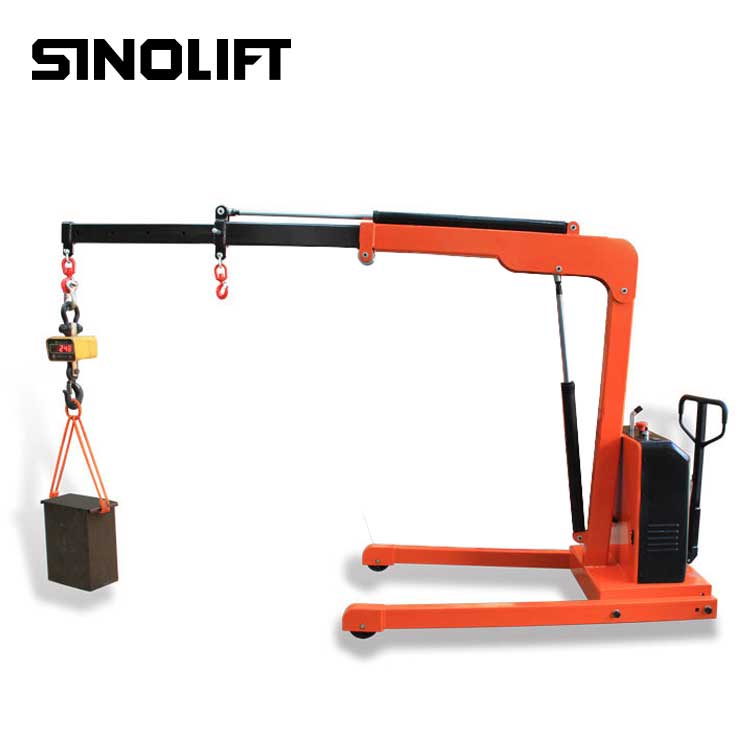

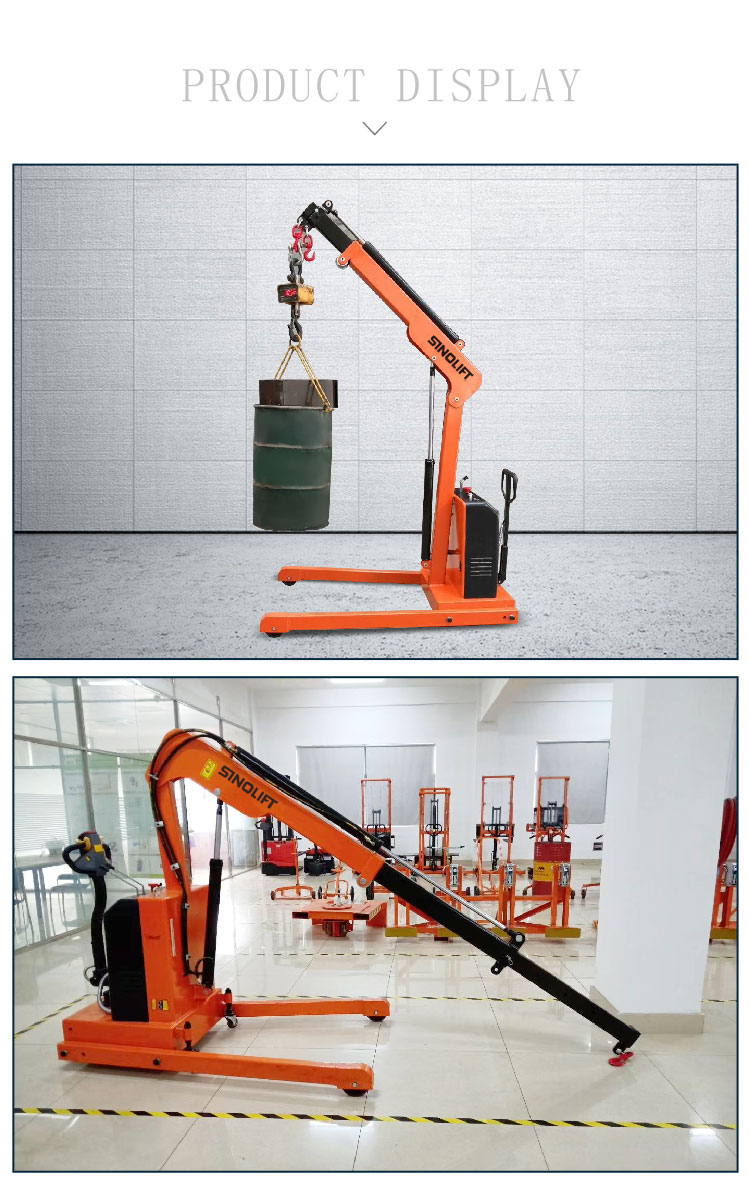

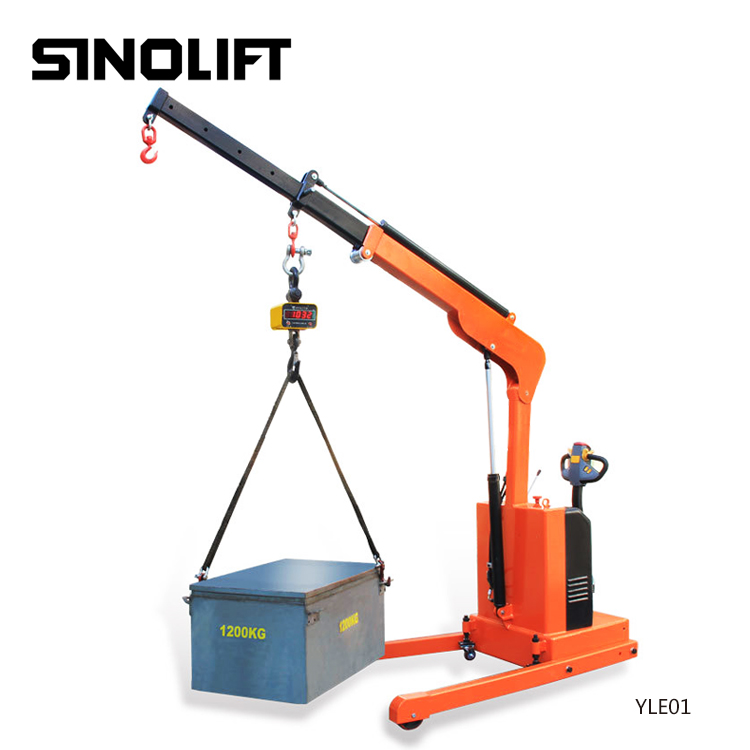

Sinolift YlD01/YLE01 Straddle leg foldable shop crane

Instead of a forklift to become a small mobile crane;
Wide range of lifting angles, adjustable telescopic long arm;
Suitable for areas where the forklift can't enter to operate,foldable legs,small package volumn, convenient for transportation. The load attenuation curve must be considered during using to ensure safety.

Model	YLE01		A	B	C	D	E	F
0°	Boom length	mm	1440	2300	2500	2700	2900	3100
0°	Rated load	kg	1000	342	290	250	220	200
40°	Boom length	mm	1004	1638	1787	1935	2083	2231
40°	Rated load	kg	1100	565	430	345	290	250
Inner leg width		mm	985
Outrigger width		mm	1170
net weight		kg	568
Front wheel size		mm	Φ150x50
Auxiliary wheel size		mm	Φ75x30
Drive wheel size		mm	Φ250x80
