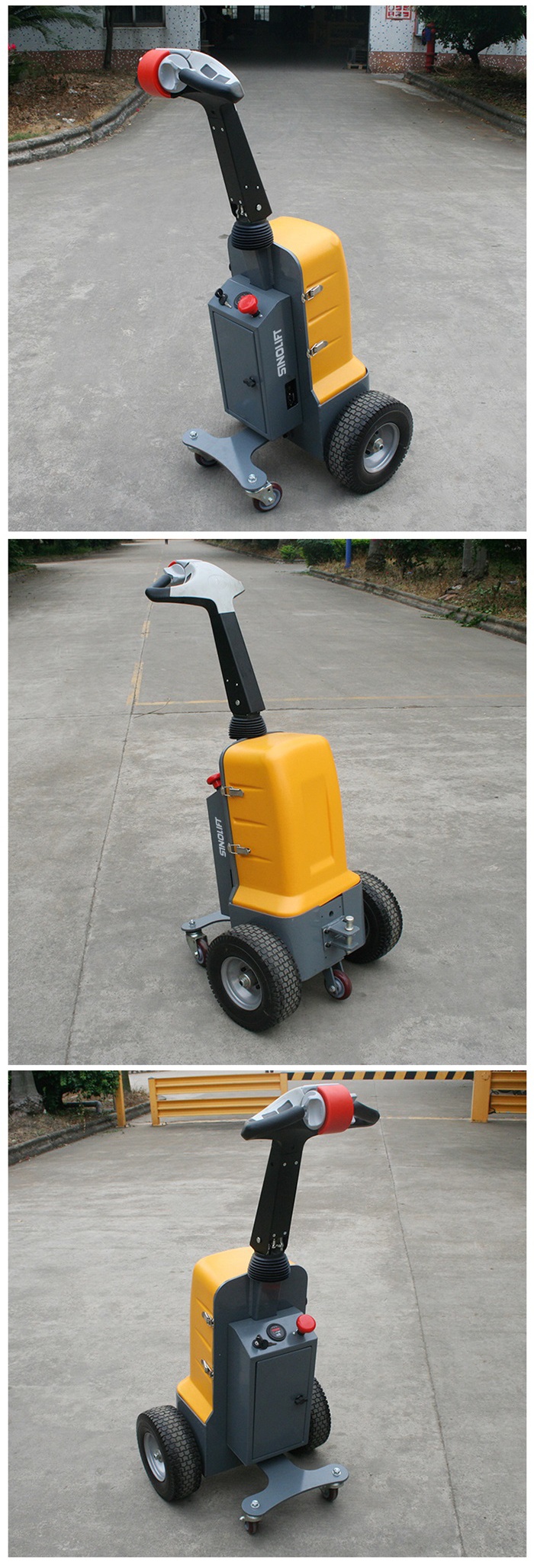

Name:ETM050 ETM100 ETM150 Walkie Electric Tow Tractor
Model:ETM050 ETM100 ETM150

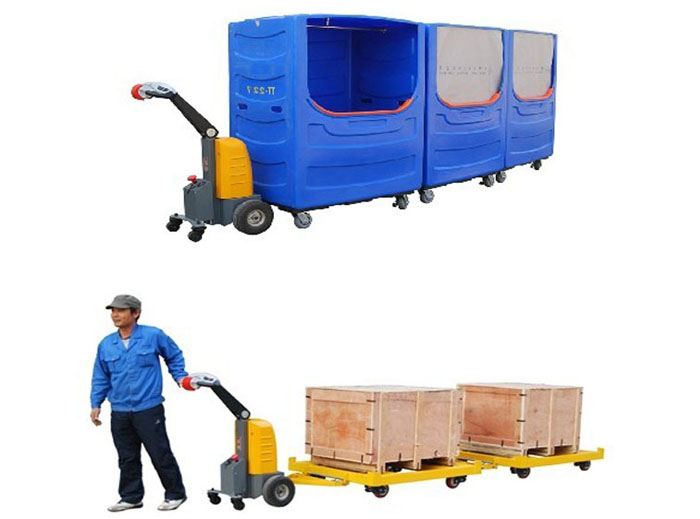

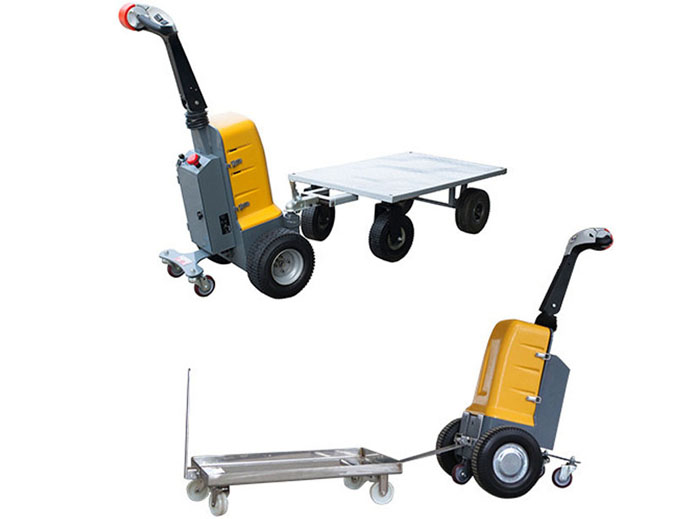

Product Introduction:The SINOLIFT ETM Tow Tractor is designed to tow carts for batch order picking and horizontal transport. With durable construction and our energy efficient ACR System, the ETM Tow Tractor is engineered to handle high volume transport and order picking tasks with ease. Adaptable to the demands of a wide range of warehouse operations, it is ideal in heavy-duty, high throughput applications to meet your applications toughest demands.


1. Use for logistics handling and traction in hospitals, factories, aviation, and other fields to facilitate different traction requirements.

2. Man-machine integrated control handles flexible in operation with many functions.

3. Maintenance-free battery and permanent magnet traction motor provide greater traction power.

4. Stable product performance, compact size, flexible operation, noise free, environmental protection, easy maintenance.

5. US imported Curtis computer controller for greater torque, faster speed, higher reliability, better thermal performance, and smoother acceleration.



Model

ETM50

ETM100

ETM150

Drive unit

Battery

Battery

Battery

Operator type

pedestrian

pedestrian

pedestrian

Load capacity

Kg

500

1000

1500

Rated drawbar pull

N

200

450

650

Wheelbase

mm

315

650

345

Battery

V/AH

24V/40AH

24V/70AH

24V/70AH

Charge

V/AH

24V/8A

24V/10A

36V/10A

Drive motor

V/AH

24V/400W

24V/800W

36V/1200W

Drive wheel

mm

φ260x90mm

φ310x127mm

φ310x127mm

Rear wheel

mm

φ75x32mm

φ75x32mm

φ100x32mm

Unload speed

Km/h

7km/h

7km/h

7km/h

Load speed

Km/h

6km/h

6km/h

6km/h

Load gradability

%

5%

5%

5%

Unload gradability

%

10%

10%

10%

Weight

Kg

90

120

180
