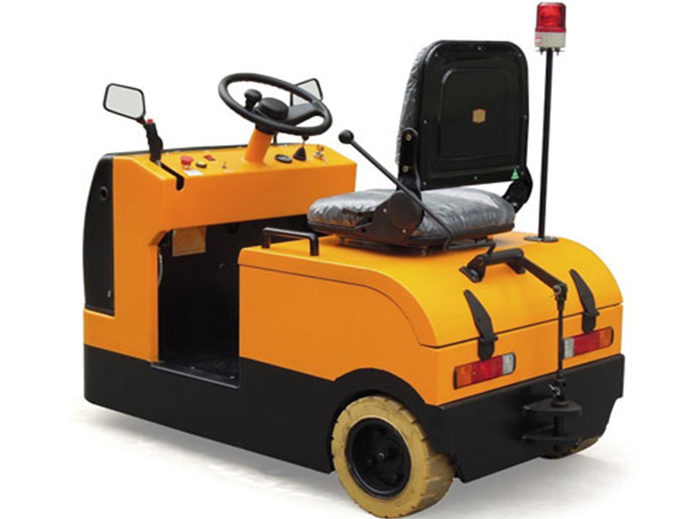

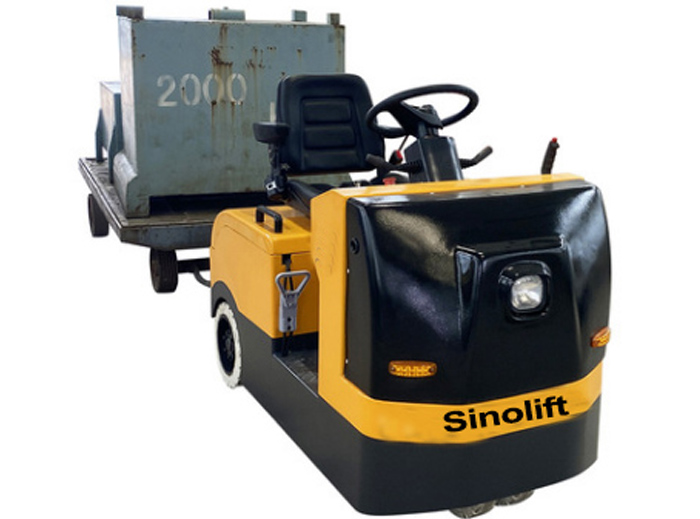

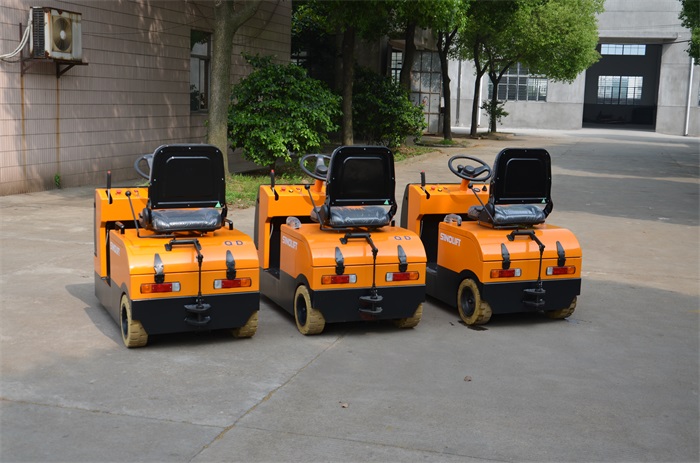

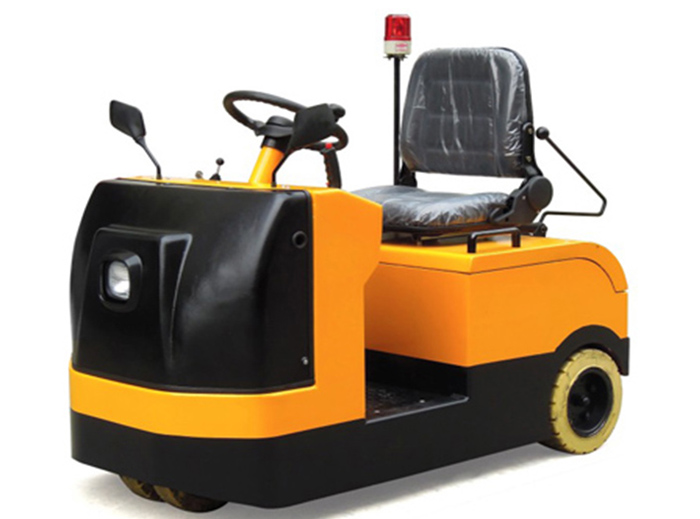

Name：QD-30BH QD-50BH Seated Electric Tow Tractor
Model：QD30BH QD50BH
Product Introduction：This QD-30BH/QD-50BH uses the same battery than 24-volt stand-up tractors and, as a result, you can upgrade your fleet of tractors at a minimal cost. It is updated version from QD-30B with rear driven system. Safe automotive controls and steering wheel eliminate hand injuries and carpal tunnel syndrome hazards associated with twist grip controls.

1. Suspended seat
New type of suspended seat: adjust the bearing capacity according to the weight, and provide the most comfort.

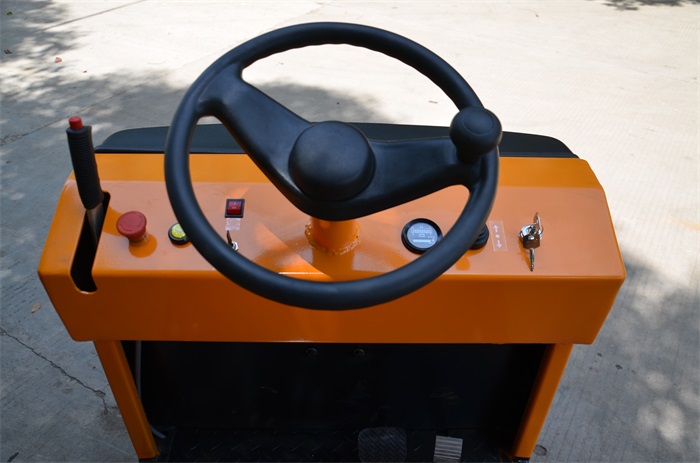

2. Reliable accelerator
The inner safety switch ensures safer operation.
The service life is more than 10 million times.
3. Big steering angle
Bigger steering angle ensures smaller turning radius and easier operation, and the space utilization ratio is also increased.
4. Beautiful and useful tighten mechanism
The tighten mechanism is installed at the top of the cover, so that the forklift is more beautiful, convenient and useful.
5. Tricolor taillight
The tricolor taillight gives you obvious indications of turning, breaking and reversing, which ensure more safety for both life and property.

Model No.		QD-30BH	QD-50BH
Towing Capacity	kg	3000	5000
Driving Motor	W	DC-24V-2000W	DC-36V-3000W
Battery		D-300A 24V	D-300A 24V
Driving Speed	km/h	0~6.5	0~6.5
Controller Type		CURTIS solid-state speed	CURTIS solid-state speed
Working Time	Hours	6	6
Min. Turning Radius	mm	1350	1580
Operation Type		Rider seated	Rider seated
Min.under-clearance	mm	85	85
Steering Wheel	mm	White Rubber Φ267x76	White Rubber Φ330x165
Drive Wheel	mm	Φ330x114	Φ267x127
Overall length	mm	1700	1760
Overall width	mm	800	820
Overall height	mm	1240	1280
Service Weight	kg	1450	1580
