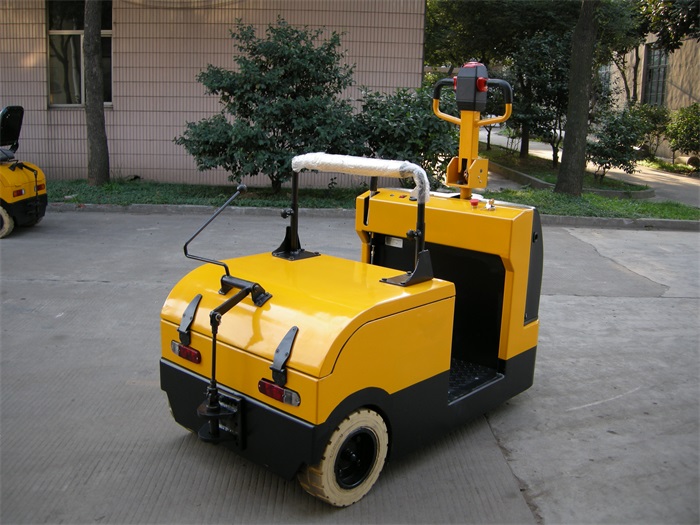

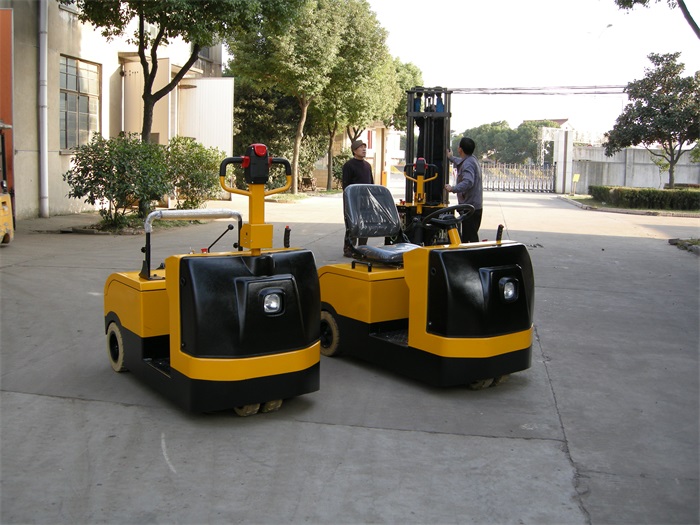

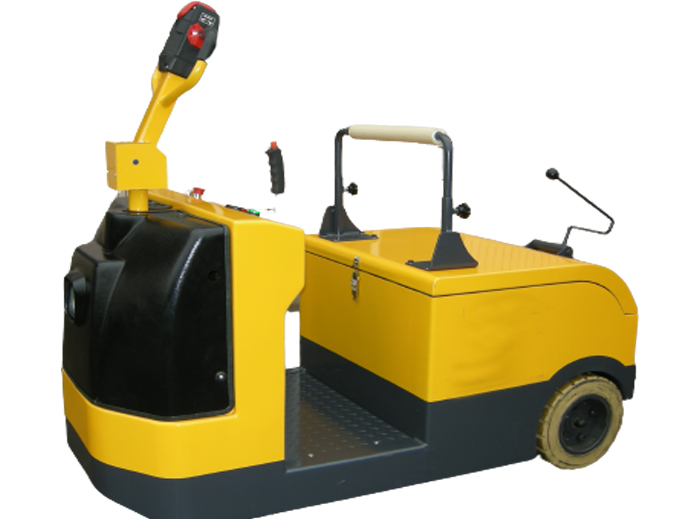

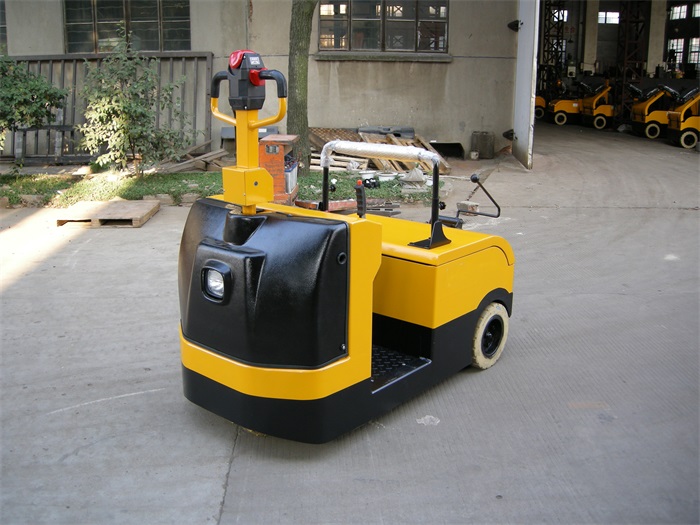

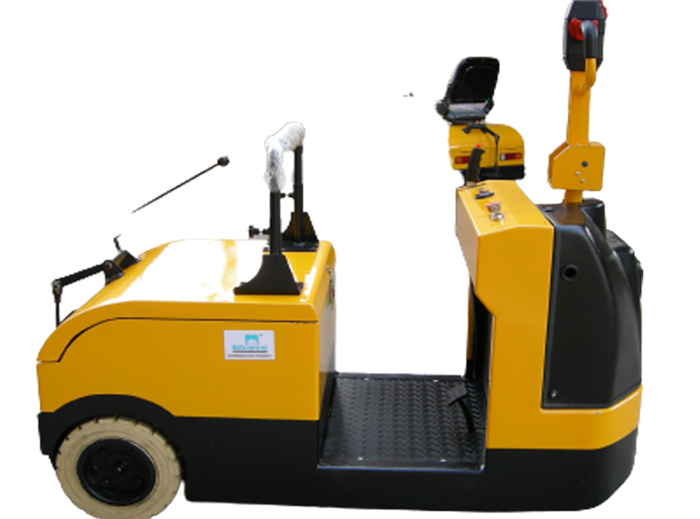

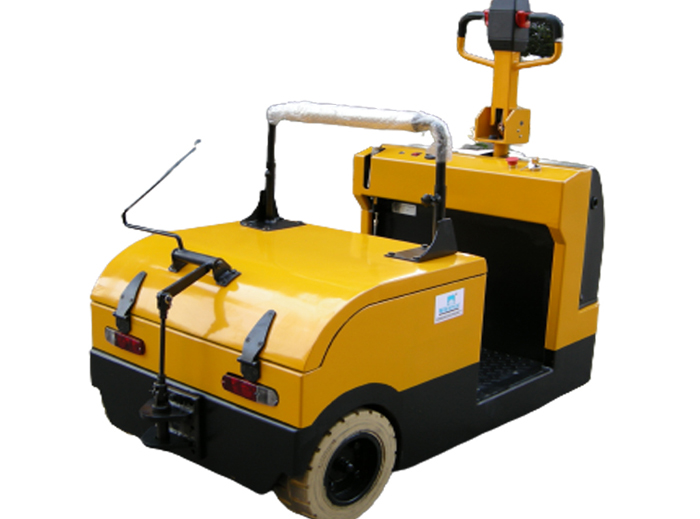

Name：QD-30SH 3-fulcrums Stand-on Electric Tow Tractor
Model：QD30SH
Product Introduction：An electric tow truck is used within the shop floor for moving loaded pallets with a material. Also, these are fabricated in varying capacities of 2 tons to 5 tons. Due to its compactness, it can be driven inside the factory on complex paths.

1. Suspended seat
New type of suspended seat: adjust the bearing capacity according to the weight, and provide the most comfort
2. Reliable accelerator
The inner safety switch ensures safer operation.
The service life is more than 10 million times.
3. Big steering angle
Bigger steering angle ensures smaller turning radius and easier operation, and the space utilization ratio is also increased.
4. Beautiful and useful tighten mechanism
The tighten mechanism is installed at the top of the cover, so that the forklift is more beautiful, convenient and useful.
5. Tricolor taillight
The tricolor taillight gives you obvious indications of turning, breaking and reversing, which ensure more safety for both life and property.

Model No.			QD-30SH
Towing Capacity	kg		3000
Driving Motor	W		DC-24V-2000W
Battery			D-300A 24V
Driving Speed	km/h		7
Controller Type			MOSFET
Working Time	Hours		6
Min. Turning Radius	mm	R	1380
Operation Type			Stand-on
Min.under-clearance	mm		85
Steering Wheel	mm		White Rubber Φ267x127
Drive Wheel	mm		Φ330x165
Overall length	mm	L	1490
Overall width	mm	W	820
Overall height	mm	H	1350
Service Weight	kg		1450
