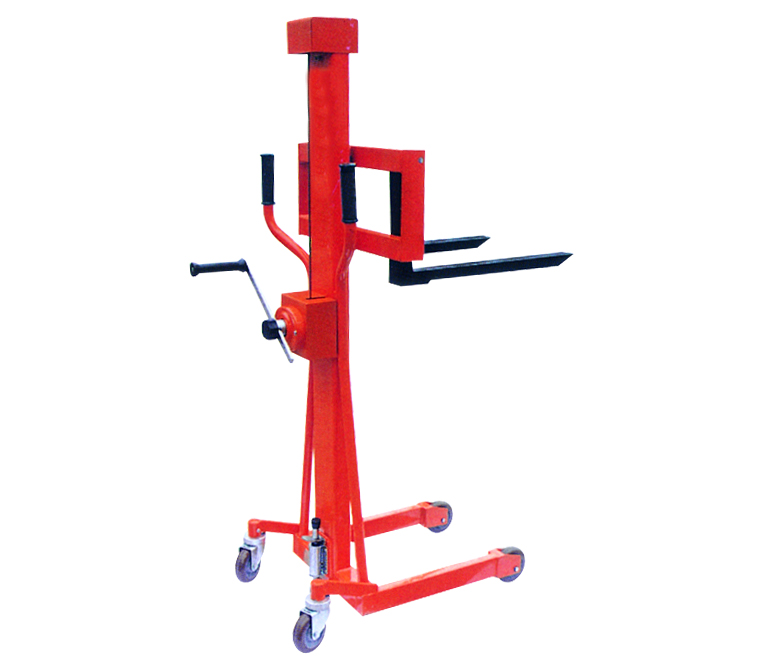

Name：SINOLIFT LS Series Portable Manual Winch Mini Stacker
Model：LS80 LS150
Product Introduction：

- Robust, lighweight, steel construction.
- Maneuverable, extemely easy to use.

- Cable winch lifting system with full cable housing.

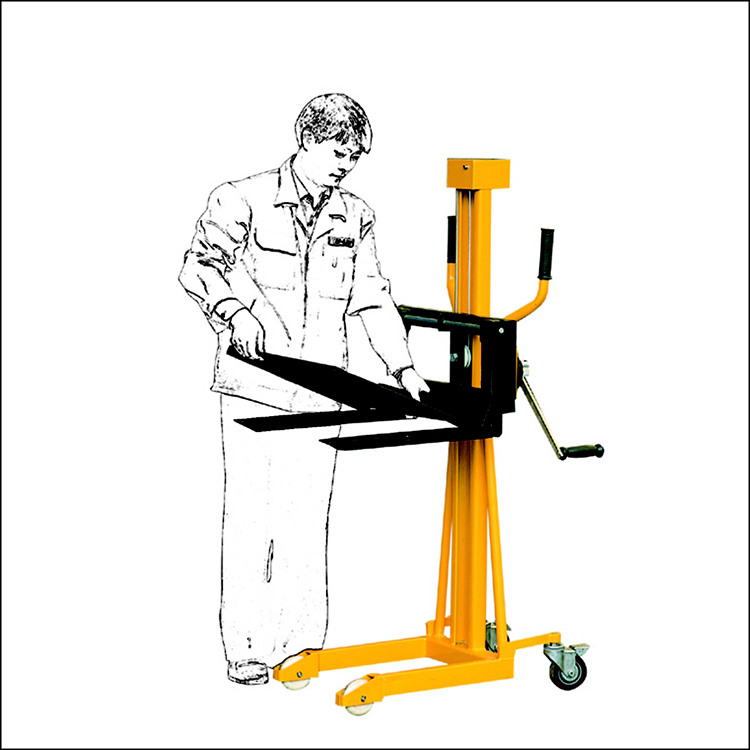

- Adjustable fork from 132mm to 520mm.

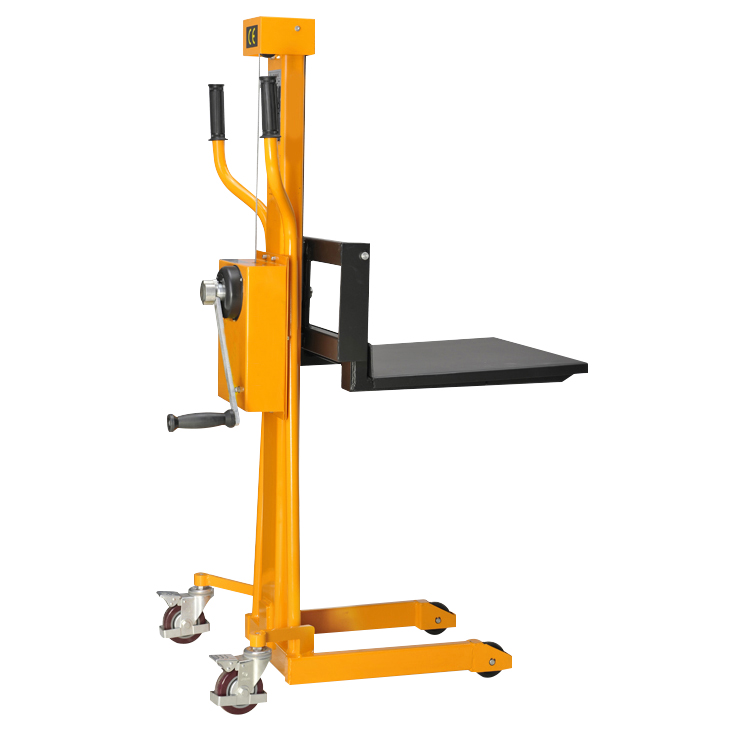

- Platform is a standard accessory.

Model		LS80	LS150
Capacity	(kg)	80	150
Load Centre	(mm)	250	250
Lifting Height	(mm)	1100	1100
Straddle Leg Height	(mm)	100	100
Min. Fork Height	(mm)	70	70
Fork Length	(mm)	500	500
Individual Fork Width	(mm)	50	50
Platform Size	(mm)	500x530x90	500x530x90
Over Adjustable Fork Width	(mm)	132-520	132-520
Effort Force with Load	(N)	82	106
Load Wheel	(mm)	Ø100x30
Steering Wheel	(mm)	Ø100x30
Overall Dimensions	(mm)	865x550x1470	830x580x1475
Net Weight	(kg)	52	62
Important: Forks MUST be in Max. fork width position when fit platform on two forks.
