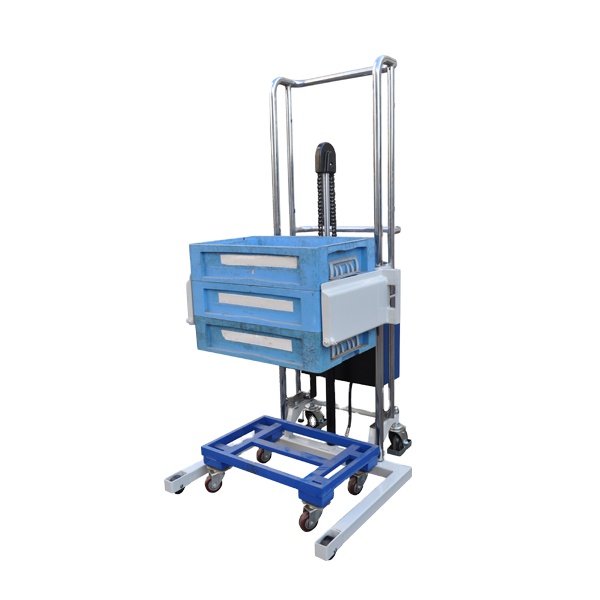

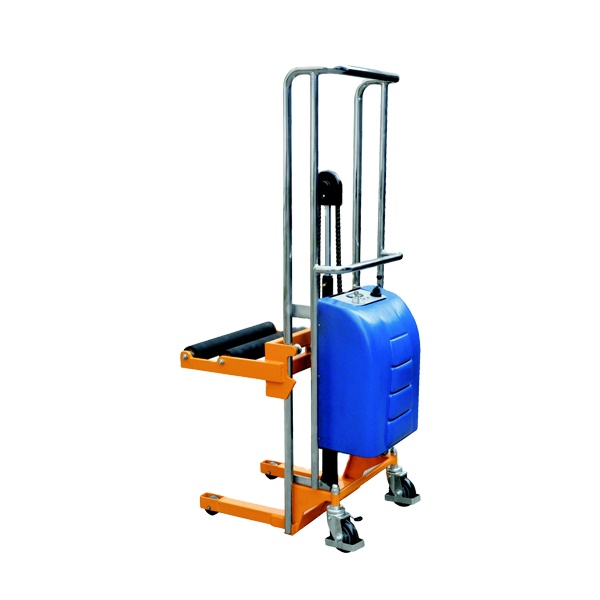

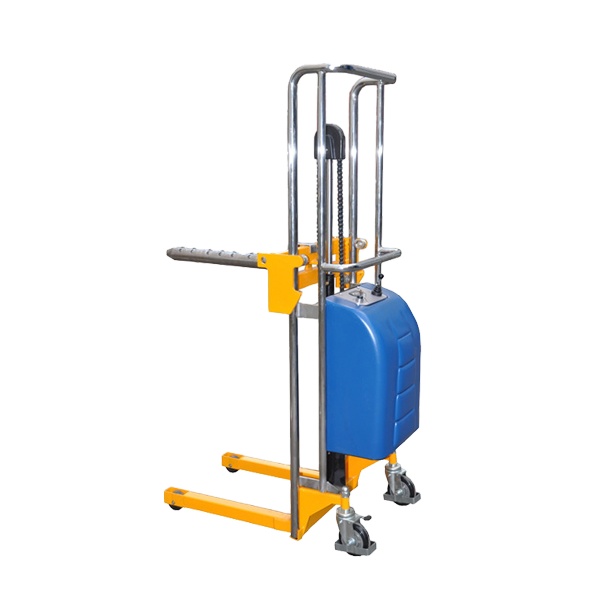

Name：SINOLIFT EJ series 200kg 400kg Multi-purpose Light-duty electric Stacker
Model：EJ
Product Introduction：

1.High quality electric pump provides easy and labor-saving operation

2.Maintenance-free battery with lasting power and battery capacity display

3.Chromium plated frame can be beautiful and durable

4.Built-in charge can be convenient and safe to use

5.Non-standard design can apply various technique requirements and be widely used

Model EPJ(With adjustable fork)		EJ4120	EJ4150	EJ4180
Max. Capacity	kg	400	400	200~400
Min./Max. fork height	mm	85/1200	85/1500	85/1800
Fork Size(LxW)	mm	650x100	650x100	650x100
Fixed fork outside width(EPF series)	mm	550	550	550
Adjustable fork width(EPJ series)	mm	215-550	215-550	215-550
Overall Size	mm	1100X590X1410	1100X590X1710	1100X590X2010
Front wheel	mm	Φ75X30	Φ75X30	Φ75X30
Rear wheel	mm	Φ125X40	Φ125X40	Φ125X40
Power unit	V/kw	DC 12/0.8	DC 12/0.8	DC 12/0.8
Battery	V/Ah	12/60	12/60	12/60
Net weight (EPF series)	kg	105	108	114
Net weight (EPJ series)	kg	108	110	116
Option Platform	mm	LP20(660x580)	LP20(660x580)	LP20(660x580)
