Home >> Products >> Sinolift ES30 ES50 ES75 ES100 Single Scissor Electric Table Lift

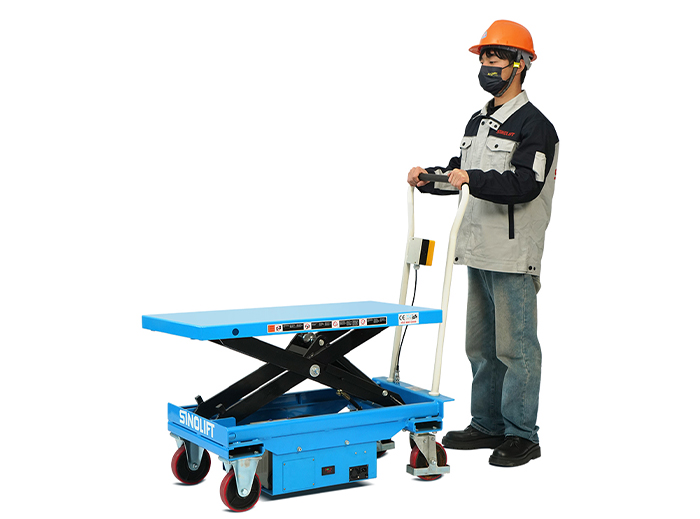

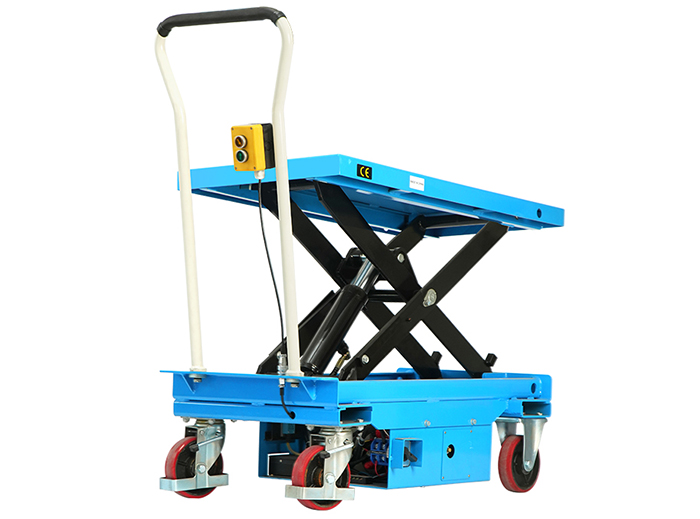

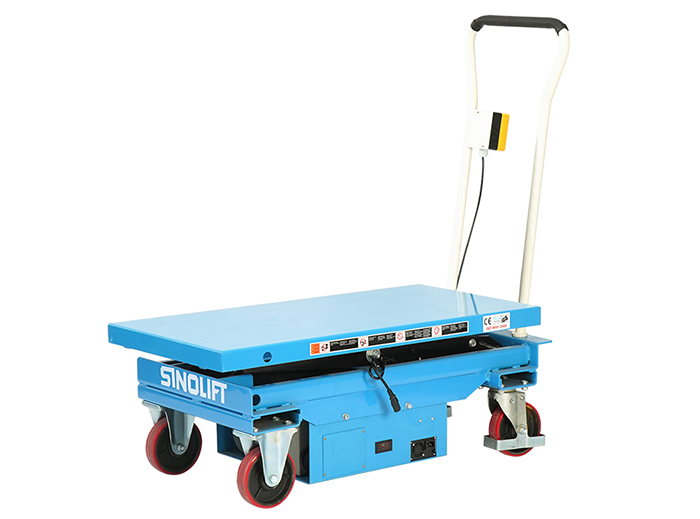

Sinolift ES30 ES50 ES75 ES100 Single Scissor Electric Table Lift
Name：Sinolift ES30 ES50 ES75 ES100 Single Scissor Electric Table Lift
Model：ES30 ES50 ES75 ES100
Product Introduction：Single scissor electric lift table with loading capacity 3ton and 5ton and 7.5ton and 10ton
Feature
Specifications
PDF
IMAGES

Feature：

1.High quality pump station is adopted.

2.Maintenance free battery，saving maintenance time and cost，built-in charger，Electric quantity display table.Low voltage warning lamp.

3.Charger specification：220V,50Hz

4.Anti pinch fork design,Overload protection function, reliable and safe.

Model ES30 ES50 ES75 ES100
Type Single Scissor Single Scissor Single Scissor Single Scissor
Load capacity kg 300Kg 500Kg 750Kg 1000Kg
Min.height mm 450mm 450mm 450mm 480mm
Max.height mm 950mm 950mm 950mm 950mm
Table dimension mm 1010X520mm 1010X520mm 1010X520mm 1010X520mm
Dia.of the wheel mm Φ125X30mm Φ150X40mm Φ150X40mm Φ150X40mm
Lifting and lowering time S 15 15 15 15
Storage Battery V/Ah 12/V54Ah 12/V54Ah 12/V54Ah 12/V54Ah
Charger input Voltage v 65 55 45 40
Net weight kg 140 148 154 169
