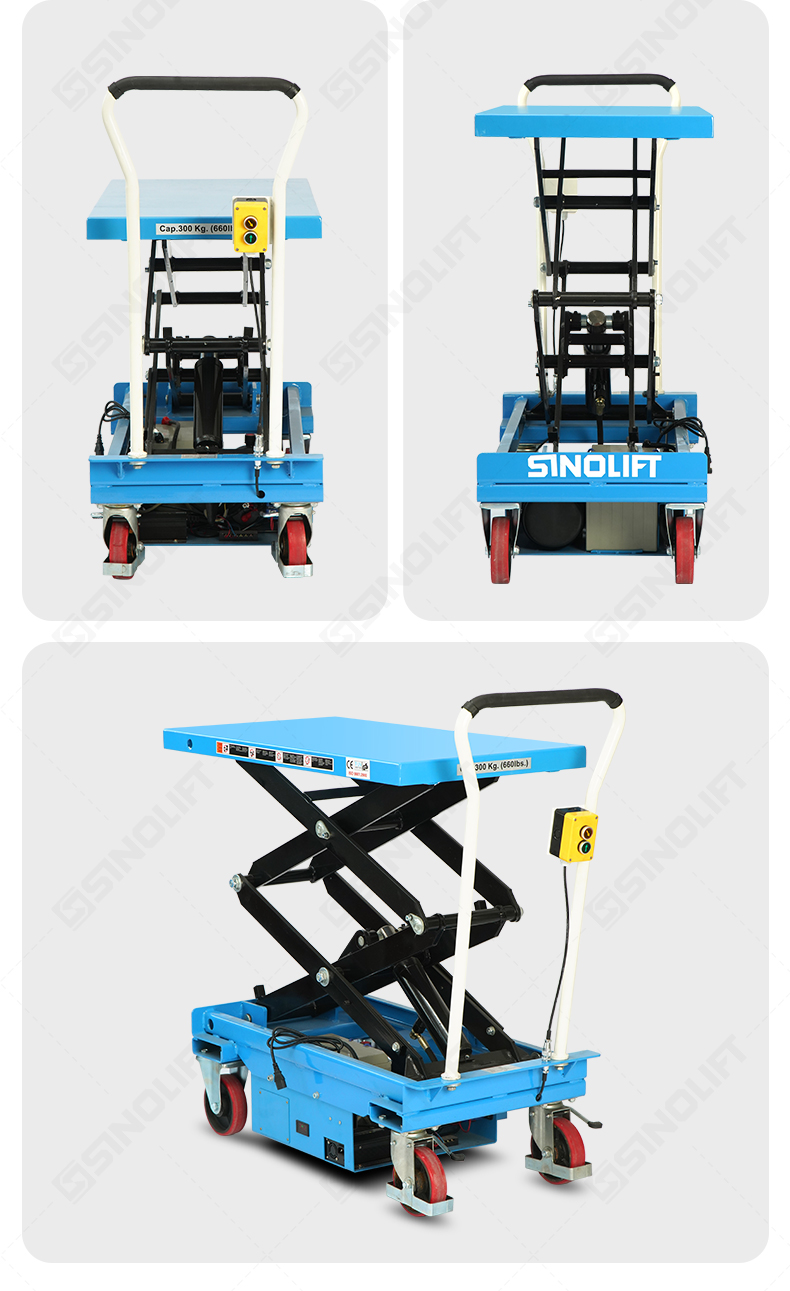

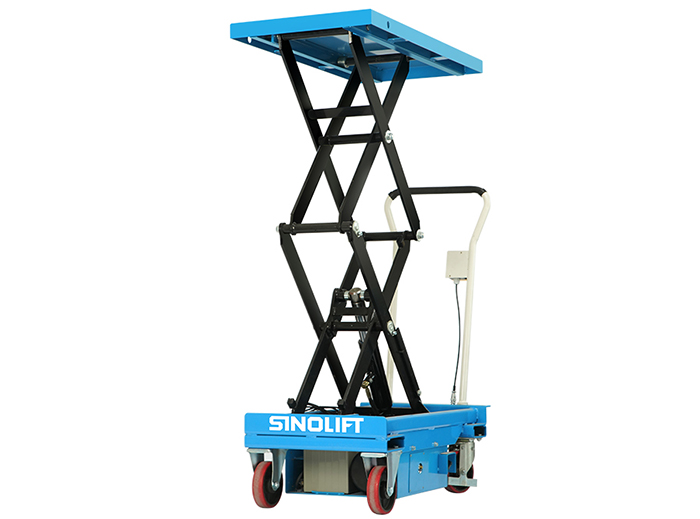

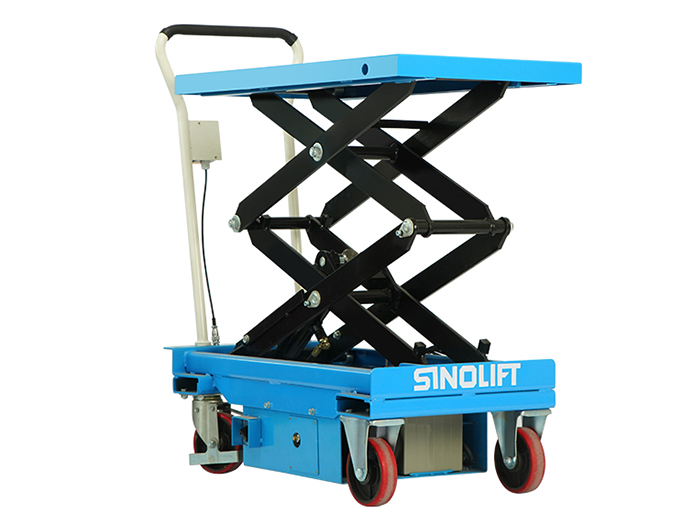

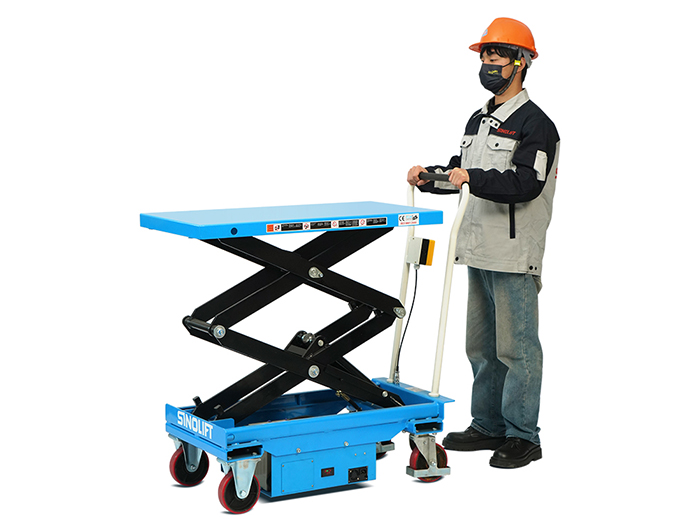

Name：ESD Electric Double Scissor Lift Table
Model：ES30D ES50D ES80D
Product Introduction：Doulbe Scissors Electric Table Lift

Battery electric powered operation

Time to maximum height: 14 - 17 seconds

Overall length including pedal: 1260mm

Can be used safely at any height

Fitted with two total stop brakes as standard to prevent the table from moving when loading and unloading

Fitted with an overload valve

Hard wearing and non-marking polyurethane tyres prevent damage to floors

Swivel wheels fitted with thread guards

Epoxy powder coated finish for durability

Model		ES30D	ES50D	ES80D
Capacity	kg	300	500	800
Min.Height	mm	495	495	510
Max.Height	mm	1600	1618	1460
Handle Height	mm	1185
Platform Size	mm	1010*520
Overall Size	mm	1260*520
Wheel Size	mm		φ150*40
Lifting Time	s	15/15
Net Weight	kg	183	198	176

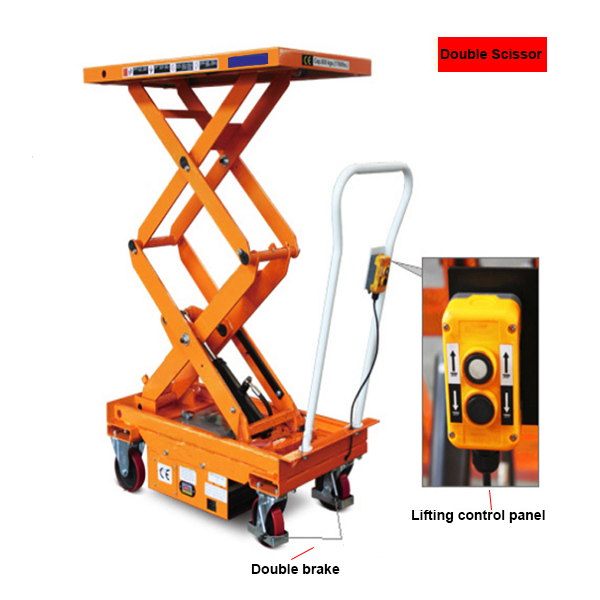

UploadFiles/2021831135111138.jpg
