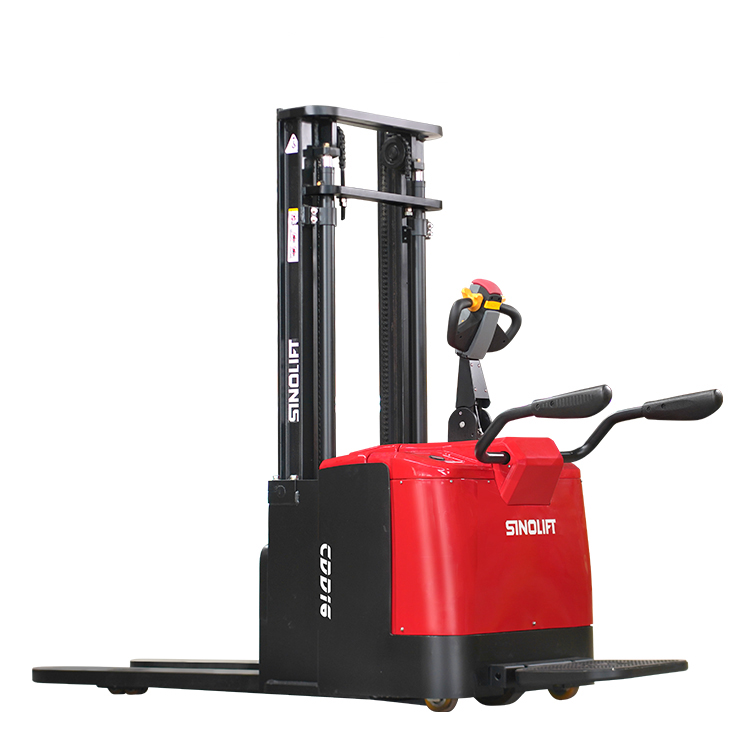

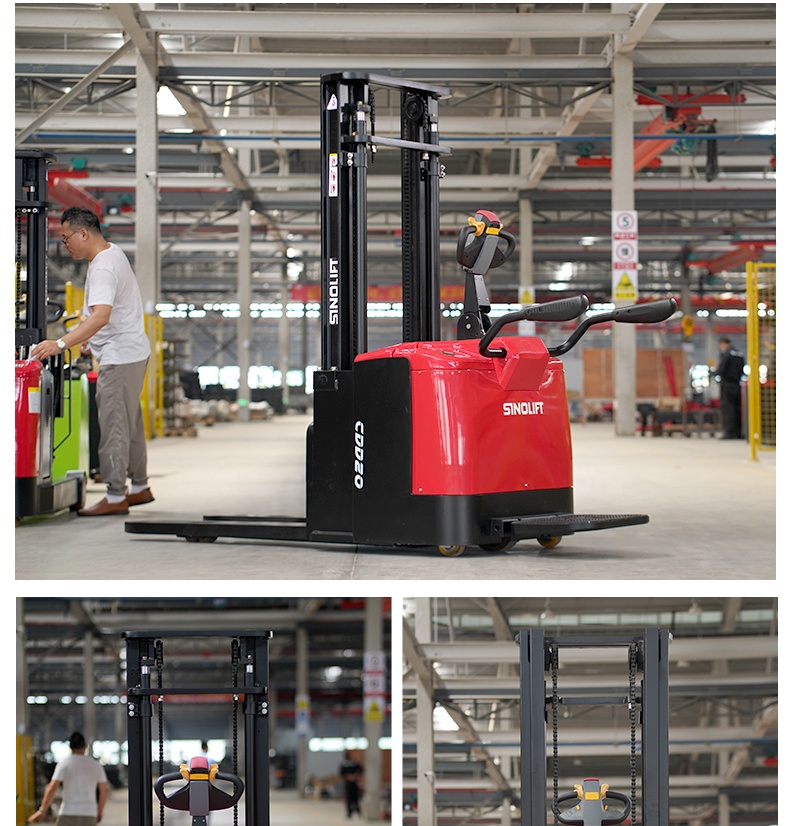

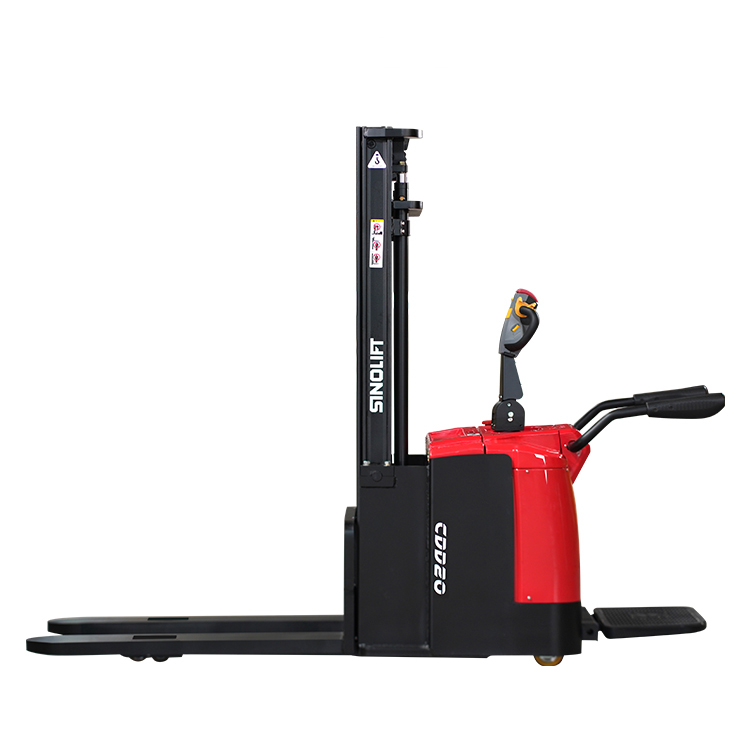

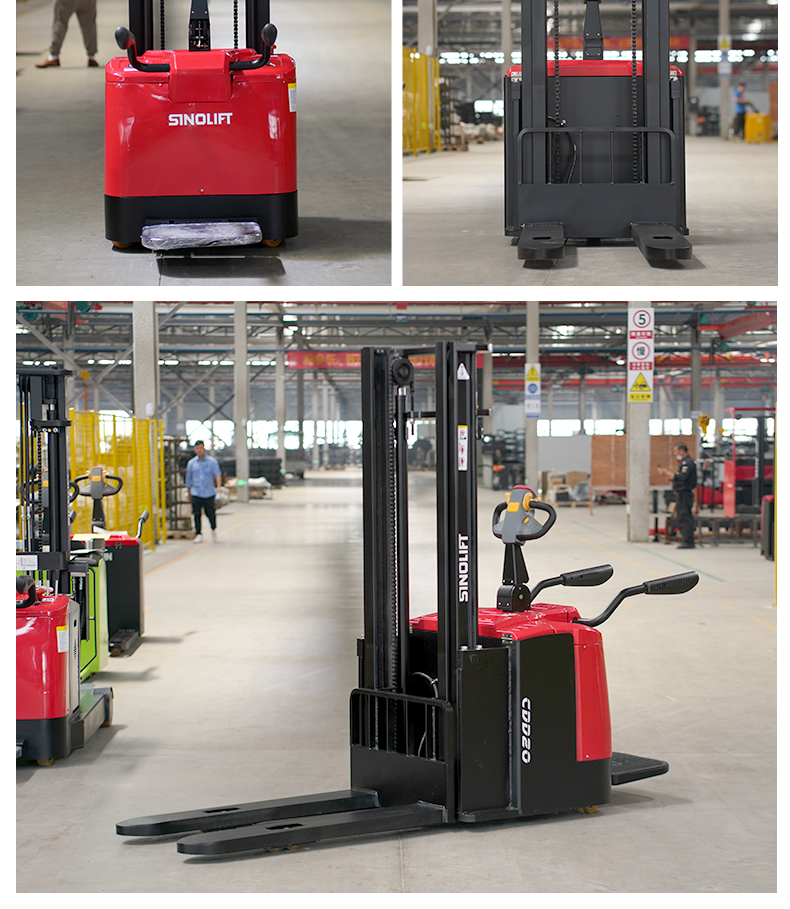

Name：CDD16M CDD20M Pedestrian Electtric Stacker
Model：CDD16M CDD20M

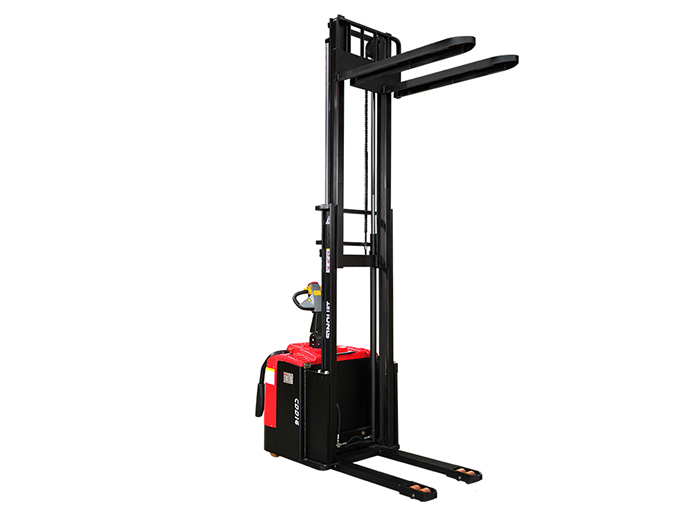

Product Introduction：The CDD16M CDD20M is the entry-level model of the Electric Pedestrian Stacker. Intended for easy applications in the internal material flow and thanks to its compact design, it is especially suited for operations in narrow spaces. Fitted with a double telescopic mast, the truck allows for the easy storage and retrieval of pallets.

Safety

The off-centered tiller keeps the operator safety within the truck’s contours. The long tiller ensures ample safety clearance between operator and truck. The low clearance from the ground will avoid injury to your feet. Battery discharge indicator with automatic lift cut-off function when 20% rest capacity for higher battery lifetime. Fitted with a double telescopic mast, the truck allows for the easy storage and retrieval of pallets.

Comfort

All controls on the ergonomic tiller can be easily operated by either hand. A creep speed button offers utmost maneuverability in confined areas. The use of polyurethane drive and load wheels ensures impressively quiet operation on different application. Its compactness guarantees easy and precise maneuvering even in the tightest spaces.

Reliability

As the Linde standard manufacture the frame, Truck go through durability test and cover bears dropping ball test, ensure the reliability of the solid. Robust metal truck body protects the drive system and wheels well, also provides safety protection on feet. Achieve an optimal quality and reliability.

dentiﬁcation	1.1	Manufacture's type designation	SINOLIFT
	1.2	Model			CDD16M	CDD20M
	1.3	Power Type	Electric
	1.4	Type of Operation	Stand-on
	1.5	Steering Mode	Electric Power Steering
	1.6	Load capacity/Rated load	Q	kg	1600	2000
	1.7	Load Center Distance	C	mm	600	600
	1.8	Wheelbase	y	mm	1500	1500
Weight	2.1	Total Weight (with battery)		kg	1300	1350
	2.2	Axle Load(laden):Drive side/Load-bearing side		kg	1115/1785	1285/2065
	2.3	Axle Load(unladen):Drive Side/Load-bearing side		kg	947/353	985/365
Dimension	3.1	Overall Length (Pedal Retracted/Expanded)	L1/L2	mm	2210/2645	2210/2645
	3.2	Overall Width	W1	mm	880	880
	3.3	Lift Height	h1	mm	Refer to mast parameter
	3.4	Lowered Mast Height	h2	mm	Refer to mast parameter
	3.5	Extended Mast Height	h4	mm	Refer to mast parameter
	3.6	Free Lift Height	h5	mm	Refer to mast parameter
	3.7	Fork Dimension	l/e/s	mm	1220×185×55	1220×185×55
	3.8	Width of Fork	b2	mm	560/685	560/685
	3.9	Min.Fork Height	h3	mm	85	85
	3.1	Ground Clearance at Center of Wheelbase (Min)	m1	mm	30	30
	3.11	Height of Operating Handle bar(Min./Max)	h14	mm	1000/1550	1000/1550
	3.12	Turning Radius	Wa	mm	1755/2200	1755/2200
	3.13	Min. Aisle width for pallets 1000×1200 (Pedal Retracted/Expanded)			2630/3085	2630/3085
	3.14	Min. Aisle width for pallets 800×1200 (Pedal Retracted/Expanded)			2555/3010	2555/3010
Tyre (Wheel)	4.1	Tyre Type			Polyurethane	Polyurethane
	4.2	Tyre Size (Front Load Wheel)		mm	φ80x60	φ80x60
	4.3	Tyre Size (Auxiliary Wheel)		mm	φ115x55	φ115x55
	4.4	Tyre Size (Driving Wheel)		mm	φ230x75	φ230x75
	4.5	Wheels Quantity, front/rear (x=Driving Wheels)			4/1x+2	4/1x+2
Performance	5.1	Traveling Speed (laden/unladen)		Km/h	5/5.5	5/5.5
	5.2	Lifting Speed(laden/unladen)		mm/s	95/135	95/135
	5.3	Lowering Speed(laden/unladen)		mm/s	100/130	100/130
	5.4	Max.Gradient Performance (laden/unladen)		%	5/8	5/8
	5.5	Service Brake Type			Electromagnetic
	5.6	Parking Brake Type			Electromagnetic
Power Unit	6.1	Drive Motor Rating (AC) S2 -60min		kW	1.5	1.5
	6.2	Lift Motor Rating (DC) S3-15%		kW	3	3
	6.3	Battery Voltage/Capacity K5		V/Ah	24/210	24/210
	6.4	Battery Weight		kg	188	188
Others	7.1	Controller Brand			CURTIS	CURTIS
	7.2	Controller Model			1232E	1232E
	7.3	Sound level atdriver's ear according to EN 12 053		dB	70	70
