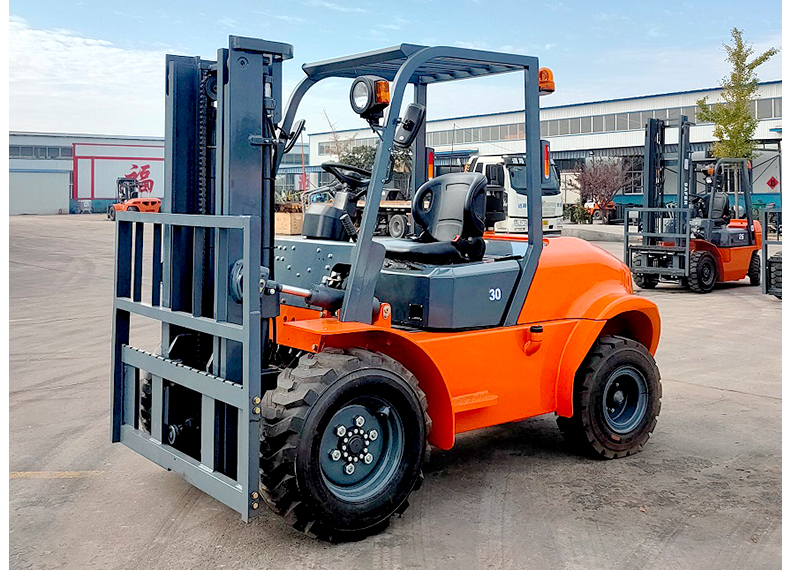

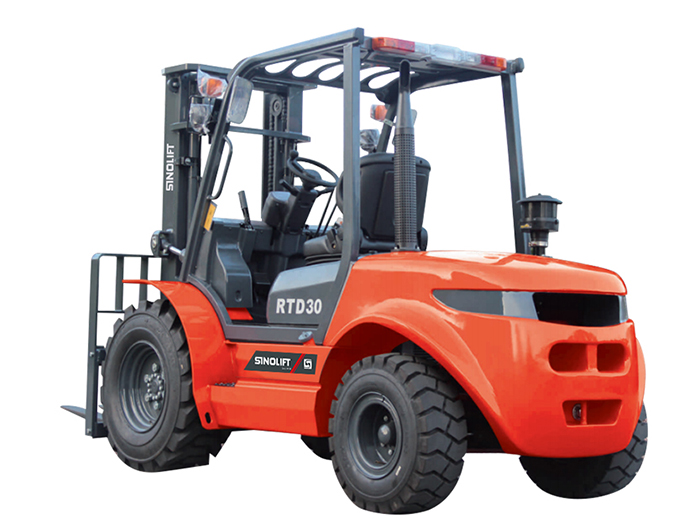

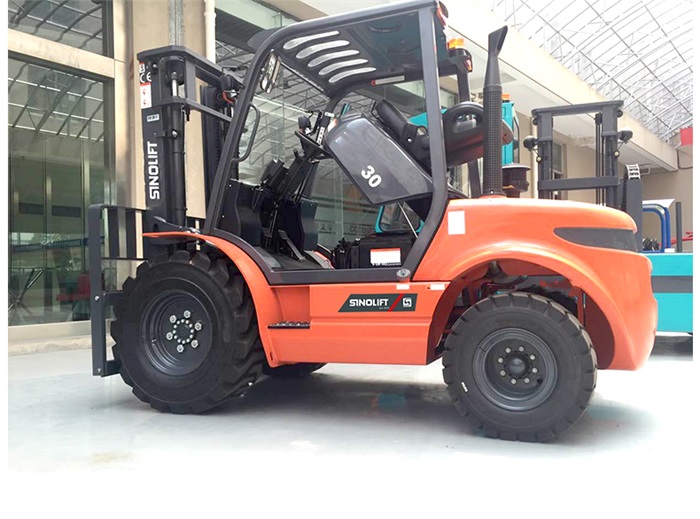

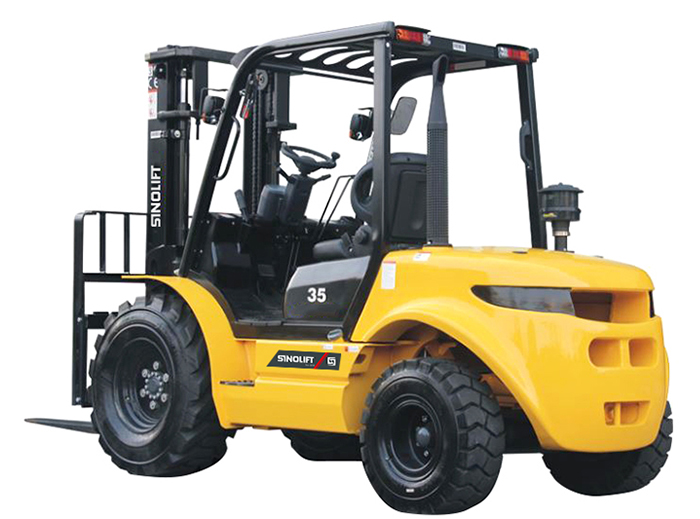

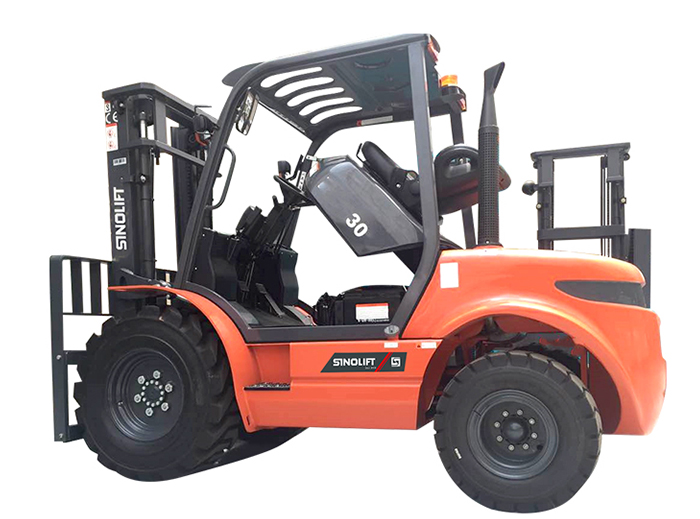

Name:3-3.5Ton Diesel Rough Terrain Forklift Truck(RTD30 RTD35)
Model:RTD30 RTD35
Product Introduction:Rough Terrain Forklifts are normally chosen for outdoor construction on surfaces that are undulated. These forklift trucks can climb slopes as great as 45 degrees, which a standard IC Forklift cannot do without getting stuck or tipping over. They are built with more powerful engines than conventional forklifts, for higher and faster travel speeds.

1.Rough Terrain Forklifts are normally chosen for outdoor construction on surfaces that are undulated. These forklift trucks can climb slopes as great as 45 degrees, which a standard IC Forklift cannot do without getting stuck or tipping over. They are built with more powerful engines than conventional forklifts, for higher and faster travel speeds.

These forklifts are built more like a tractor with forks. They have pneumatic or air-filled tires, as opposed to counterbalance forklifts which use cushion tires. Pneumatic tires are inflatable tires with thicker threads, allowing them to become stable on uneven surfaces.  The air pressure inside the tire is greater than that of the atmosphere.


2. Terrain Forklift Can Help Your Workers Safely Complete Tasks on Sand, Gravel, and Other Uneven Surfaces. Rough terrain lifts represent one of the largest forklift families. Your business can provide them to workers who need to carry large loads on rocky surfaces.


3. Rough Terrain Forklift advantages:

- Flexible hydraulic steering system

- Security to meet off-road conditions

- High ground clearance through sexual

- Minimum ground clearance vehicle reaches 220mm, through greatly increased

- Off-road design: lengthened wheelbase and wider front and rear track with great stability

- Dual Air filter, conducting double filtration

- Vertical high exhaust, preventing blowing dusts everywhere

General

Model

RTD30

RTD35

Power Type

Diesel

Diesel

Load Capacity

kg

3000

3500

Load centre

mm

600

600

Tyre

Tyre Type

Pneumatic Tyre

Pneumatic Tyre

Front Tyre

14-17.5-14PR

14-17.5-14PR

Rear Tyre

27×10-12-12PR

27×10-12-12PR

Overall Dimension

Lift Height

mm

3000

3000

Fork Size

L×W×T

mm

1220×125×45

1220×125×50

Mast Tilt Angle

F/R

.

8/10

8/10

Mast Lowered Height

mm

2205

2240

Mast Extended Height(with backrest)

mm

4200

4200

Length to face of fork(Without fork)

mm

3060

3120

Overall Width

mm

1605

1605

Overhead Guard Height

mm

2145

2145
