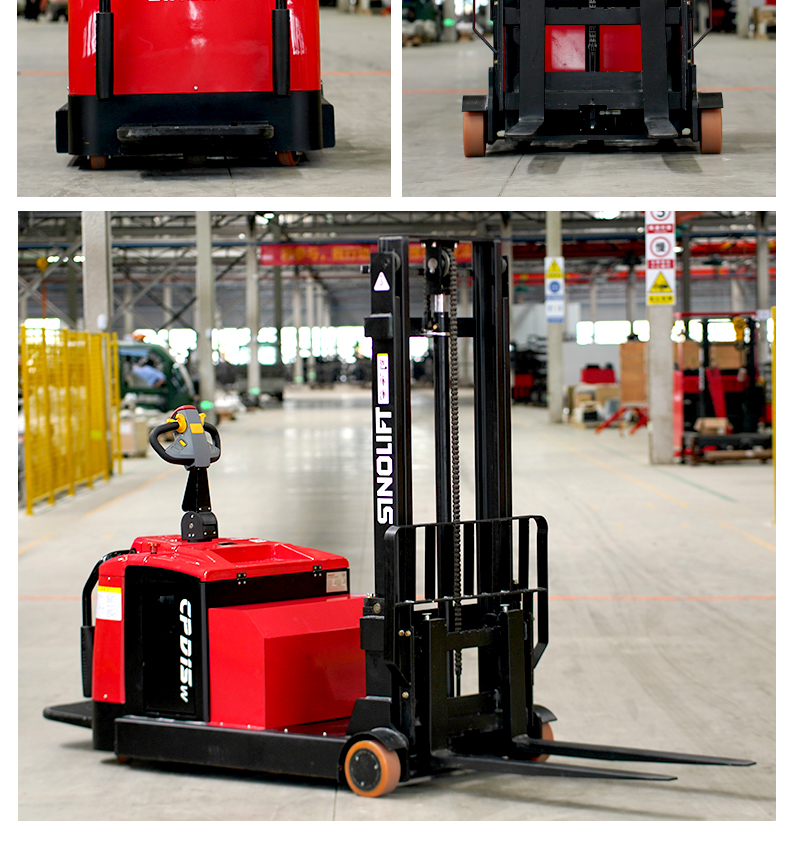

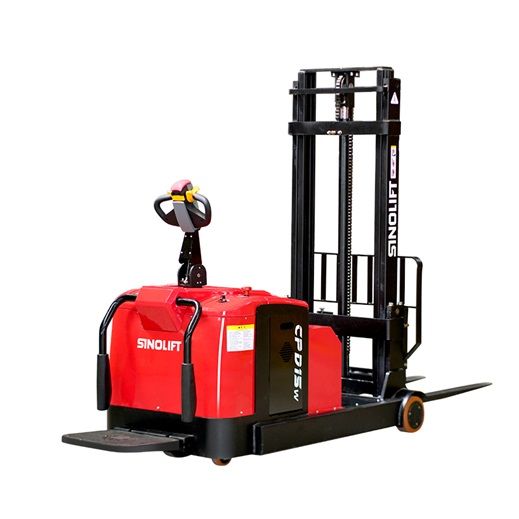

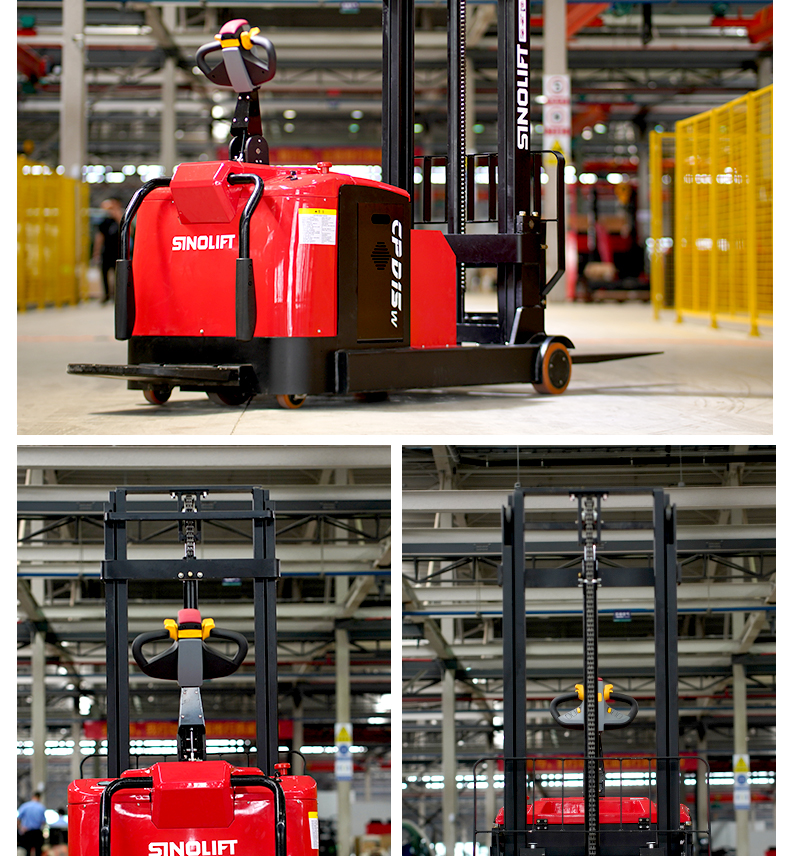

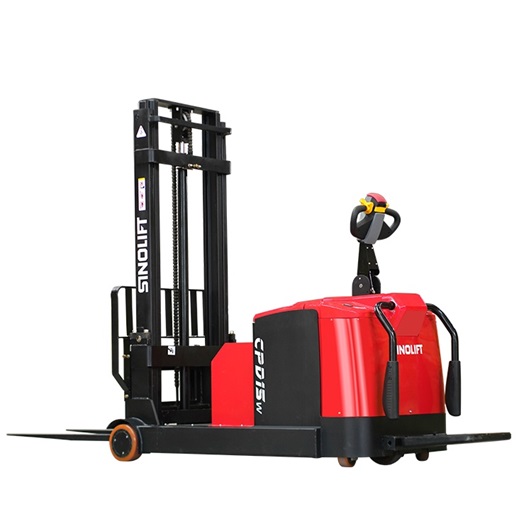

Name：CPD10W CPD15W Counterbalanced Electric Stacker
Model：CPD10W CPD15W
Product Introduction：The SINOLIFT Counterbalance Electric Stacker is an ideal combination of a stacker and forklift – it is best suited for load handling tasks where straddle or outrigger legs won’t work. Storage racks and sections with bottom bars could limit forward reach and counterbalance electric stackers are designed to tackle this limitation.

SINOLIFT Counterbalance Stacker Features

Foldable platform for optimal work positioning in constricted areas

Absence of outrigger legs allows better forward reach

Highly efficient AC drive and lift motors

MOSFET drive control technology

CURTIS electronic controller

Italian HYDRAPP hydraulic pump

FREI handle for accurate handling

Built-in pressure relief valve protects against overloading

Long life electromagnetic braking system

Easy to access emergency power shut-off switch

Emergency reverse function enhances operator safety

Regenerative braking function captures energy and extends battery life

Slide-out battery compartment for easy access

Built-in onboard charger included

CE and ISO9001:2008 certified

5 Year Parts & Labour Warranty

Counterbalanced stackers are perfect for loading and unloading trucks or positioning materials and goods where racks or machinery could have some sort of bottom interference. The absence of protruding outriggers enables the stacker to approach work sections without any obstruction.

The SINOLIFT counterbalance electric stacker is your versatile and cost-wise alternative to a sit-down forklift, providing you with efficient work cycles at the operational cost of a walkie!

Contact SINOLIFT by phone (13817572420) or email （sales@sinolift.com） to get your free quote today.

Characteristic	1.1	Manufacturer		SINOLIFT
	1.2	Model			CPD10W	CPD15W
	1.3	Power Type		Electric
	1.4	Type of Operation		Stand-on
	1.5	Steering Mode		EPS
	1.6	Load Capacity/Rated load	Q	kg	1000	1500
	1.7	Load Center Distance	C	mm	500	500
	1.8	Load Distance,Center of Drive Axle to Fork	x	mm	130	130
	1.9	Wheelbase	y	mm	1300	1450
Weight	2.1	Total Weight(with Battery)		kg	1830	1850
	2.2	Axle Load (laden):Drive side/Load side		kg	1043/787	1055/795
	2.3	Axle Load (unladen):Drive side/Load side		kg	340/2490	400/2950
Dimension	3.1	Overall Length (Pedal Retracted/Expanded)	L1/L2	mm	2730/3170	2880/3320
	3.2	Frame Length (Pedal Retracted/Expanded without fork)		mm	1655/2075	1820/2245
	3.3	Overall Width	W1/W2	mm	880/1030	880/1030
	3.4	Lifting Height	h1	mm	3000	3000
	3.5	Lowered Mast Height	h2	mm	2050	2050
	3.6	Extended Mast Height	h4	mm	3855	3855
	3.7	Fork Dimension	l/e/s	mm	1070×100×40	1070×100×40
	3.8	Fork Mounting Class			2A	2A
	3.9	Fork Carriage Spread Width	b2	mm	220-700	220-700
	3.1	Fork Carriage Width		mm	737	737
	3.11	Ground Clearance at Center of Wheelbase (Min.)	m1	mm	50	50
	3.12	Height of Operating Handlebar (Min./Max.)	h14	mm	1000/1450	1000/1450
	3.13	Turning Radius	Wa	mm	1560/2000	1710/2145
	3.14	Min.Aisle Width (Pallet size 1000*1200)(PedalRetracted/Expanded)			3050/3470	3195/3620
	3.15	Min.Aisle Width (Pallet size 800*1200)(Pedal Retracted/Expanded)			3165/3605	3315/3750
Tyre	4.1	Tyre Type			Polyurethane	Polyurethane
	4.2	Tyre Size (Front)		mm	φ210x85	φ210x85
	4.3	Tyre Size (Auxlliary Wheel)		mm	φ115x55	φ115x55
	4.4	Tyre Size (Driving Wheel)		mm	φ230x75	φ230x75
	4.5	Wheels Quantity, front/rear(x=Driving Wheels)			2/1x+2	2/1x+2
Performance	5.1	Traveling Speed (laden/unladen)		Km/h	5/6	4.5/5
	5.2	Lifting Speed (laden/unladen)		mm/s	80/110	80/110
	5.3	Lowering Speed (laden/unladen)		mm/s	140/120	140/120
	5.4	Max. Gradient Performance s2 5min (laden/unladen)		%	5/8	5/8
	5.5	Service Brake Type			Electromagnetic
	5.6	Parking Brake Type			Electromagnetic
PowerUnit	6.1	Drive Motor Rating (AC)S2 -60min		kW	1.5	1.5
	6.2	Lift Motor Rating (DC)S3-15%		kW	2.2	2.2
	6.3	Battery Voltage/Capacity K5		V/Ah	24/210	24/210
	6.4	Battery Weight		kg	188	188
Others	7.1	Controller Brand			CURTIS	CURTIS
	7.2	Controler Model			1232E	1232E
	7.3	Sound Level at Driver's Ear according to EN 12053		dB	70	70
