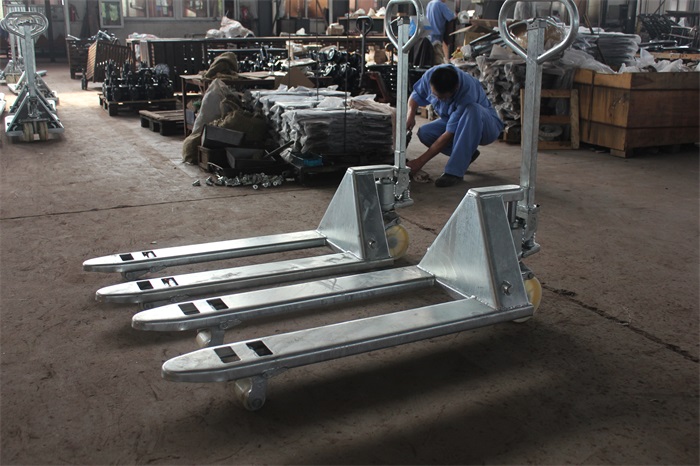

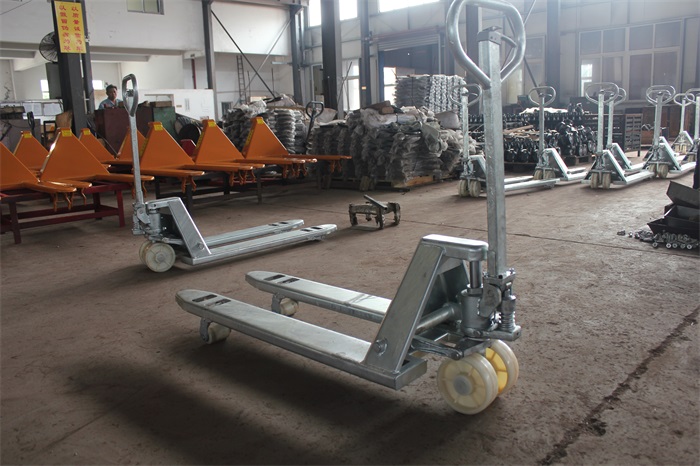

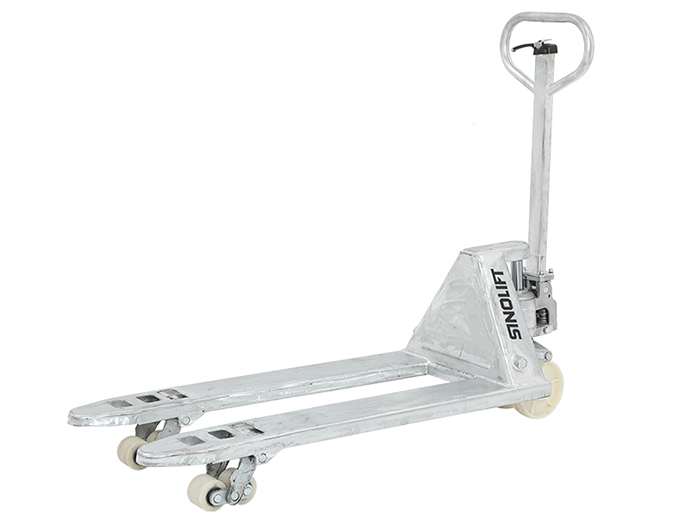

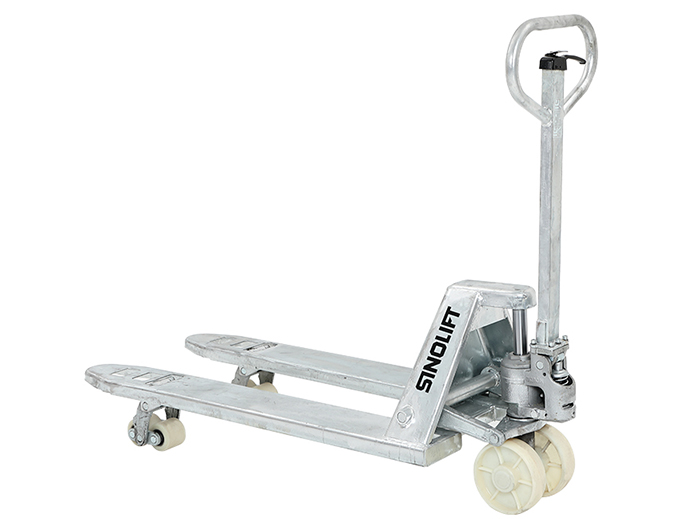

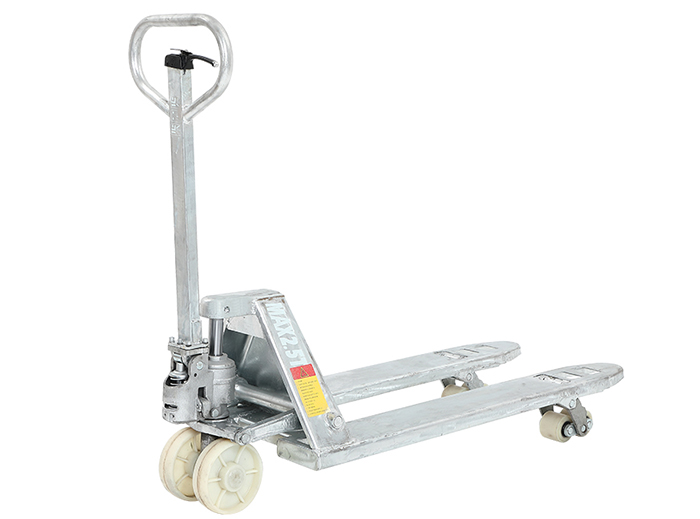

Name:NAG Galvanized Hand Pallet Truck
Model:NAG
Product Introduction:Characterized by their great resistance to corrosion, the galvanized and stainless steel hand pallet trucks are perfect for working in humid conditions or environments where high hygiene standards must be respected.

DESCRIPTION

Galvanized Pallet Truck is an indispensable tool for handling. It is suitable for corrosive environments (damp environments, saline).

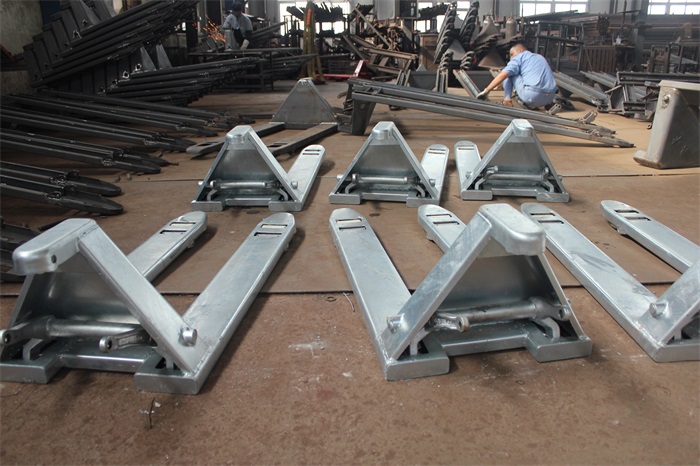

Our Galvanized Pallet Trucks receive a Galvanizing process that gives durable corrosion protection, which stands up to the constant abrasion of pallet entry and exit. Fully galvanized mainframe, wheel forks, brackets, push rods and handle. The galvanized hand pallet trucks are ideal for hygienic environment such as food and the pharmaceutical industries.


PRODUCT BENEFITS

•Robust pallet truck with tray head and reinforced sills.

•Hot-dip galvanized for better resistance over time.

•Bearings, axles, screws and bolts in stainless steel.

MODEL

NAG series

Rated Capacity (Kg)

1500/2000/2500/3000/5000

Width over forks (mm) *1

W1

460/520/540/550/680/685

Fork length (mm) *1

L1

810/ 980/1070/1150/1220

Min. Fork Height (mm)

H2

80

Max. Fork Height (mm)

H1

200

Steering Wheel (mm)

A

180x62 NYLON or PU

Load Wheel (mm) *2

B

78x70 (Tandem)

Weight (kg)

78

Under Clearance (mm)

40

Fork width (mm)

W2

150

Width inside forks (mm)

160,220,240,250

Strokes

50

Overall Height (mm)

C

1200

Overall Length (mm)

1500

Steer Angle

230 deg

Drive Unit Length (mm)

370

*1  W1 and L1 with over width and over length can be made according to customer's requirement

*2  78*100 single wheels are options
