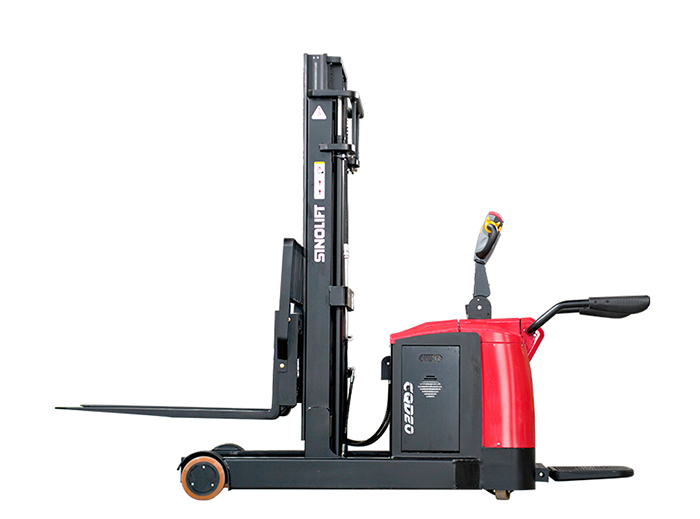

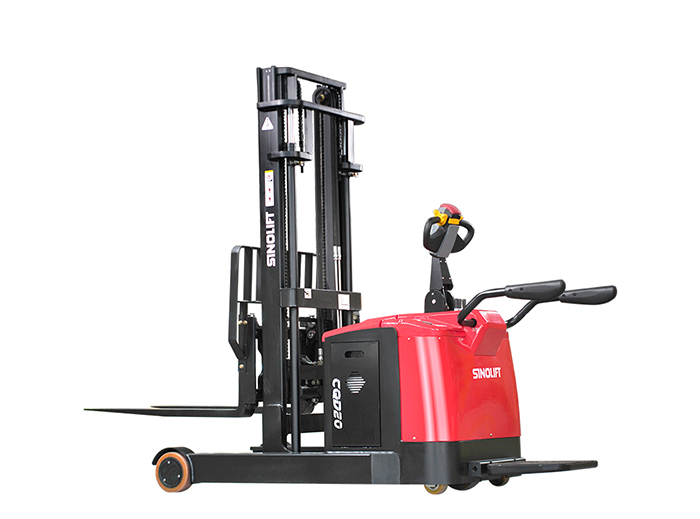

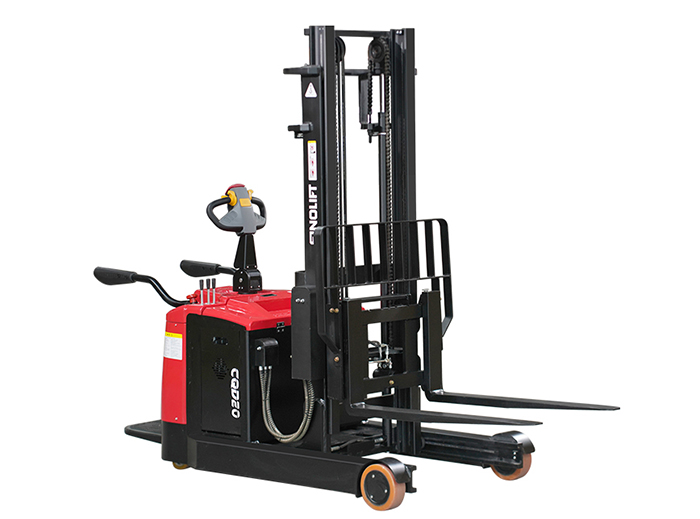

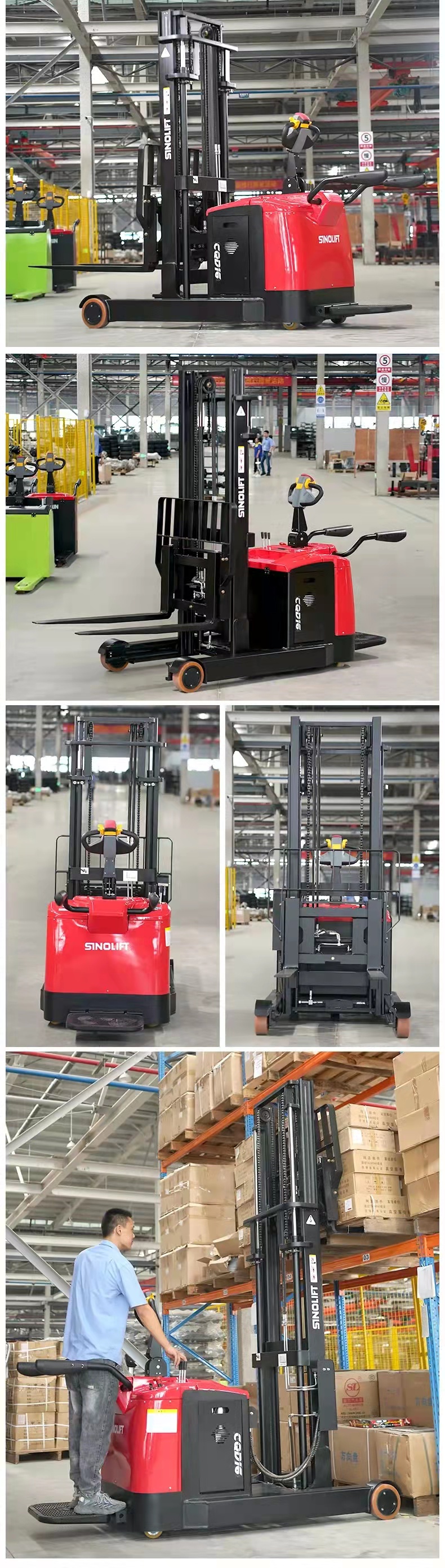

Name：CQD16 CQD20 Electric Reach Stacker
Model：CQD16 CQD20
Product Introduction：This fully-powered pallet stacker has a forward extending mast and a counterbalance built into the back. This shifts the forks beyond the front legs which allow it to drive right up to shelving units without contacting the shelf legs or pallets on the ground. This machine features both electrically powered lifting and driving, removing all effort from the operator to move heavy loads. Similar to a forklift, this stacker has a tilting mast to provide greater stability when lifting and transporting a load.

Designed for easy and precise control, the goods handling goes smooth and precisely resulting in high performance levels.

The driver is at ease with the simple and logical fingertip controls placed on the ergonomic console with integrated wrist rest. The electric steering allows effortless safe and precise maneuverability.

The fully adjustable cockpit even offers an adjustable footplate to ensure that every driver finds his most comfortable drive position. The low and open footstep allows easy moving in and out of the truck. The pedal layout is identical to a car so no adaptation is necessary.

Form follows function - the CQD16 CQD20 is a practical easy to operate reach truck which is designed to deliver high maneuverability, reliability and safety to materials handling operations.

• Stable lifting and dependable stability.

• Excellent maneuverability for narrow space.

• A shock absorption function for the mast absorbs any shock occurring from friction while lifting.

• Advanced steering and Multi-display.

• Easy management of multiple functions.

Identiﬁcation	1.1	Manufacture's type designation			SINOLIFT
	1.2	Model			CQD16	CQD20
	1.3	Power Type			Electric
	1.4	Type of Operation			Stand-on
	1.5	Steering Mode			Electric Power Steering
	1.6	Load Capacity/Rated Load	Q	kg	1600	2000
	1.7	Load Center Distance	C	mm	600	600
	1.8	Load distance, the center of drive axle to fork	x		160	160
	1.9	Wheelbase	y	mm	1440	1610
Weight	2.0	Total Weight (with Battery)		kg	1980	2000
	2.1	Axle Load (laden):Drive side/Load-bearing side			/	1
	2.3	Axle Load (unladen):Drive side/Load-bearing side		kg	/	/
Dimension	3.1	Overall Length (Pedal Retracted/Expanded)	L1/L2		2335/2750	2435/2870
	3.2	Overall Width	W1/W2	mm	880/1030	880/1030
	3.3	Lift Height	h1	mm	3000	3000
	3.4	Height with Mast Lowered	h2		2040	2040
	3.5	Height with Mast Extended	h4	mm	3855	3855
	3.6	Free Lift Height	h5		/	/
	3.7	Fork Dimension	l/e/s	mm	1070×100×40	1070×122×40
	3.8	Fork Mounting Class			2A	2A
	3.9	Fork Carriage Spread Width	b2	mm	220-690	220-690
	3.1	Fork Carriage Tilt forward/backward	α/β	°	2/4	2/4
	3.11	Inner Width of Straddle Leg	b3		748	748
	3.12	Reach Distance	L3	mm	580	680
	3.13	Height of Straddle Leg	h6	mm	235	235
	3.14	Ground Clearance at the Center of Wheelbase (Min.)	m1		55	55
	3.15	Height of Operating Handlebar (Min./Max)	h14	mm	1000/1450	1000/1450
	3.16	Turning Radius (Pedal Retracted/Expanded)	Wa		1710/2145	1910/2340
	3.17	Min.Aisle Width (Pallet size 1000*1200)(PedalRetracted/Expanded)	Ast	mm	2835/3270	2955/3485
	3.18	Min.Aisle Width (Pallet size 800*1200)(Pedal Retracted/Expanded)	Ast	mm	2785/3220	2900/3330
Tyre	4.1	Tyre Type			Polyurethane	Polyurethane
	4.2	Tyre Size (Front)			φ210x85	φ210x85
	4.3	Tyre Size (Balance Wheel)		mm	φ115x55	φ115x55
	4.4	Tyre Size (Driving Wheel)		mm	φ230x75	φ230x75
	4.5	Wheels Quantity, Front/Rear (x=Driving Wheels)			2/1x+2	2/1x+2
Performance	5.1	Traveling Speed (Laden/Unladen)		Km/h	5/5.5	4/5
	5.2	Lifting Speed(Laden/Unladen)		mm/s	80/130	80/130
	5.3	Lowering Speed (Laden/Unladen)		mm/s	150/100	150/100
	5.4	Max. Gradient Performance S2 5min (Laden/Unladen)		%	5/8	4/8
	5.5	Service Brake Type			Electromagnetic	Electromagnetic
	5.6	Parking Brake Type			Electromagnetic	Electromagnetic
Power Unit	6.1	Drive Motor Rating (AC) S2-60min			1.5	1.5
	6.2	Lift Motor Rating (DC) S3 15%		kW	3	3
	6.3	Battery Voltage/Capacity K5		V/Ah	24/240	24/240
	6.4	Battery Weight		kg	200	200
Others	7.1	Controller Brand			CURTIS	CURTIS
	7.2	Controller Model			1232E	1232E
	7.3	Sound Level at Driver's Ear According to EN12053		dB	70	70
