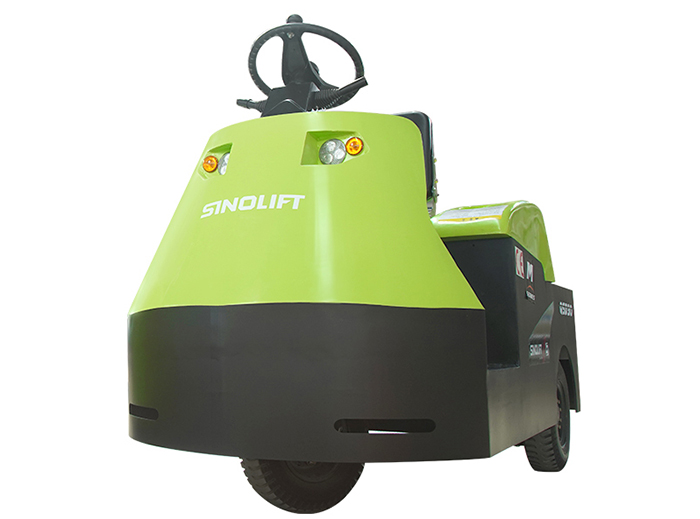

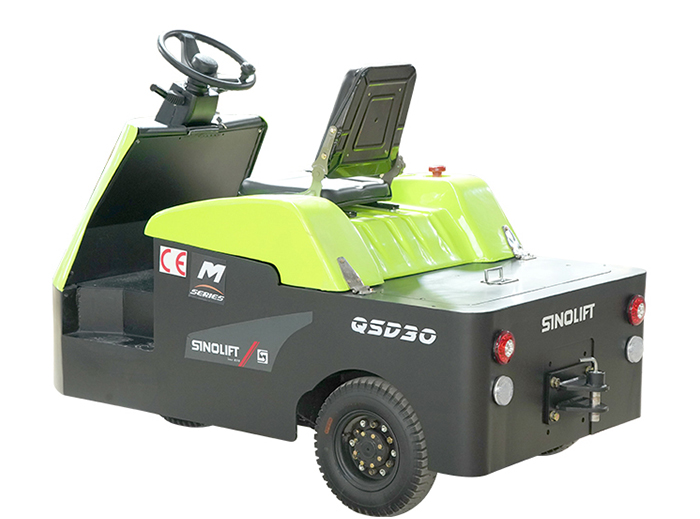

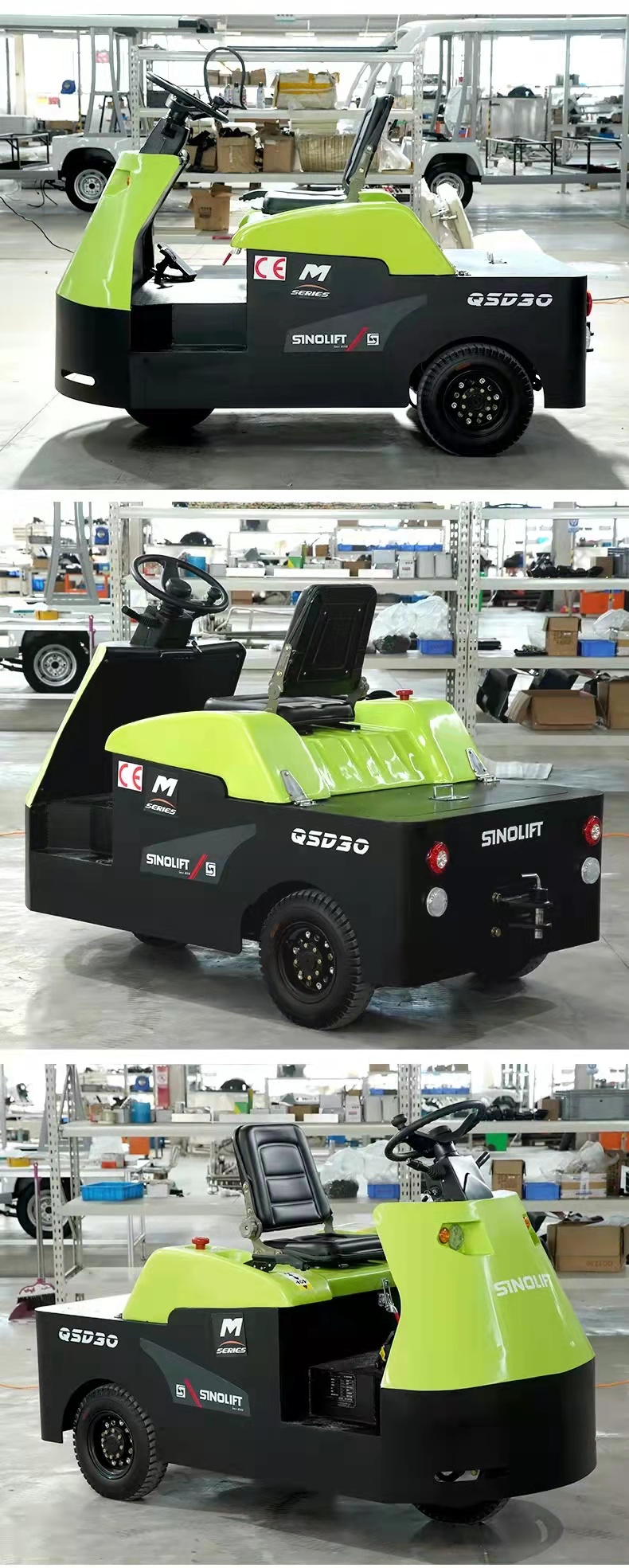

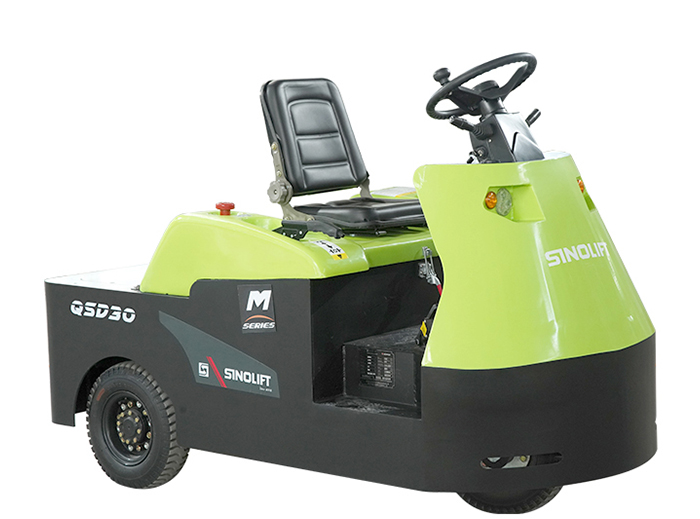

Name：QSD30 QSD60 Rider Electric Towing Tractor
Model：QSD30 QSD60
Product Introduction：The QSD30/QSD60 rider seated electric tow tractor includes German engineering and design aspects which power over the competition in strength, versatility and usability. This electric rider tow tractor is perfect for regularly towing heavy products and industrial equipment throughout your facility. The battery powered tractor makes virtually no noise as it effortlessly moves materials from point A to point B in your distribution plant, factory or warehouse application.

Features

· Wheelbase provides a tight turning radius for maximum maneuverability and control in confined work environments.

· Rear Bridge Drive Unit provides excellent power and gradeability.

· Ergonomically Designed Compartment allows easy operation of all controls and pedals to help reduce operator fatigue.

· Forward/Reverse Lever and a floor- mounted accelerator pedal provides fast and easy direction control changes.

· Heavy duty suspension seat with arms, multi-angle back support, sliding

· base and safety belt, which improve overall operator comfort and safety.

· Low Step Height allows for easy entry and exit.

· Small-Diameter Steering.

Identification	1.1	Manufacture's type designation		SINOLIFT
	1.2	Model			QSD30	QSD60
	1.3	Power Type		Electric
	1.4	Type of operation		Seated
	1.5	Steering Mode		Electric Power Steering
	1.6	Wheelbase.	y	mm	1110	1110
Weight	2.1	Total Weight(with battery)		kg	985	1180
Weight	2.2	Axde Loadunladen:Drive: sde/ad-bearigside		kg	/	/
Dimension	3.1	Overall length	1	mm	2030	2030
	3.2	Overall width	W1	mm	1020	1020
	3.3	Overall height	h5	mm	1350	1350
	3.4	Coupling Height(Hook center above ground)	h1	mm	300/350/400	300/350/400
	3.5	Seat height	h2	mm	965	965
	3.6	Ground Clearance at the center of wheelbase(Min)	m1	mm	110	110
	3.7	Turning Radius	Wa	mm	1520	1520
Tyre	4.1	TyreType			Inflatable rubber wheel	Inflatable rubber wheel
	4.2	Tyre Size(Front)			4.00-8	4.00-8
	4.3	Tyre Size(Rear)			4.00-8	4.00-8
	4.4	Wheels Quantity, front/rear (x=drving wheels)			1X/2	1X/2
Performance	5.1	Traveling Speed(aden/unladen)		Km/h	7.5/15	7.5/15
	5.2	Rated Draw-bar Pull	F	N	3800	4500
	5.3	MaxGradient Performance S25min (laden/unladen)		%	6/15	6/15
	5.4	Service Brake Type			Hydraulic	Hydraulic
	5.5	Parking BrakeType			Mechanical	Mechanical
Power Unit	6.1	Drive Motor Rating(AC)S2-60min		kW	5	5
	6.2	Battery Voltage/Capacity K5		V/Ah	48/200	48/350
	6.3	Battery Weight		kg	360	545
Others	7.1	Controller Brand			CURTIS	CURTIS
	7.2	Controller Model			1232SE	1232SE
	7.3	Sound level at driver's ear according to EN 12 053		dB	70	70
