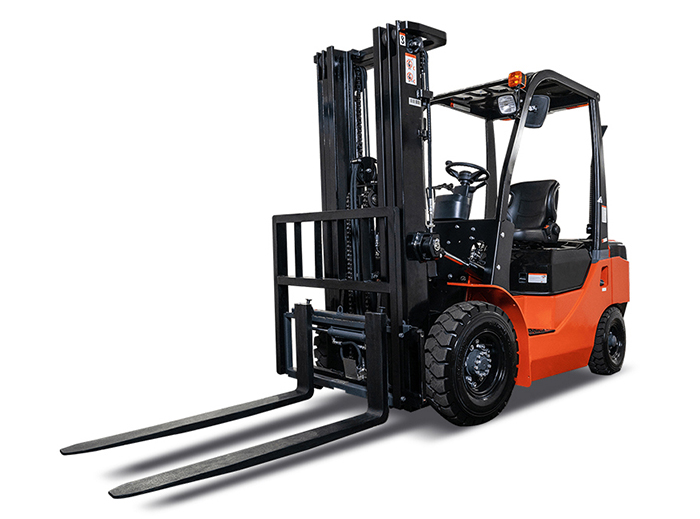

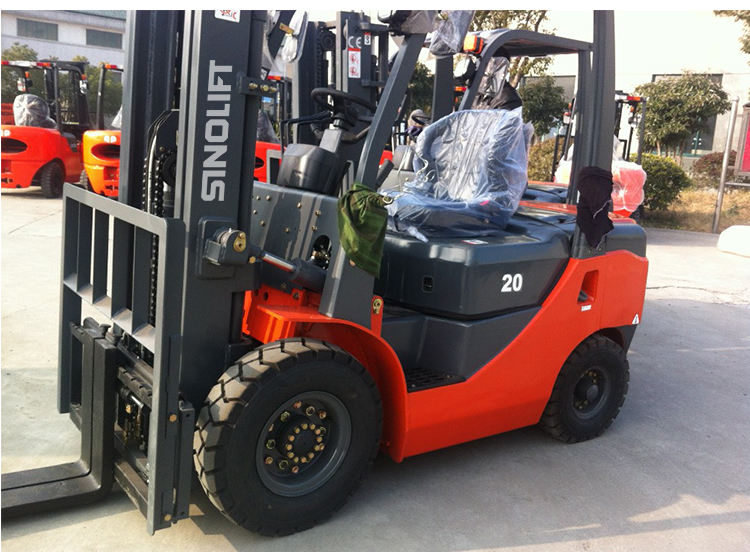

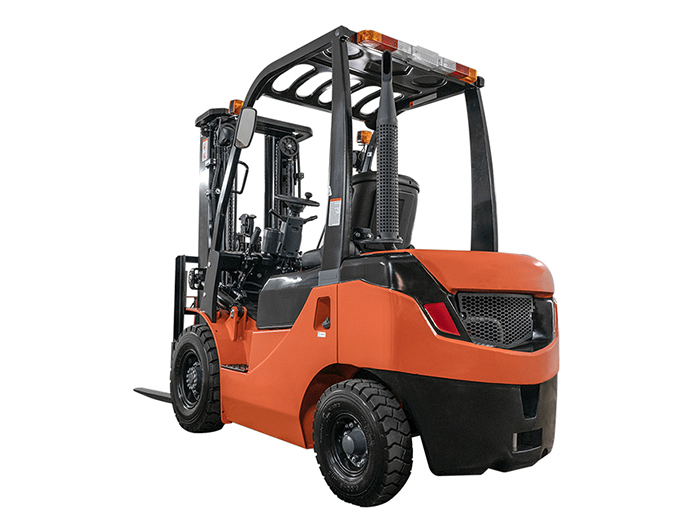

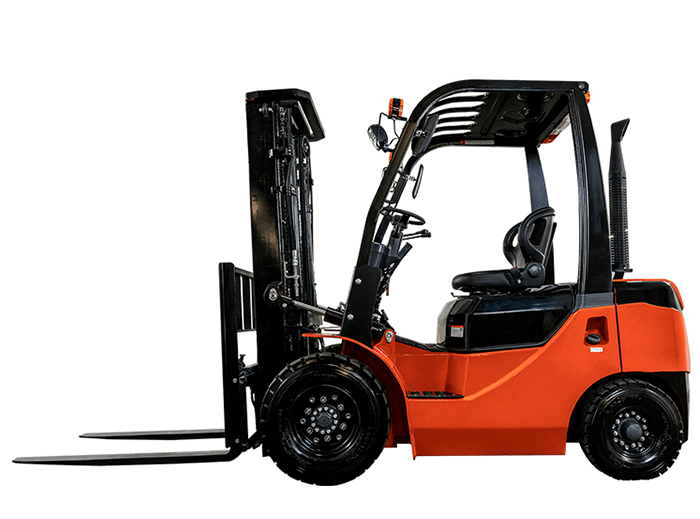

Name:2.0 Ton Diesel Forklift (CPCD20G)
Model:CPCD20G
Product Introduction:The SINOLIFT® 2.0 Ton Fork Trucks are designed to exceed expectations in a variety of different work-spaces. Whether your job is indoors or outdoors, these trucks deliver great performance and the best value. These trucks are fitted with the most trusted components in the material handling industry, most notably the powerful Engine.

SINOLIFT forklift new generation diesel counter balance forklift advantages:

1. Strong Power System. We follow the strict environmental design, all engines match the China Ⅲ or even higher emission standards.

2. Super comfortable. SINOLIFT forklifts are all with comfortable driving space, adjustable steering wheel and seats, super low and non-slip step, suspension steering axle, storing space, and convenient LCD panel.

G Series Internal Combustion Balance Weight Forklift

The G series are built to international standards, and to boost your productivity, the Drive train is powered by an indigenous, powerful engine that is environment friendly. And an indigenous power shift automatic torque converter transmission with soft touch electric gear shift and inching control for precise load and truck movements. With travel speeds of up to 20km/h and lift/lower speeds of 0.5m/sec; with gradeability of up to 20%, few forklifts can match the G series in performance. You also have lifting height options up to 6 meters and a range of fitments and attachments such as clamps for paper reels, drums, bales, etc.

With its unsurpassed travel speed, you can service more stations faster. The lifting and lowering speeds are faster. The small turning radius ensures that you move between aisles fasters. Your operations can work smarter as there is better visibility a comfort at all times. And with cycle times reduced you will see how the G series can do wonders to your productivity.


Of all the features in the G series, comfort comes first. No other vehicle offers your operator more comfort. Check this out. Soft touch accelerator and brake pedal for fatigue free operation. Cowl mounted angled hydraulic control levers so that the operator does not have to 'reach out'. A solenoid switch shuts offer engine effortlessly. Feather touch power steering that makes maneuvering a pleasure.

An operator cell placed on rubber mounts absorbs engine vibration. Special insulation works together to keep out the heat and sound. All of which ensures that your operator gives you twice as much for half the effort.


Safety is another feature that you can take for granted with the G series. It has a neutral start switch that prevents the vehicles rom starting in gear. The brake fluid levels can be monitored by the operator at all times. And it also comes with load lowering control valve and hose burst valve that takes care of any emergencies. G series also include LPG fueled trucks where emissions are only what you get in the kitchen. The G series engines conform to US EPA Tire II and EURO II norms.


The truck has minimal emission, noise and vibrations.


The G series has been designed to ensure minimum maintaining. A coolant based system helps you monitor the brake fluid. And a unique testing facility helps you check the functioning of the LED indicators on the dashboard panel. Besides, the single piece engine hood is equipped with a gas spring for easy service access. The presence of a lateral power steering reduces the number of moving parts. The sub-assemblies are accessible and weld laid out the dashboard panel. All of which means that the G series you are assured of maximum uptime.

Model

CPCD20G-W1

1

Power Type

Diesel

2

Rated Capacity

kg

2000

3

Load Centre

mm

500

4

Lift Height

mm

3000

5

Fork Size (L×W×T )

mm

1070×120×40

6

Mast Tilt Angle (F/R)

Deg

6°/12°

7

Front Overhang (Wheel center to fork face)

mm

470

8

Ground Clearance(Bottom of mast)

mm

120

9

Turning Radius (outside)

mm

2170

10

Min. Intersecting aisle

mm

1920

11

Max.Gradeability (No load/Full load)

%

20

12

Wheelbase

mm

1600

13

Service weight

kg

3350

14

Battery (Voltage/Capacity)

V/Ah

12/80

15

Overall Dimension

Length to face of fork(Without fork)

mm

2460

16

Overall Width

mm

1150

17

Mast Lowered Height

mm

1985

18

Mast Extended Height(With backrest)

mm

4030

19

Overhead Guard Height

mm

2070

20

Speed

Travel (No load)

km/h

19

21

Lifting(Full load)

mm/s

490

22

Tire

Front

mm

7.00-12-12PR

23

Rear

mm

6.00-9-10PR

24

Engine

Model

C240 PKJ

25

Manufacture

ISUZU

26

Rated output/r.p.m.

kw

35.4/2500

27

Rated torque/r.p.m.

N·m

139/1800

28

No.of Cylinder

4

29

Bore×Stroke

mm

86×102

30

Displacement

cc

2369

31

Fuel Tank Capacity

L

60

32

Transmission

Type

Powershift

33

Stage FWD/RVS

1/1

34

Operating Pressure for Attachment

Mpa

17.5
