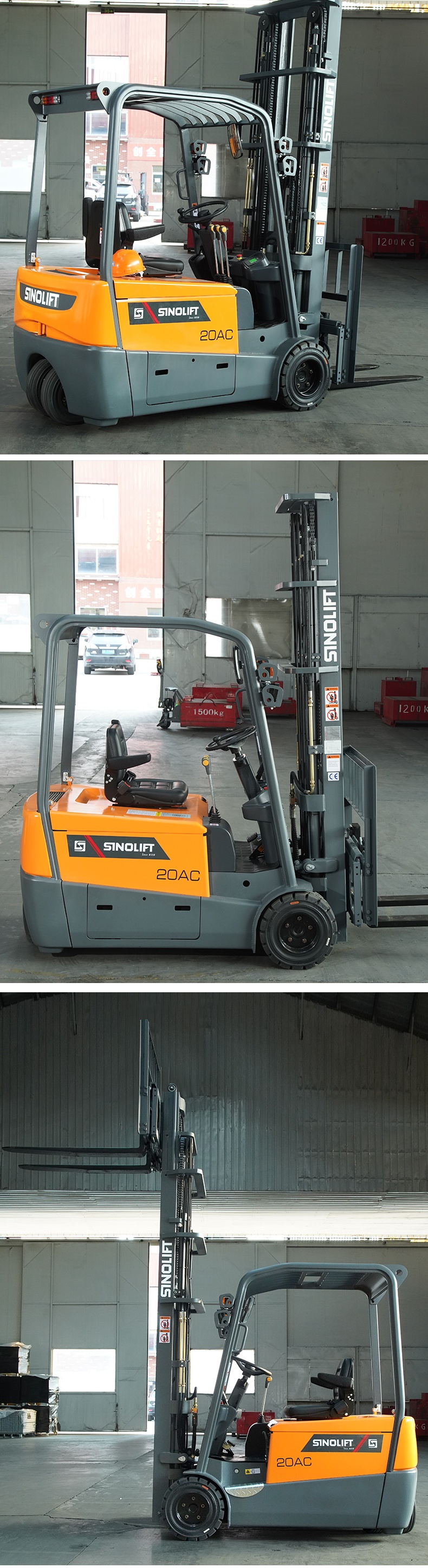

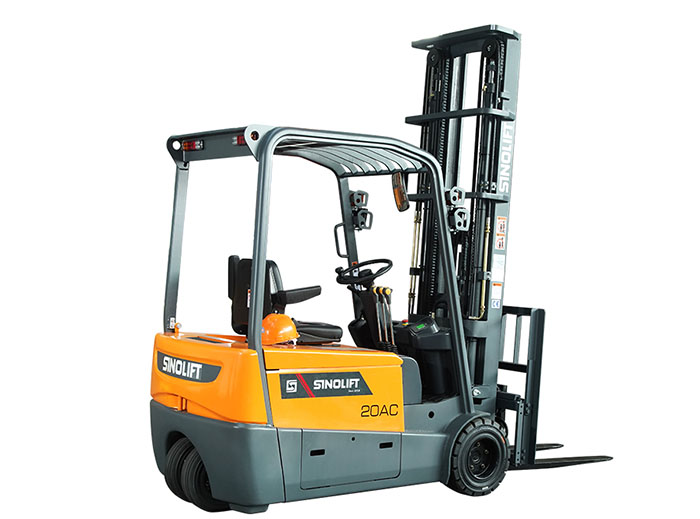

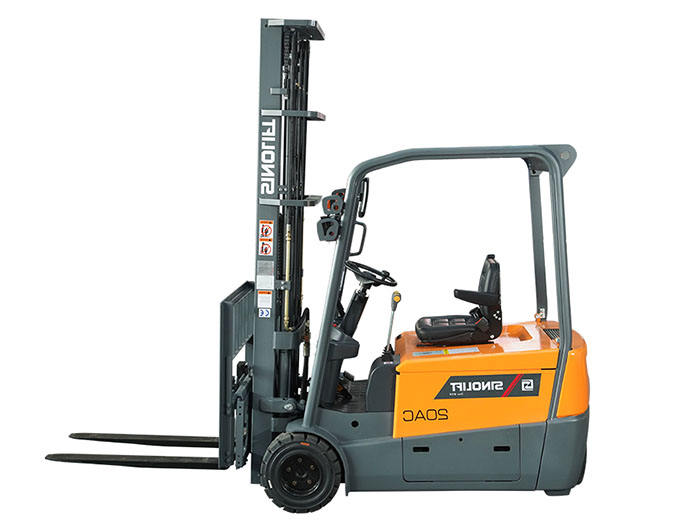

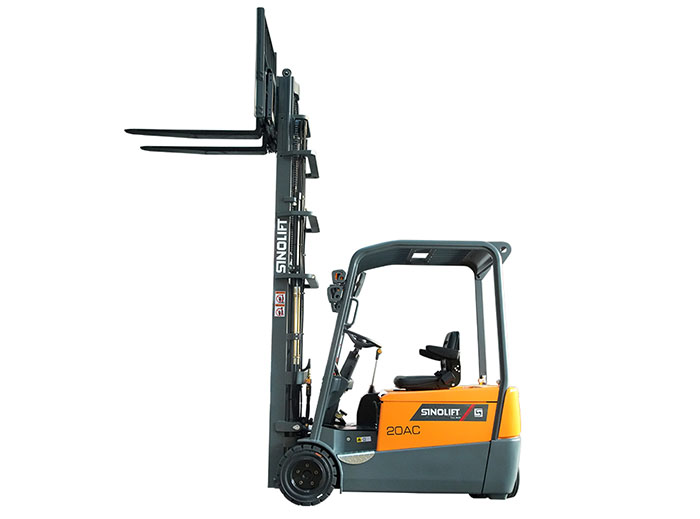

Name：2.0 Ton Three Wheel Electric Forklift (CPD20SA)
Model：CPD20SA
Product Introduction：The new electric counterbalanced lift trucks are built to handle the toughest of workspaces and tailored for material handling in tight, fast paced environments.

User-friendly

The CPD20SA forklift conception enables all drivers, experts or not, to master all functions of the truck easily and quickly.

The mechanical levers and the position of controls are intuitive and comfortable.

Easy to maintain

The access to the components is really important to ensure quick and efficient maintenance. The major elements are reached with a minimum of handling. Popular brands components are mostly standardized to facilitate the spare parts management.

Easy access and driving

The CPD20SA basics are quick to master. The controls are ergonomic: the mechanical levers ensure a good right arm position and the small steering wheel limits efforts.

The car-like pedals are really intuitive even for inexperienced operators.

The access to the driver’s seat is easy thanks to a wide and low step and a long handgrip on the left forward upright.

Safety

The CPD20SA complies with current regulations, particularly the norm which requires a cut off of movements (translation and lifting) as soon as the operator leaves his seat.

The SINOLIFT standard forklift trucks are equipped with a complete lights kit: front and rear, indicators and flashing beacon. Noiseless by nature, it is important for electric forklifts to be seen in their environment.

Characteristics
1.1	Manufacturer(abbreviated)		SINOLIFT	SINOLIFT	SINOLIFT
1.2	Type		CPD20SA-16	CPD20SA-18	CPD20SA-20
1.3	Driving model：Electric(Storage battery)		Electric Dual front driving wheel	Electric Dual front driving wheel	Electric Dual front driving wheel
1.4	Driving model（Manual, Walking, Stand driving, Seat driving ,Order picking）		Seating driving	Seating driving	Seating driving
1.5	Rated load	Q(kg)	1600	2000	2000
1.6	Load center distance	c(mm)	500	500	500
1.8	Front overhang	x(mm)	358	358	358
1.9	Tread	Y(mm)	1362	1362	1465
Weight
2.1	Service weight(with battery)	kg	3220	3280	3450
2.2	Axle load, front/rear, laden	kg	3955/865	4166/914	4469/981
2.3	Axle load, front/rear, unladen	kg	1425/1795	1455/1826	1625/1997
Wheel chassis
3.1	Wheels (rubber, high elasticity, pneumatic tyre, polyurethane wheel)		super elastic solid tires	super elastic solid tires	super elastic solid tires
3.2	Wheel dimension, front		18x7-8	200/50-10	200/50-10
3.3	Wheel dimension, rear		15 x4 1/2 -8	15 x4 1/2 -8	140/55-9
3.5	Wheel number, front/rear （x = driving wheel）		2x/2	2x/2	2x/2
3.6	Tread, front	b₁₀(mm)	920	937	937
3.7	Tread, rear	b₁₁(mm)	165	165	188
Dimension
4.1	Mast /fork-front /caster angle	°	3/6	3/6	3/6
4.2	Height of mast, lowered	h₁(mm)	2000-2660	2000-2660	2000-2760
4.4	Lift height	h₃(mm)	3000-6200	3000-6200	3000-6500
4.5	Max. height of mast, extended	h₄(mm)	4000-7200	4000-7200	4000-7500
4.7	Overhead guard height（cab）	h₆(mm)	2005	2005	2005
4.8	Seat height /standing	h₇(mm)	938	938	938
4.12	Traction bolt heiht	h₁₀(mm)	560	560	560
4.19	Overall length	l₁(mm)	2880	3000	3100
4.2	Length to fork face	l₂(mm)	1930	1930	2030
4.21	Overall width of truck body	b₁(mm)	1070	1130	1130
4.22	Fork dimension	s/e/l(mm)	35/100/950	40/100/1070	40/120/1070
4.23	Fork DIN 15 173，grade/typeA，B		2A	2A	2A
4.24	Overall width of fork	b₃(mm)	1088	1088	1088
4.31	Ground clearance from lower mast	m₁(mm)	90	90	90
4.32	Ground clearance from load center	m₂(mm)	100	100	100
4.33	Aisle width, with pallet 1000x1200(1200 crosswise)	A_st(mm)	3120	3120	3200
4.34	Aisle width, with pallet 800x1200(1200 lengthwise)	A_st(mm)	3220	3220	3300
4.35	Turning radius	W_a(mm)	1552	1552	1652
Performance Data
5.1	Traveling speed, laden/unladen	Km/h	14/14	14/14	13/13
5.2	Lifting speed, laden/unladen	m/s	0.29/0.45	0.27/0.42	0.25/0.42
5.3	Descending speed, laden/ unladen	m/s	0.45/0.43	0.45/0.43	0.45/0.43
5.8	Max. gradeability, laden/unladen	%	15/20	15/20	15/20
Motor
6.1	Driving motor power	kW	2*4.5(AC)	2*4.5(AC)	2*4.5(AC)
6.2	Lifting motor power	kW	10(AC)	10(AC)	10(AC)
6.4	Battery voltage/rated capacity	V/Ah	48/420(490)	48/490(560)	48/560(640)
6.5	Battery weight	kg	720	760	800
Additional data
8.4	Noise level at operator’s ear, according to DIN12053	dB(A)	68	68	68
