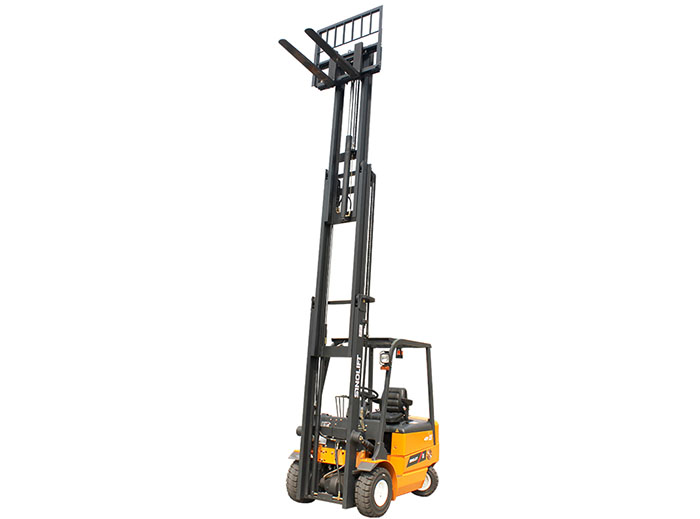

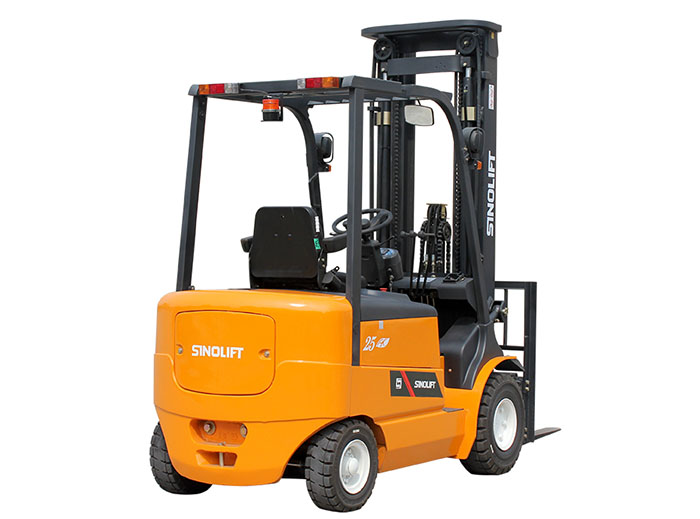

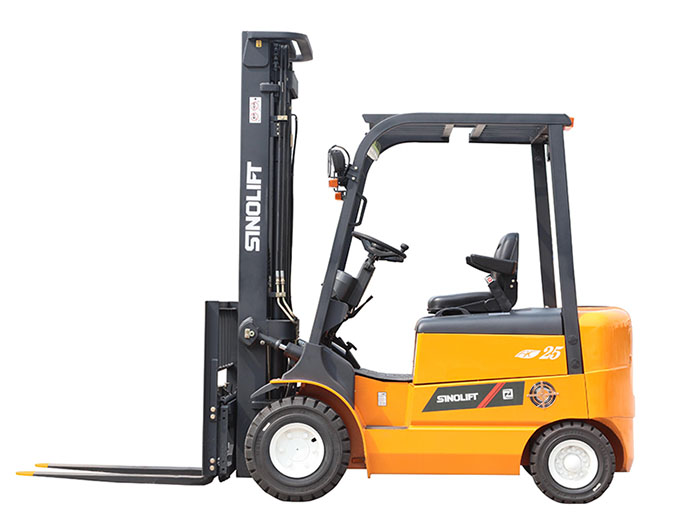

2.5 Ton Electric Forklift Truck (CPD25J)

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

Name：2.5 Ton Electric Forklift Truck (CPD25J)
Model：CPD25J
Product Introduction：Arc streamline body, beautiful, wide visual view, low center of gravity, safety and high reliability. We offer 2.5 Ton electric forklifts with lifting motor. It is arranged in the side of the frame so that it is easy for maintenance and service.

Features:

1) Itanlian SEM full -AC controlers.

2) Full-AC import drive and hydraulic motor

3) High- capacity battery

4) Import Multifuntion LCD instrument

5) Turning angle sensor makes the truck travel smoothly and safely when turning

General	Manufacturer				SINOLIFT J Series 2.5T Battery Forklift Specifications
	Model				CPD25J
	Power type				Battery
	Rated capacity				2500
	Load center				500
Dimensions	Lift height H				3000
	Free lift E				140
	Fork size N×U×L				1070×120×45
	Fork outside spread (Min./Max.)				240/1040
	Mast tilt angle (forward/backward) α / β				6/10
	Front ovehang A2				464
	Overall dimensions	Length to face of fork A1			2381
		Overall width B1			1265
		Mast lowered height H1			2040
		Mast extended height H3			4240
		Overhead guard height H2			2125
	Turning radius R				2100
	Min. right angle aisle width X				2150
	Min. right angle stacking aisle width RASA				3755
Performance	Travel speed (no load / full load)				14/12
	Lifting speed (no load / full load)				420/300
	Max. pull force (full load)				8
	Services weight				4360
	Max. gradebility				10
Wheel & Tire	Tyre			Front	23×9-10-18PR
				Rear	18×7-8-14PR
	Tread			Ront B2	1040
				Rear B3	950
	Wheelbase A3				1500
	Ground clearance (no load / full load)			Mast M	105/85
				Fram F	140/120
Power & Control	Battery		Model		D-630(7DB700 option)
			Voltage		48/630 (700)
			Battery Weight		1180(1340)
	Motor		Drive motor	Model	MT754B
				Rated power	8/1300
			Lifting Motor	Model	MT325B
				Rated power	15/2200
	Controller				Italian SME AC controller
