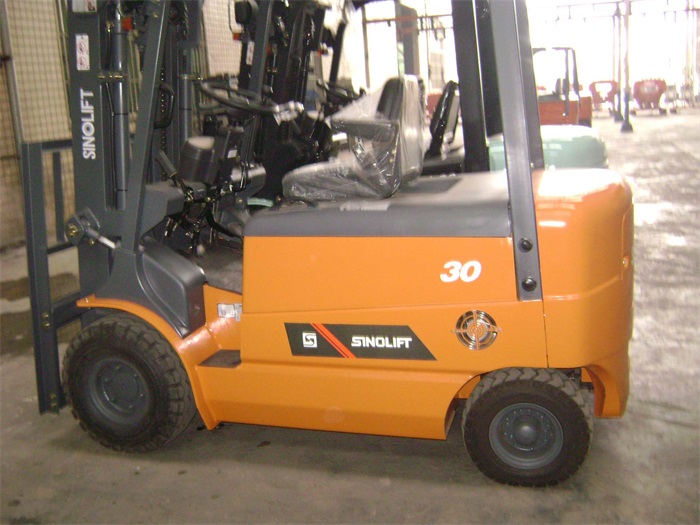

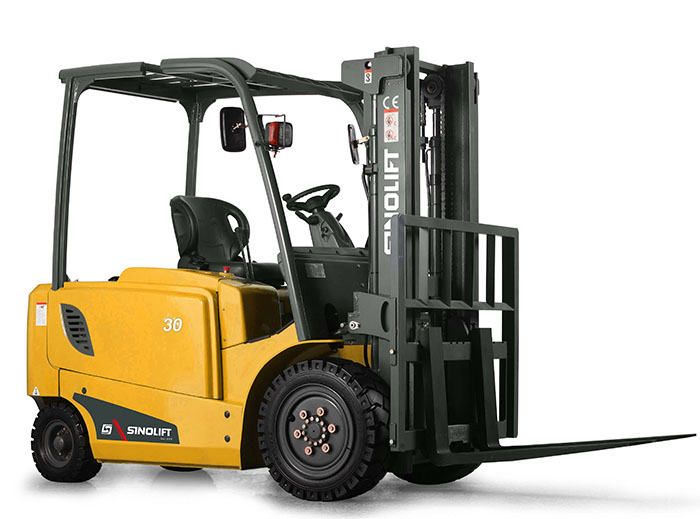

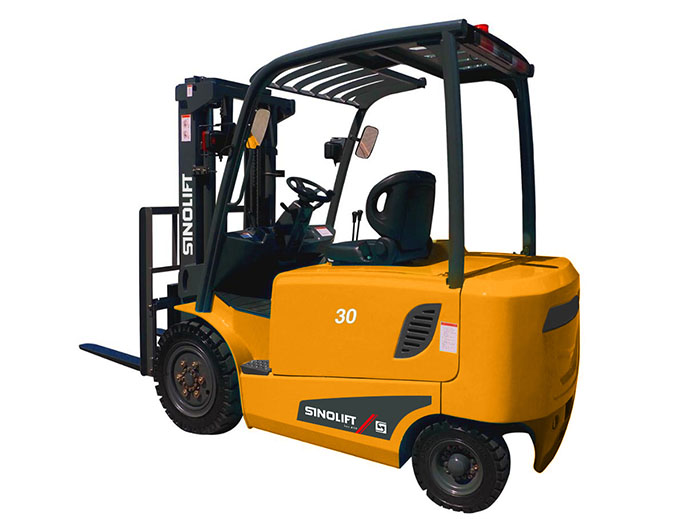

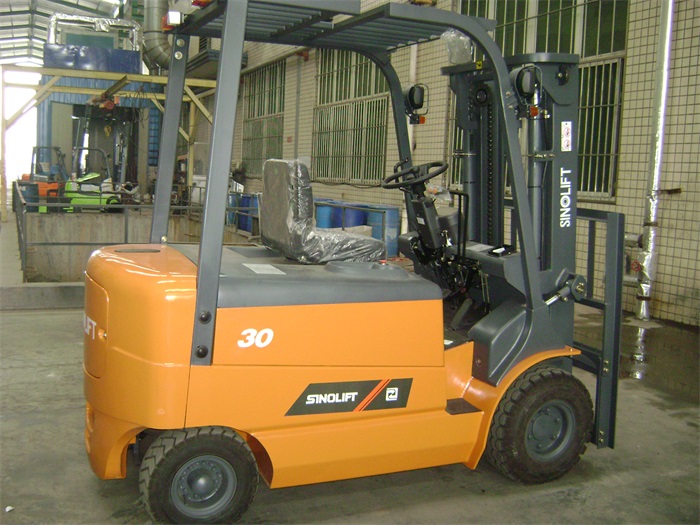

Name:3.0 Ton Electric Forklift Truck (CPD30J)
Model:CPD30J
Product Introduction:The distinctive features of the new 3TON CPD-J series electric four-wheel forklift as follows: Versatility of use due to compact design and minimal operating space requirements. Compact dimensions combined with superb maneuverability. Economy of operation, resulting from minimized maintenance costs.

4-wheel Electric Forklift Trucks

1.5/2.0/2.5/3.0/3.5t

- SINOLIFT 4-wheel electric forklift trucks are the most popular models due to the gentle outline, attractive appearance and excellent performance.

- With capacity from 1.0T to 3.5T, SINOLIFT 4-wheel electric forklifts are well used for all kinds of applications especially warehouse.

- Advanced Technology

- Excellent Hydraulic System

- Maintenance free AC motor Superb Energy-saving Design

- Operator Presence Sensors System (Figures)

- Advanced Intelligent Controller System

- Ultra-low Noise Emission

- Multifunctional Panel Main Display Content: Self Adjust Device for Swerve

General

Manufacturer

SINOLIFT J Series 3T Battery Forklift Specifications

Model

CPD30J

Power type

Battery

Rated capacity

3000

Load center

500

Dimensions

Lift height                                                                H

3000

Free lift                                                                    E

145

Fork size                                                              N×U×L

1070×125×45

Fork outside spread (Min./Max.)

250/1100

Mast tilt angle (forward/backward)                     α / β

6/10

Front ovehang                                                       A2

454

Overall dimensions

Length to face of fork                   A1

2481

Overall width                                 B1

1265

Mast lowered height                      H1

2040

Mast extended height                    H3

4273

Overhead guard height                  H2

2125

Turning radius                                                         R

2230

Min. right angle aisle width                                      X

2280

Min. right angle stacking aisle width                    RASA

3915

Performance

Travel speed (no load / full load)

14.5/12

Lifting speed (no load / full load)

420/280

Max. pull force (full load)

10

Services weight

4850

Max. gradebility

10

Wheel & Tire

Tyre

Front

23×9-10

Rear

18×7-8

Tread

Ront      B2

1040

Rear      B3

980

Wheelbase                                                                   A3

1630

Ground clearance (no load / full load)

Mast       M

105/85

Fram       F

140/120

Power & Control

Battery

Model

D-500(D-600 option)

Voltage

80/500(600)

Battery Weight

1390(1520)

Motor

Drive motor

Model

MT776B

Rated power

13/1500

Lifting Motor

Model

MT800B

Rated power

22/2100

Controller

Italian SME AC  controller

]
