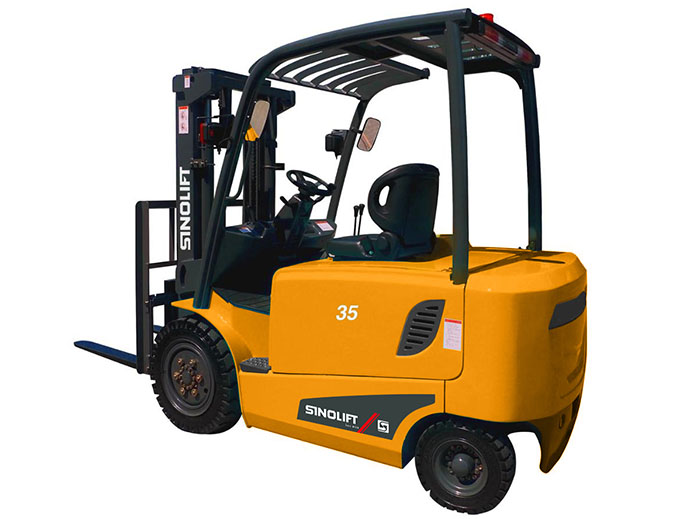

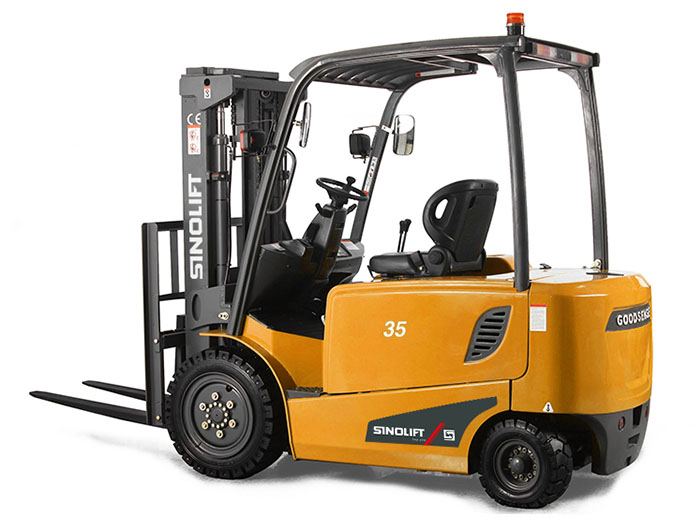

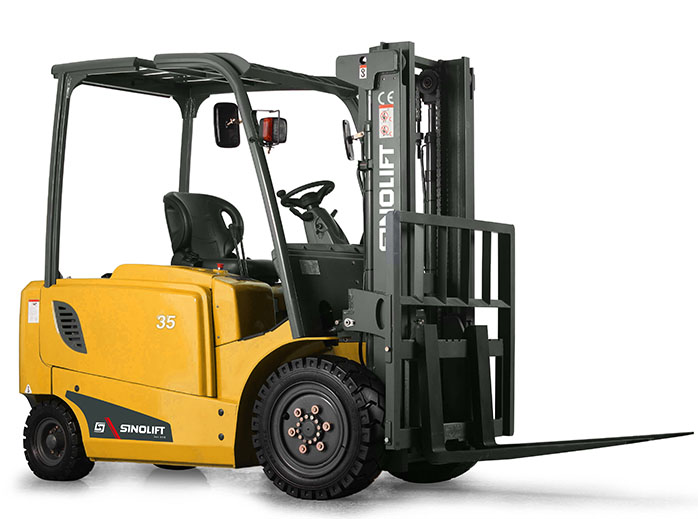

Name：3.5 Ton Electric Forklift Truck (CPD35J)
Model：CPD35J

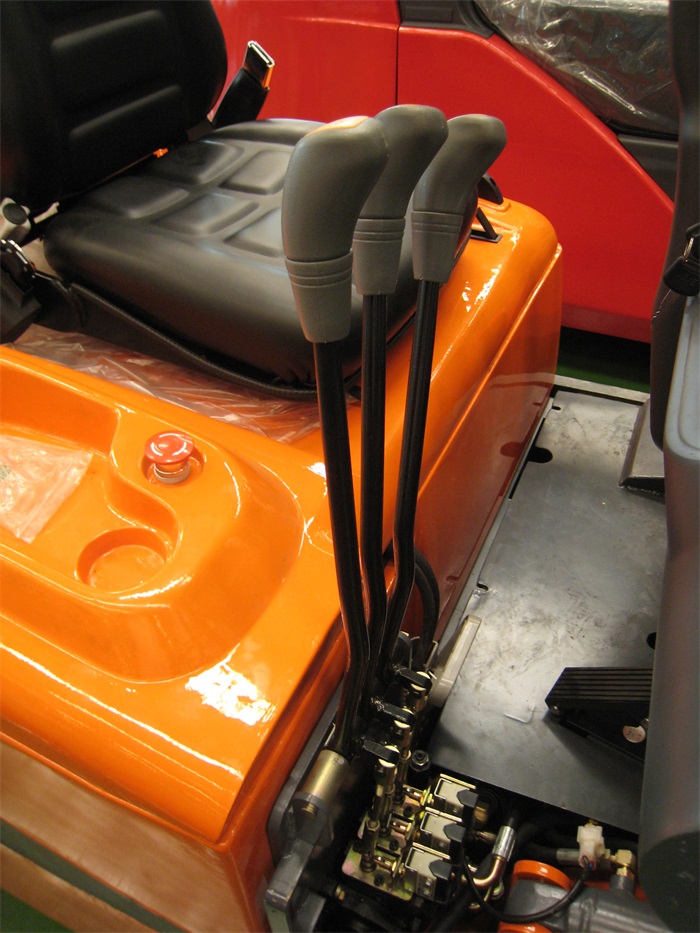

Product Introduction：The seat side hydraulic controls combine ergonomics and simplicity to provide a cost eﬀective and reliable system that maximizes operator productivity. Directional change is performed via the yellow thumb-switch on the lift lever for easy operation.

4-wheel Electric Forklift Trucks

1.5/2.0/2.5/3.0/3.5t

- SINOLIFT 4-wheel electric forklift trucks are the most welcomed models due to the gentle outline, attractive appearance and excellent performance.

- With capacity from 1.0T to 3.5T, SINOLIFT 4-wheel electric forklifts are well used for all kinds of applications especially warehouse.

- Advanced Technology

- Excellent Hydraulic System

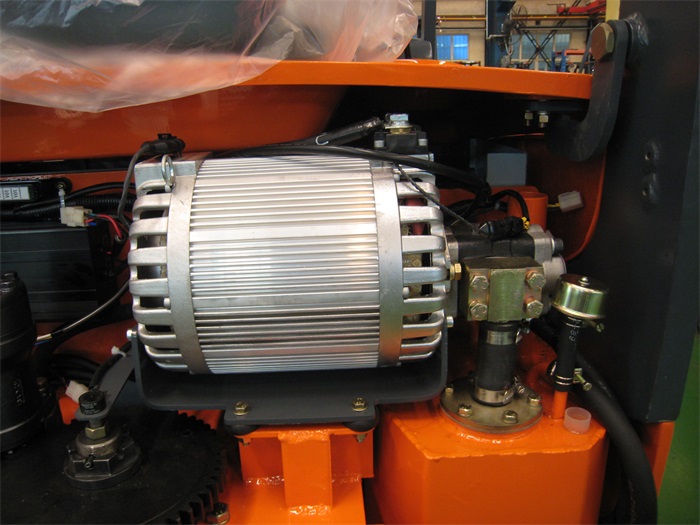

- Maintenance free AC motor Superb Energy-saving Design

- Operator Presence Sensors System (Figures)

- Advanced Intelligent Controller System

- Ultra-low Noise Emission

- Multifunctional Panel Main Display Content: Self Adjust Device for Swerve

Manufacturer				SINOLIFT
Model				CPD35J
Power types				Battery
Rate capacity			kg	3500
Load center			mm	500
Lift height		H	mm	3045
Free lift height		H4	mm	145
Fork size		LxWxT	mm	107013045
Fork outside spread (Min./Max.)		B4	mm	270/1100
Mast tilt angle (forward/backward)		α/β	deg	6/12
Overall dimension	Length to fork face	L1	mm	2644
	Overall width	B1	mm	1250
	Mast lowered height	H1	mm	2230
	Mast extended height	H3	mm	4270
	Overhead guard height	H2	mm	2125
Turning radius		R	mm	2350
Front overhang		X	mm	494
Min. right snagle stacking aisle width		RASA	mm	4044
Full load / no load	Travel speed		km/h	13/14
Full load / no load	Lifting speed		mm/sec	260/450
Max. grade ability			%	12
Service weight			kg	5340
Max. pull force (full load)			KN	10
Type	Front			28*9-15/14PR
Type	Rear			18*7-8/14PR
Tread	Front	B2	mm	1000
Tread	Rear	B3	mm	980
Wheelbase		Y	mm	1700
Ground clearance	Mast	M	mm	115/140
(full load / no load)	Frame	F	mm	150/130
Battery	Voltage		V	80
Battery	Capacity (5h)		Ah	*500/600
Motor	Driver		KW	11.75
Motor	Lift		KW	13.5
Controller				AC
