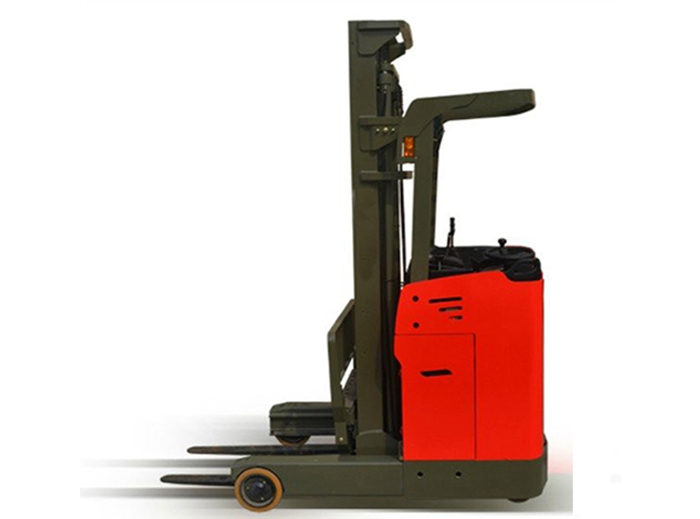

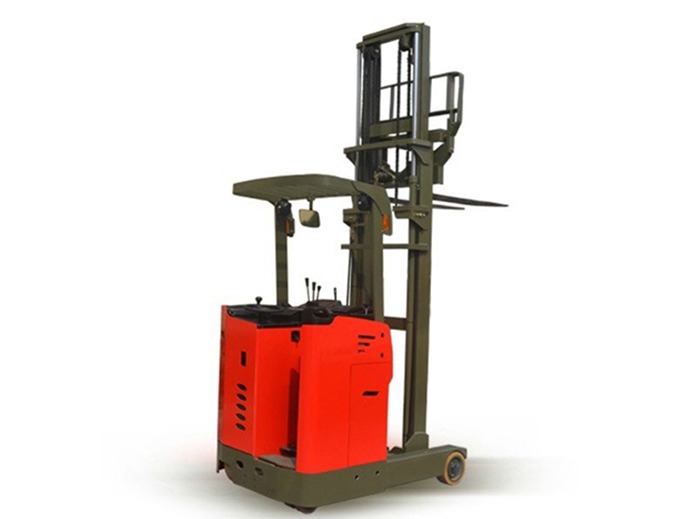

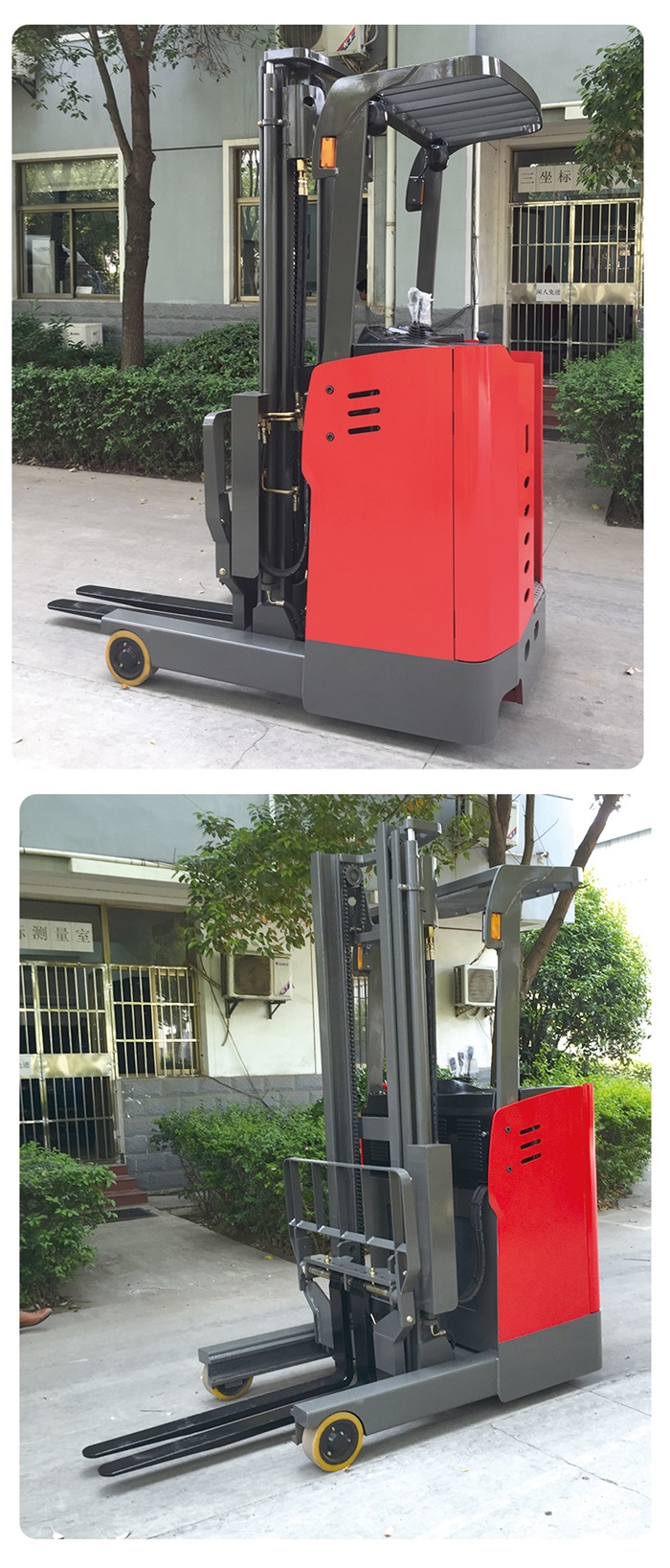

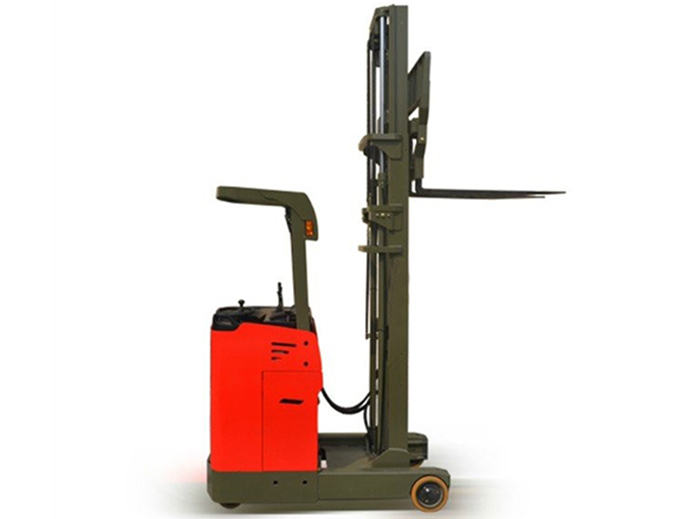

Name:1.0 Ton 1.2 Ton 1.5 Ton  (24V) Electric Reach Truck (CQD10F CQD12F CQD15FD)
Model:CQD10F CQD12F CQD15FD
Product Introduction:The CQD-F series is a stand on type reach truck with load 1.0T- 1.5T. The gantry can be moved forward or retracted as a whole, with a small body and turning radius and higher efficiency.

1. Standard AC drive and EPS electric power steering, better feel and lower energy consumption.

2. Smaller body size with smaller turning radius and right angle stacking channels.

3. With the speed limit function of turning, the automatic deceleration of turning can effectively protect the safety of goods and operators.

4. Ergonomic design: easy to operate valve stem and multi-function intelligent instrument, some models with wheel display function.

5. Advanced Curtis controller, more stable and safer.

Manufacturer

SINOLIFT

SINOLIFT

SINOLIFT

Model

CQD10F

CQD12F

CQD15FD

Power type

Battery

Battery

Battery

Operate type

Stand on

Stand on

Stand on

Service weightincl.battery

kg

1750

2000

2100

Load capacity

Q(kg)

1000

1200

1500

Load center

C(mm)

500

500

500

Lift height

h3(mm)

3000

3000

5000

Fork size

l/e/s(mm)

920/100/35

1070/100/35

1070/100/35

Front overhang

x(mm)

130

140

140

Turning radius

Wa(mm)

1580

Max.gradeability

 %

8%

10%

10%

Traveling speed, laden/unladen

km/h

6/7

7/8

8/10

Lifting speed,Laden/unladen

mm/s

110/160

150/190

220/320

Lowering speed,Laden/unladen

mm/

210/190

190/170

340/290
