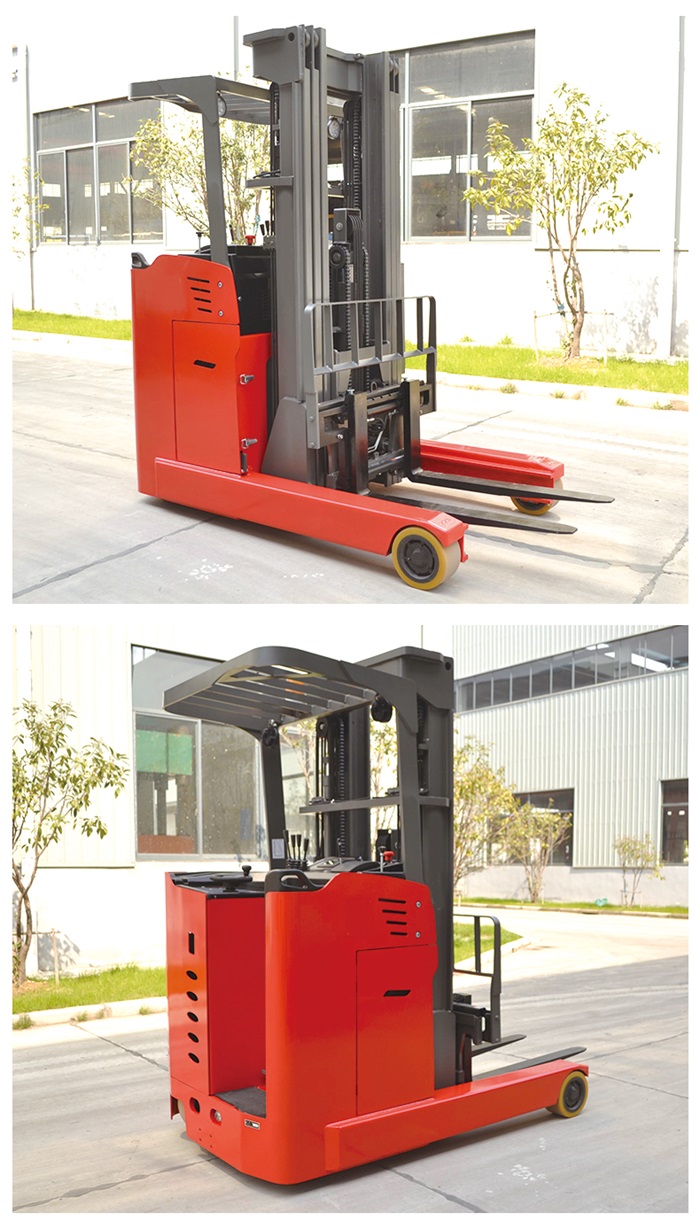

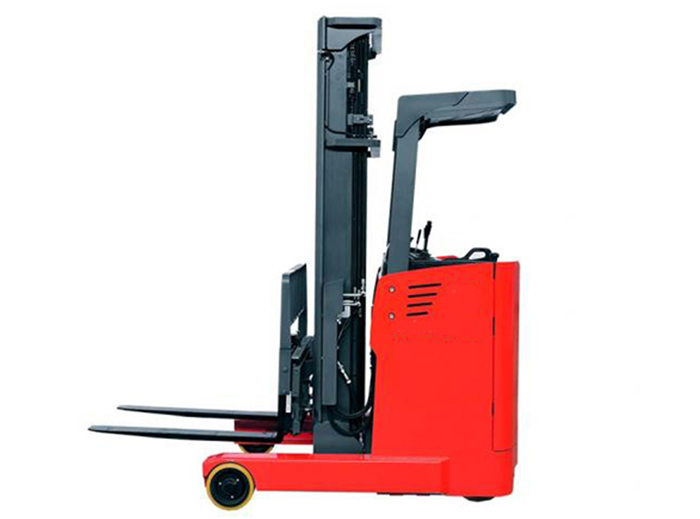

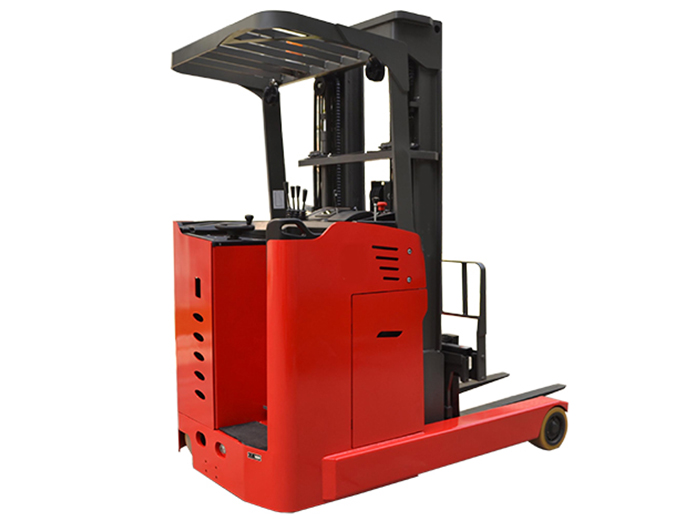

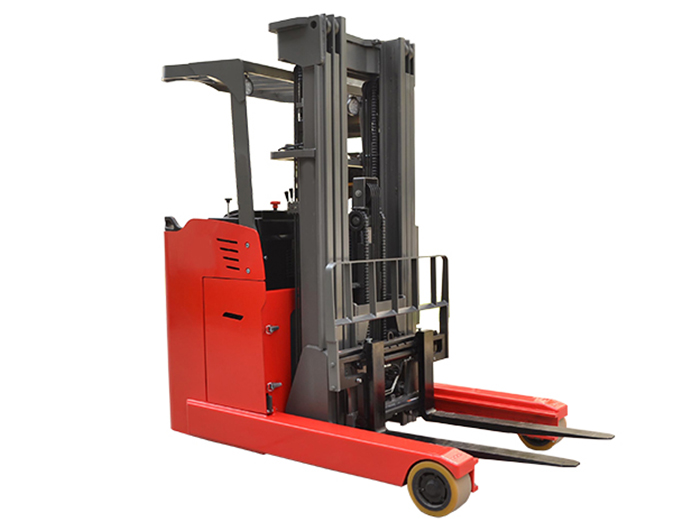

Name:1.5 Ton 2.0 Ton (48V) Electric Reach Truck (CQD15F CQD20F )
Model:CQD15F CQD20F
Product Introduction:Standing trucks are fitted with arms that extend outward underneath the forks in order to support a load. This type of forklift requires room for the straddle arms at the base of the racking you are using. Standing trucks are typically less expensive than a regular counterbalance or narrow aisle lift truck. We have a large dealer network available to find whatever fork truck you are looking for. We handle all major brands, makes, models, years and everything from an electric pallet jack to larger trucks. If you need it, we can find it.

Features:

1. Standard AC drive and EPS electric power steering, better feel and lower energy consumption.

2. With the speed limit function of turning, the automatic deceleration of turning can effectively protect the safety of goods and operators.

3. Ergonomic design: easy to operate valve stem and multi-function intelligent instrument, some models with wheel display function.

4. Strong endurance: AC drive motor, some models use AC lift motor, which is efficient and energy efficient. Meet many job requirements under heavy working conditions.

Manufacturer

SINOLIFT

SINOLIFT

Model

CQD15F

CQD20F

Power type

Battery

Battery

Operate type

Stand on

Stand on

Service weightincl.battery

kg

2450

2750

Load capacity

Q(kg)

1500

2000

Load center

C(mm)

500

500

Lift height

h3(mm)

3000

3000

Fork size

l/e/s(mm)

1070/100/35

1070/100/40

Front overhang

x(mm)

180

180

Turning radius

Wa(mm)

1594

1784

Max.gradeability

10%

10%

Traveling speed, laden/unladen

km/h

9/10

9/10

Lifting speed,Laden/unladen

mm/s

240/400

220/380

Lowering speed,Laden/unladen

mm/s

300/270

310/260
