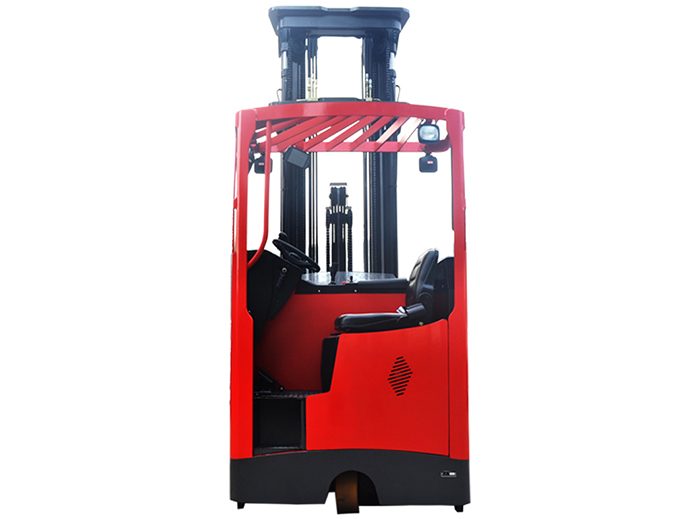

Name：1.6 Ton 2.0Ton Seated Electric Reach Truck (CQD16Z CQD20Z)
Model：CQD16Z CQD20Z

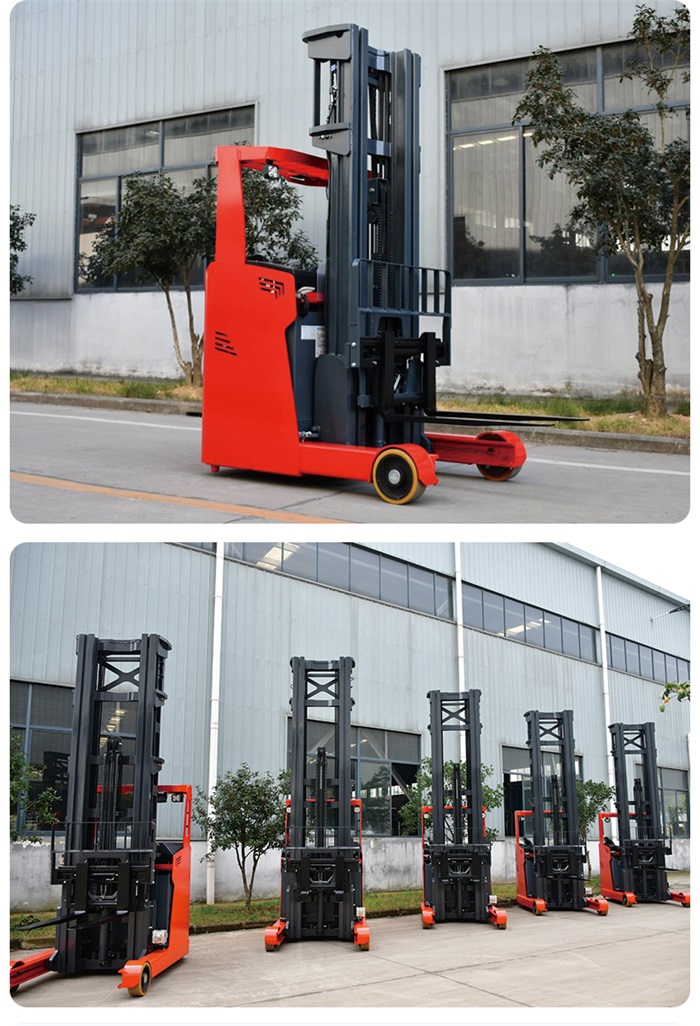

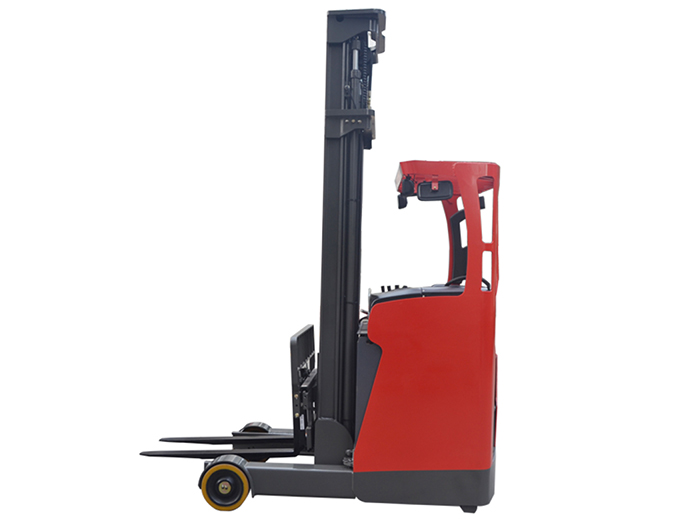

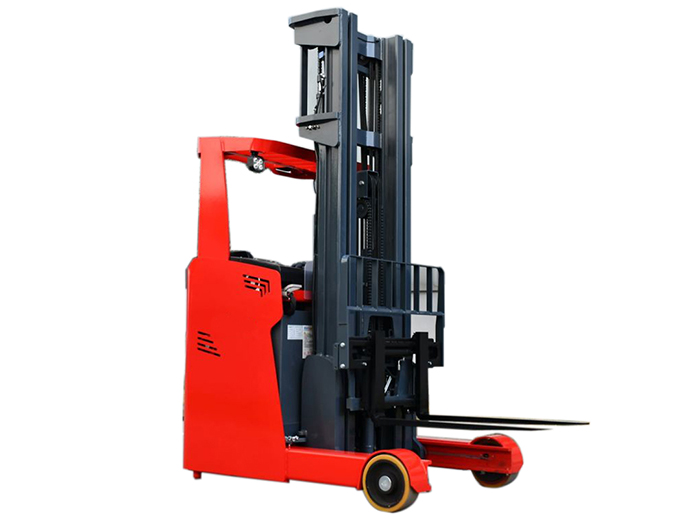

Product Introduction：The CQD-Z series features the precise operating system, which enhances the reach truck's performance and makes crucial information easy to see, understand and use. The mast can be moved forward or backward as a whole, with a smaller body and turning radius for operation in narrow aisles and higher efficiency.

Features:

1. Drive motor, controller and pump structure are well organized.

2. Imported Curtis controller ensuring better performance and less maintenance.

3. Vertical drive motor without brush is for easy maintenance;

4. Electric power steering (EPS) improves work efficiency.

5. Imported ZF gearbox for better performance and longer service lifer.

6. Ergonomic design and smooth operation control levels offer comfortable transporting experience.

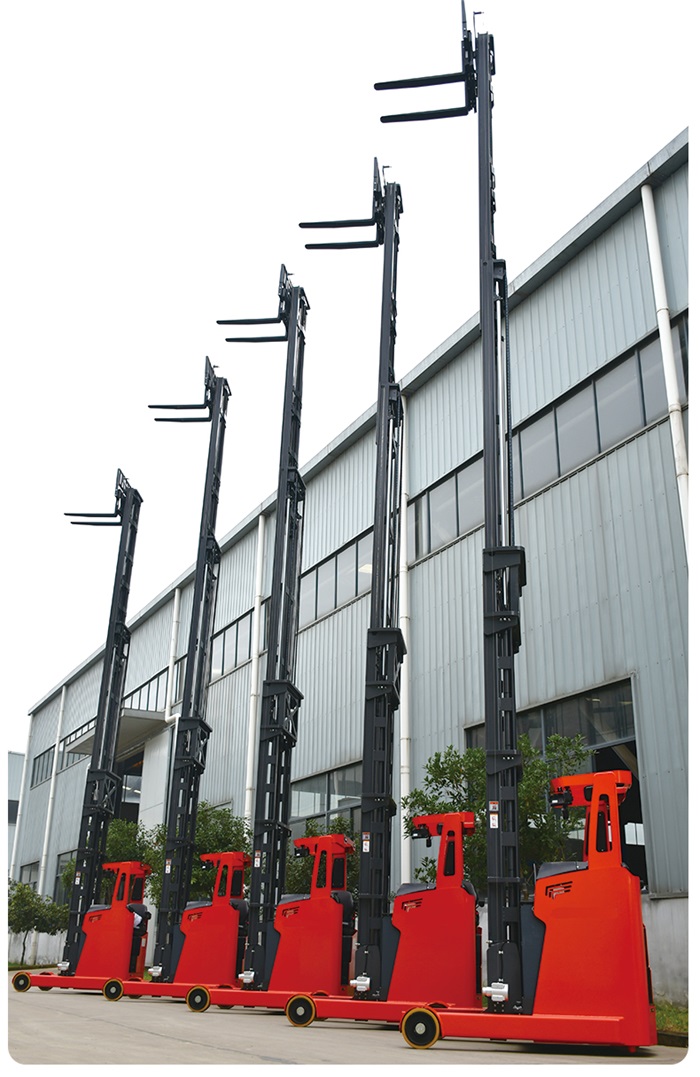

7. Wide-view mast with dual cylinder lift for more stable lifting and protection.

8. Curtis hour meter

9. Side-removable battery as selected option

Manufacturer		SINOLIFT	SINOLIFT	SINOLIFT	SINOLIFT
Model		CQD16Z	CQD16Z-SQH	CQD20Z	CQD20Z-SQH
Power type		Battery	Battery	Battery	Battery
Operation Type		Seated	Seated	Seated	Seated
Service weight（incl. battery）	kg	3250	4350	4000	4670
Rated capacity	Q(kg)	1600	1600	2000	2000
Load center	C(mm)	500	500	500	500
Lift height	h3(mm)	3000	6000	3000	6000
Fork dimension	l/e/s(mm)	1070/100/35	1070/100/40	1070/100/40	1070/100/40
Front overhang	x(mm)	220	205	215	205
Turning radius	Wa(mm)	1700	1872	1798	1872
Max. gradeability		10%	10%	10%	10%
Travelling speed ,laden/unladen	km/h	8.5/10	8.5/10	8.5/10	8.5/10
Lifting speed ,laden/unladen	mm/s	210/340	200/300	210/340	260/360
Lowering speed,laden/unladen	mm/s	300/250	300/250	300/250	300/250
