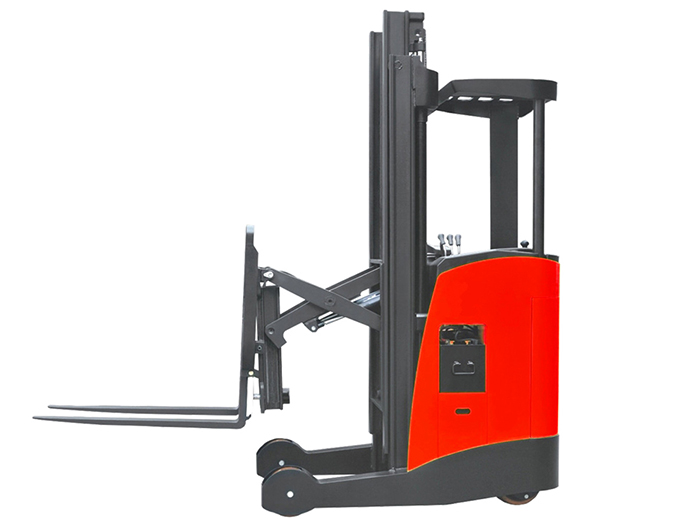

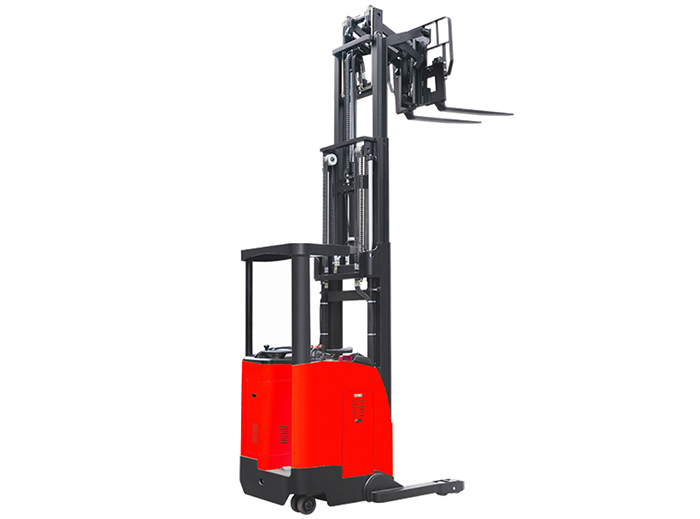

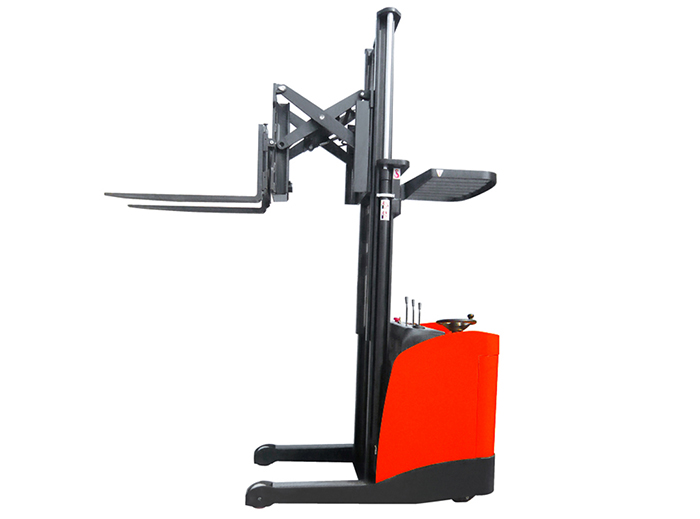

Name:1.5 Ton Single Scissors Double Deep Electric Reach Truck (CQDH15)
Model:CQDH15
Product Introduction:The Double Deep Reach Truck is SINOLIFT’s another breakthrough innovation to your warehouse. The maximal Fork Carriage Reach Distance can reach 920mm, which provides the best solution to your double-rack system. With support the advanced technology and high quality components, SINOLIFT’s double deep reach truck provides the best operation experience and highest working efficiency.

Advantages:

1. Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.

2. Stepless speed control Intelligentized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.

3. Equipped with adjustable hand-rest, adapted to different operator.

4. Multi-function display: battery status, hour meter, fault indicator etc.

5. Two sides of battery with roll-out system is very convenient to replace batteries.

6. Damping cushion for low-noise operation.

7. Built-in pressure relief valve protects the trucks from overloads.

8. Emergency power disconnects.


Model

CQDH15C (single scissor)

Drive type

battery

battery

battery

battery

Load capacity/Rated load

Q(kg)

1500

1500

1500

1500

Load centre distance

c(mm)

500

500

500

500

Load distance, centre of drive axle fork

x(mm)

334

309

246

246

Tyre size, front

mm

280×82+160×60

280×82+160×60

280×82+160x60x2

280×82+160x60x2

Tyre size, rear

mm

125×82(4)

125×82(4)

125x82x4

125x82x4

Wheels, number front rear(x=driven wheels)

1+2

1+2

1x+2/4

1x+2/4

Height, mast lowered

h1(mm)

2125  2375  2625

2185 2345 2505 2675

2125  2375  2625

2185 2345 2505 2675 2840

Free lift

h2(mm)

1575 1700 1825 2000

1776 1776 2010 2080 2240

Max. lift height

h3(mm)

3000  3500  4000

4500 5000 5500 6000

3000  3500  4000

4500 5000 5500 6000 6500

Height, mast extended

h4(mm)

3881  4381  4881

5381 5881 6381 6881

3900  4400  4900

5400 5900 6400 6900 7400

Height of overhead guard

h6(mm)

2246

2246

2246

2246

Overall width

b1/b2(mm)

1310/1040

1310-1400/1040

1295/1040

1295/1040

Overall length

l1(mm)

2409

2435

2615

2616

Length to face of forks

l2(mm)

1339

1365

1518

1518

Fork Dimension

s/e/l(mm)

35/100/1070

35/100/1070

35/100/1070

35/100/1070

Reach distance

l4(mm)

500

500

600

600

Fork height, lowered

h8(mm)

130

130

130

130

Distance of “X” (see below diagram)

mm

450

450

450

450

Overall length (excluding the fork)

mm

1868

1868

1868

1868

Ground clearance, centre of wheelbase

m2(mm)

65

65

49

49

Aisle width for pallets 1000×1200 crossways

Ast(mm)

2814

2839

2956

2956

Aisle width for pallets 800×1200 lengthways

Ast(mm)

2871

2902

3027

3027

Turning radius

Wa(mm)

1718

1718

1791

1791

Travel speed, laden/unladen

Km/h

6.5/7

6.5/7

6.5/7

6.5/7

Lift speed, laden/unladen

m/s

0.135/0.161

0.135/0.161

0.27/0.43

0.27/0.43

Lowering speed, laden/unladen

m/s

0.15/0.122

0.15/0.122

0.45/0.364

0.45/0.364

Battery voltage, nominal capacity K5

V/Ah

24/420(560)

24/420(560)

36/700

36/700

Battery weight

kg

340/425

340/425

810

810

Battery dimension l/w/h

mm

780x335X500

780x335X500

978x395x765

978x395x765

Service weight (with battery)

kg

2450 2500  2560

2700  2800  2900 3000

3130  3180  3230

3470 3570 3670 3370 3770
