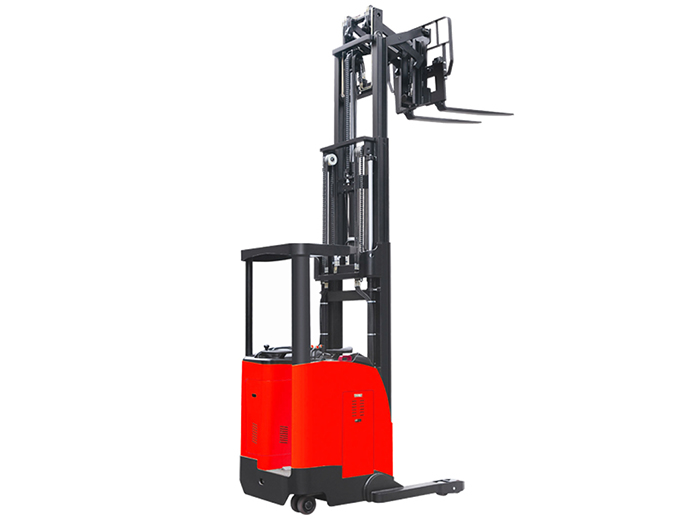

Name：1.8 Ton Single Scissors Double Deep Electric Reach Truck (CQDH18)
Model：CQDH18
Product Introduction：The Double Deep Reach Truck is SINOLIFT’s another breakthrough innovation to your warehouse. The maximal Fork Carriage Reach Distance can reach 920mm, which provides the best solution to your double-rack system. With support the advanced technology and high quality components, SINOLIFT’s double deep reach truck provides the best operation experience and highest working efficiency.

STRUCTURAL

2. Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.

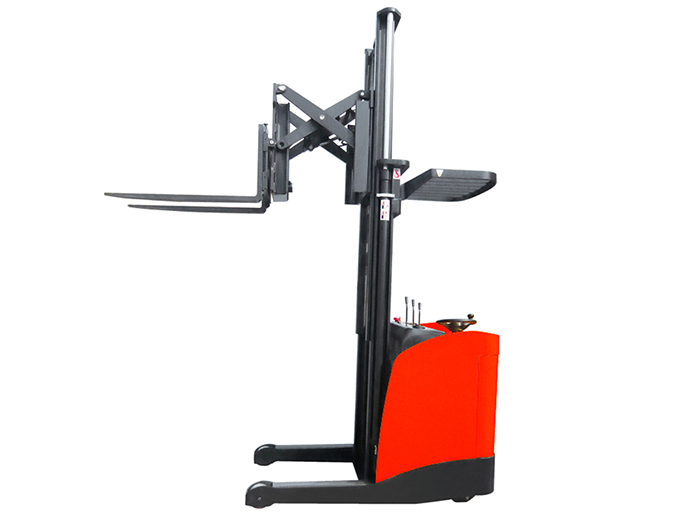

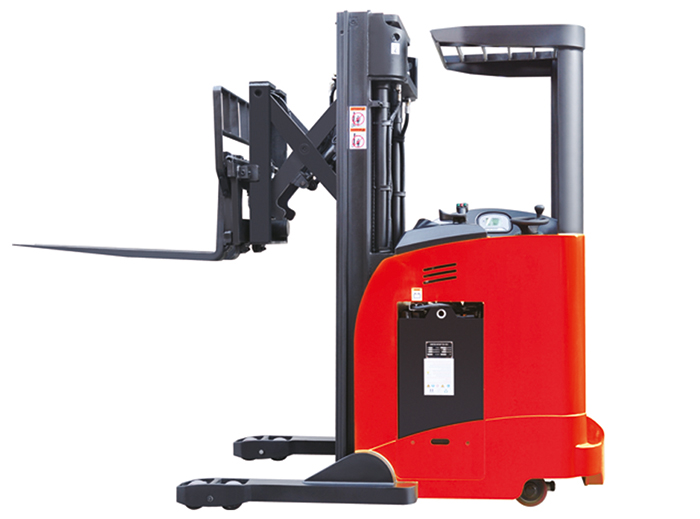

3. The Scissor Reach Forks is operated by electric controller, which makes operation stable and no impact.

SERVICEABILITY

1. Low battery protection setting prolongs the battery use time.

2. CAN bus technology reduces wiring complexity and increase reliability.

3. All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.

4. The back cover is easy to open for maintenance and adjustment of parts of valve, oil tube and electronic parts.

Model		CQDH18C(Single Scissor)	CQDH18C(Single Scissor)
Drive type		battery	battery
Capacity/Rated load	Q(kg)	1800	1800
Load centre distance	c(mm)	600	600
Load distance, centre of drive axle to fork	x(mm)	246	246
Tyre size, front	mm	280×82+160x60x2	280×82+160x60x2
Tyre size, rear	mm	125×82(4)	125×82(4)
Wheels, number front rear(x=driven wheels)		1x+2/4	1x+2/4
Height,mast lowered	h1(mm)	2125/2375/2625	2185/2345/2505/2675/2835
Free lift	h2(mm)		1575/1700/1825/2000/2125
Max.lift height	h3(mm)	3000/3500/4000	4500/5000/5500/6000/6500
Height, mast extended	h4(mm)	3900/4400/4900	5400/5900/6400/6900/7381
Height of overhead guard	h6(mm)	2246	2246
Length to face of forks	l2(mm)	1618	1618
Overall length	l1(mm)	2716	2716
Overall width	b1/b2(mm)	1298/1040	1298/1040
Fork Dimension	s/e/l(mm)	40/100/1070	40x100x1070
Reach distance	l4(mm)	500	500
Fork height, lowered	h8(mm)	40	40
Distance of “X”(see below diagram)	mm	450	450
Overall length(excluding the fork)	mm	2023	2023
Ground clearance, centre of wheelbase	m2(mm)	49	49
Aisle width for pallets 1000×1200 croossways	Ast(mm)	3013	3013
Aisle width for pallets 800×1200 lengthways	Ast(mm)	3085	3085
Turning radius	Wa(mm)	1848	1848
Travel speed, laden/unladen	Km/h	6.5/7	6.5/7
Lift speed, laden/unladen	m/s	0.2/0.3	0.2/0.3
Lowering speed, laden/unladen	m/s	0.32/0.312	0.32/0.312
Battery voltage,nominal capacity K5	V/Ah	36/700	36/700
Battery weight	Kg	810	810
Battery dimensions l/w/h	mm	978x395x765	978x395x765
Service weight(with battery)	kg	3310/3360/3410	3550/3650/3750/3850/3950
