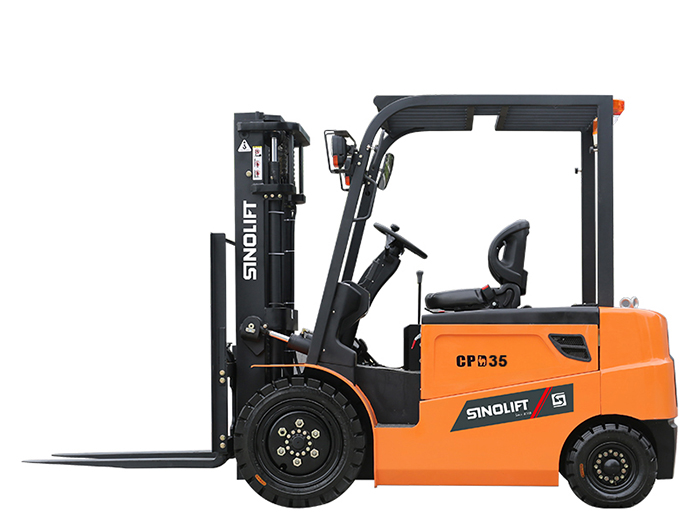

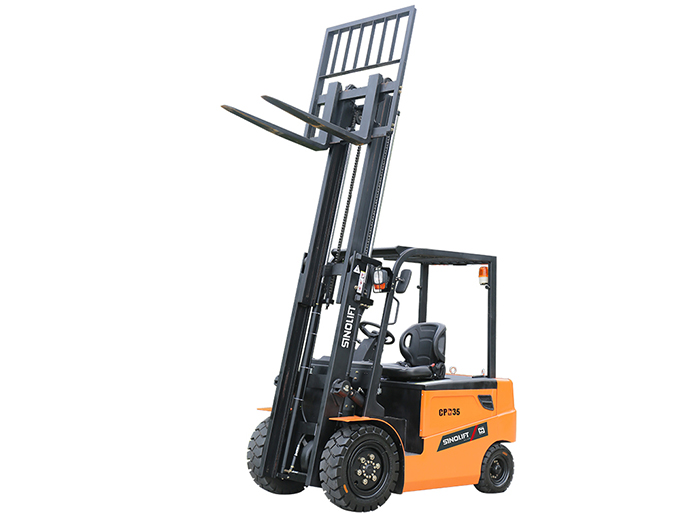

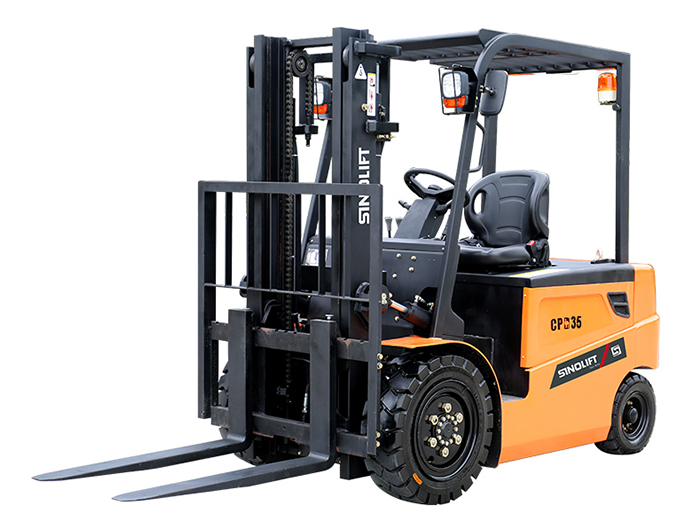

Name：3.5 Ton Electric Forklift Truck (CPD35E)
Model：CPD35E
Product Introduction：The CPD35E can work in the narrow passage as compact appearance and small turning radius. The main electrical components are famous brand products, stable performance. According to the principle of ergonomics, the operator's operating space is reasonably allocated to make it comfortable and convenient.

AC system precise control CAN bus technology multiple protection, sale and reliable.

Strong power, running, lifting, and the climbing performance domestic leading.

HMI design of the steering wheel, switches, operating handle, etc., improve the driving comfort.

Small turning radius, good passing performance.

Mast drop cushioning and comfortable vehicle operation.

Intelligent deceleration turning design, improve the stability of the vehicle during traveling, to avoid tipping cargo.

OPS (operating presence sensing) system, when the driver leaves the operating position, will cut off all operating functions, to avoid misuse potential safety problems.

MODEL NO.				CPD35E
Maximum load capacity		Q	kg	3500
Overall length ( No fork)		L'	mm	2660
Overall length (Cargo fork)		L	mm	3735
Overall width		W	mm	1220
Height, mast lowered		H1	mm	2085
Height of overhead guard(cabin)		H4	mm	2250
Height, mast extended		H2	mm	4225
Ground clearance, laden, below mast		H5	mm	145
Ground clearance,unladen/laden,centre of wheelbase		H7	mm	135
Front tread		W3	mm	1005
Rear tread		W2	mm	990
Wheelbase		L1	mm	1690
Front overhang		L2	mm	500
Lift height		H	mm	3000
Free lift height		H3	mm	130
Mast tilt angle, front/rear		α/β	°	6/12
Max.lift speed	unladen		mm/s	340
Max.lift speed	laden		mm/s	220
Max. travel speed	unladen		km/h	14
Max. travel speed	laden		km/h	13
Turning radius		R	mm	2355
Max. gradability,laden			%	15
Load centre distance		C	mm	500
Curb weight(with battery)			kg	5130
Tyre	Front			28×9-15-14PR
Tyre	Rear			18*7-8
Motor	Drive		KW	AC11
Motor	Lift		KW	DC14
Battery			V/Ah	72/550
Type of drive control				AC drive system, DC lifting system
Aisle width for lengthways	800*1000		mm	4255
Aisle width for lengthways	1000*1200		mm	4125
Container quantity(1*20GP/40HQ)	20GP/40HQ		units	2/4
