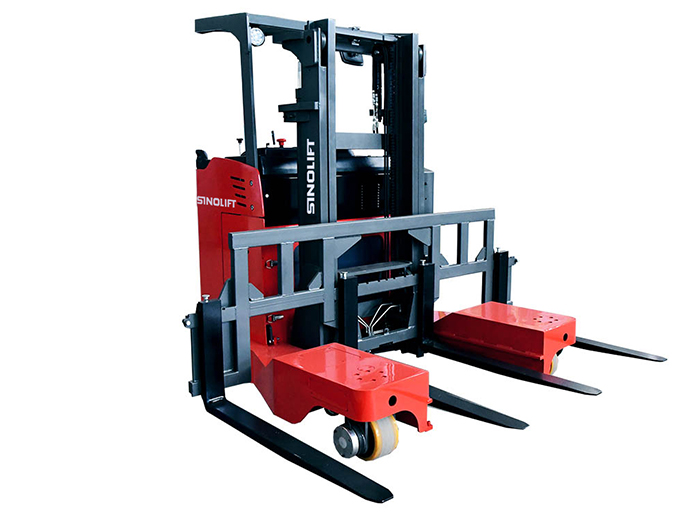

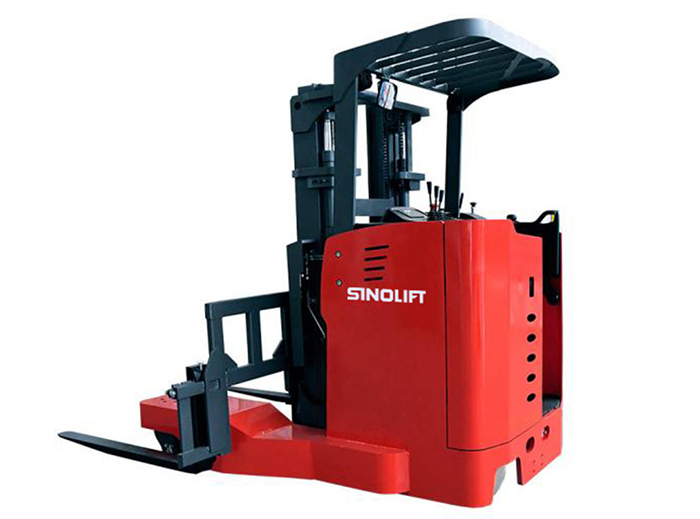

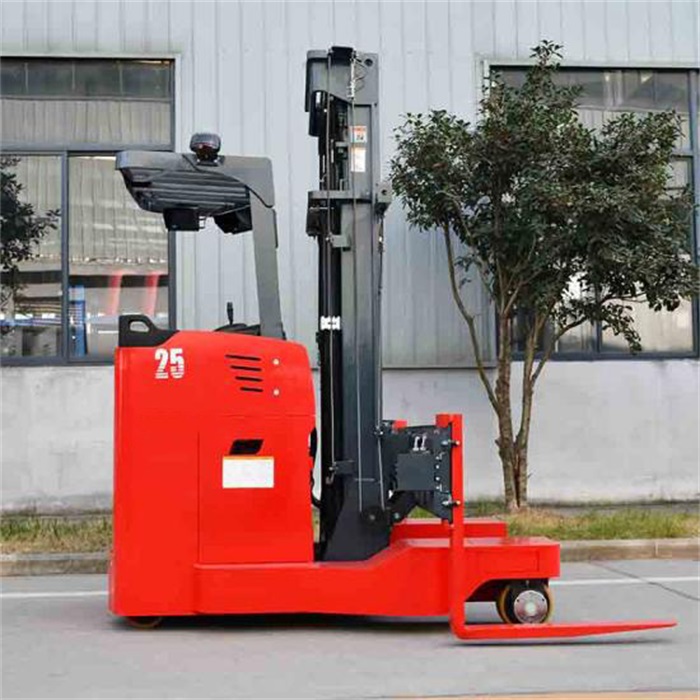

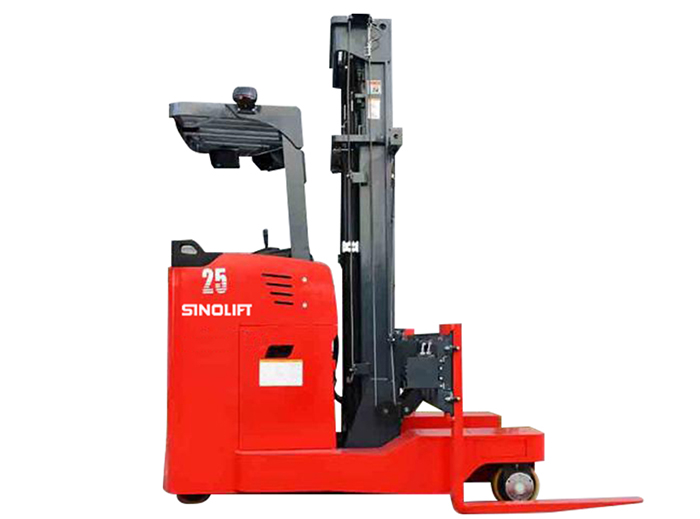

Name：2.5 Ton Stand-on Electric 4 directional Forklift (MQB25)
Model：MQB25

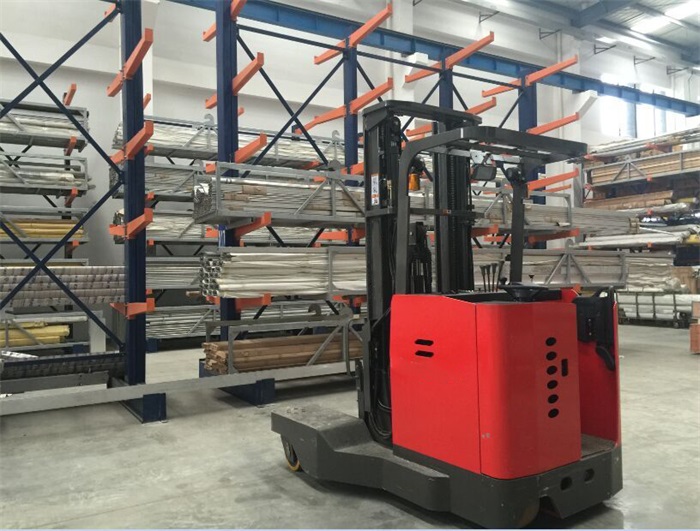

Product Introduction：4 direction reach truck is used for long material handling in very narrow aisle, lift height is 3m-8m, it can do side travelling without turning, best choice for steel pipe, wood, rebar, metal profiles and others.

Advantages:

Long material handling

●Based on 4 direction travelling, use for long material in very narrow aisle, material max length can reach to 10M

4 direction travelling modes

●Forward and backward, left and right modes, very easy to switch with low fault and high efficiency

●With high definition drive wheel display, easy to adjust direction in narrow aisle, very safe and high precision

Safe and reliable

●Full AC system, long service life, low energy consumption and working fast

●High capacity battery, strong power with long working time, easy to charge, very safe and low maintenance cost.

1.1	Manufacturer		SINOLIFT	SINOLIFT
1.2	Model		MQB2530	MQB2545
1.3	Power Type		Battery	Battery
1.4	Operation Type		Stand on	Stand on
1.5	Rated Capacity	Q(kg)	2500	2500
1.6	Load Center	C(mm)	500	500
1.7	Front Overhand	x(mm)	175	175
1.8	Wheelbase	y(mm)	1700	1700
Weight
2.1	Service Weight(incl.battery)	kg	≈3700	≈3900
2.2	Battery Weight（±5%）	kg	665	665
Wheel
3.1	Wheel Types		PU	PU
3.3	Left front wheel （Diameter×Width）x2pc	mm	φ254×65	φ254×65
3.4	Right front wheel （Diameter×Width)x 1pc	mm	φ254×135	φ254×135
3.5	Rear drive wheel （Diameter×Width)x 1pc	mm	φ380×165	φ380×165
3.6	Rear balance wheel（Diameter×Width)x 2pc	mm	φ204×76	φ204×76
3.7	Wheel tread,front	b3(mm)	1416	1416
3.8	Wheel tread,rear	b4(mm)	726	726
Size
4.1	Fork Tilt front/rear	α/β(°)	3/5	2/6
4.2	Lift height	h1(mm)	3000	4500
4.3	Free lift height with load backrest	h2(mm)	80	1320
4.4	Mast closed height	h3(mm)	2082	2292
4.5	Mast extended height with load-backrest	h4(mm)	3960	5460
4.6	Overhead guard height	h5(mm)	2300	2300
4.7	Height from overhead guard to driving board	h6(mm)	1900	1900
4.8	Driving board height	h7(mm)	350	350
4.9	Ground clearance	h8(mm)	80	80
4.10	Load backrest height	h9(mm)	970	970
4.11	Leg height	h10(mm)	405	405
4.12	Overall length(incl.forks)	l1(mm)	2250	2300
4.13	Reach stroke	l2(mm)	783	733
4.14	Overall width	b1(mm)	1752	1752
4.15	Fork size	l/e/s(mm)	920×122×40	920×122×40
4.16	Body tail width	b2(mm)	1190	1190
4.17	Fork outside width	b5(mm)	244～772	244～772
4.18	Inner leg width	b6(mm)	892	892
4.19	Fork carriage width	b7(mm)	1088	1088
4.20	Turning radius	Wa(mm)	1975	1975
4.21	Side driving aisle width（1000×1000pallet）	Ast2(mm)	2800	2800
Function
5.1	Driving speed(load/unload)	km/h	7.8/9.0	7.8/9.0
5.2	Lifting speed(load/unload)	mm/s	240/320	220/300
5.3	Lowering speed(load/unload)	mm/s	340/290	310/260
5.4	Straight driving max.gradeability，load/unload(S2-5min)	%(tanθ )	≤10	≤10
5.5	Side driving max.gradeability，load/unload(S2-5min)	%(tanθ )	≤5	≤5
5.6	Steering system		EPS	EPS
5.7	Drive wheel display		LED screen	LED screen
5.8	Brake type		Electromagnetic type	Electromagnetic type
Drive
6.1	Drive motor type		AC	AC
6.2	Drive motor(S2-60min)	kw	5.5	5.5
6.3	Lifting motor type		AC	AC
6.4	Lifting motor(S3-15%)	kw	8.6	8.6
6.5	Battery voltage/capacity	V/Ah	48/400	48/400
Other
7.1	Battery change type		Side pull	Side pull
7.2	Charger type		48V 50A	48V 50A
Option
8.1	Video display		Mobile camera	Mobile camera
8.2	Super wide fork carriage and four fork		Customized avaiable	Customized avaiable
8.3	Fork positioner		Customized avaiable	Customized avaiable
8.4	Customized fork		Customized avaiable	Customized avaiable
