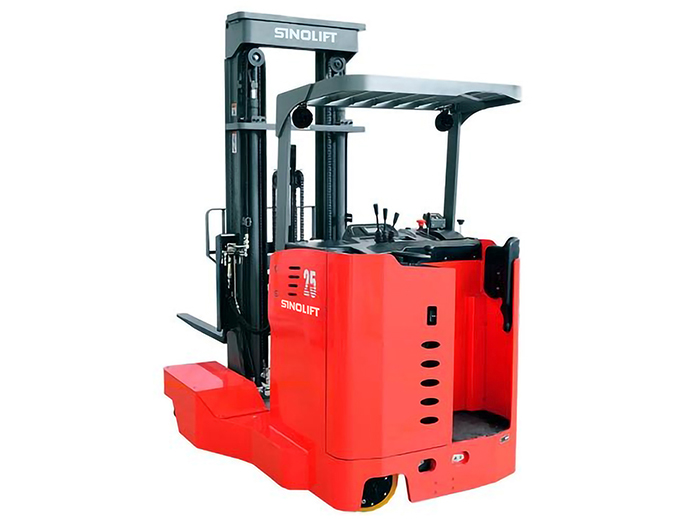

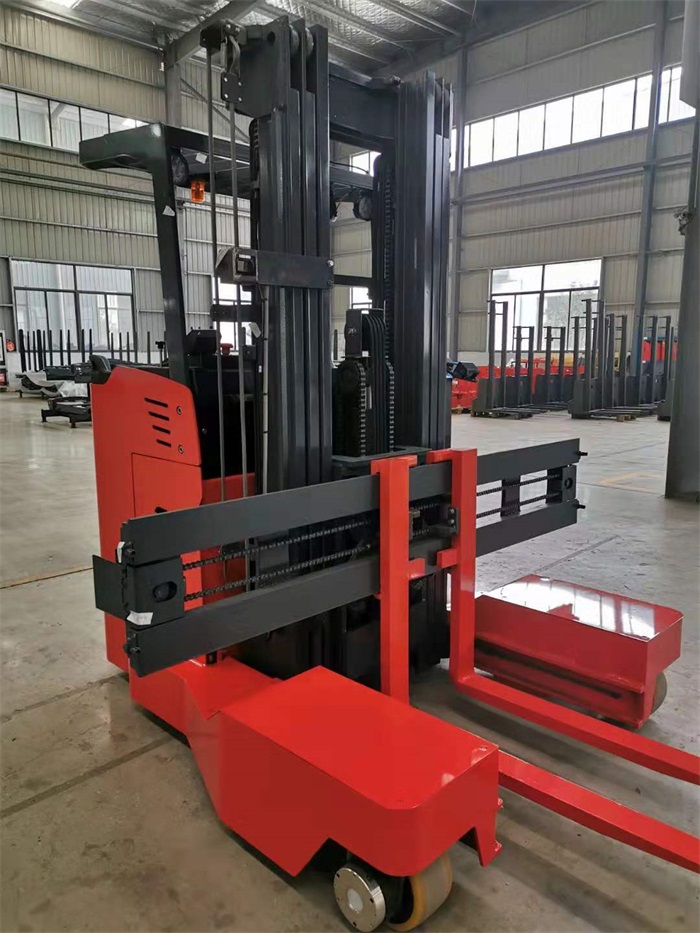

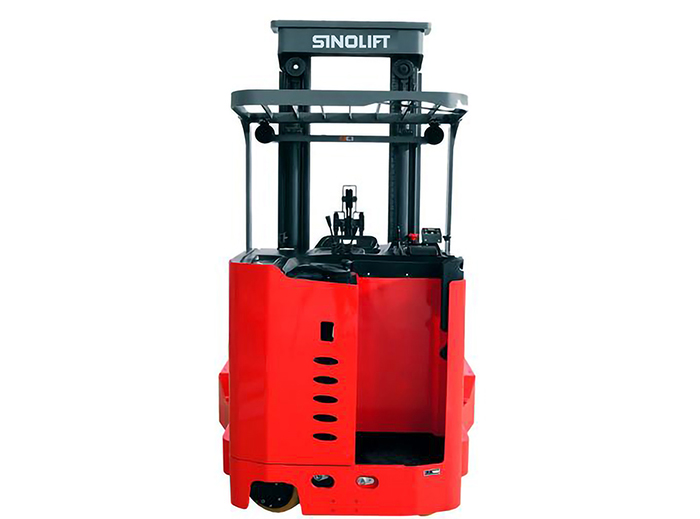

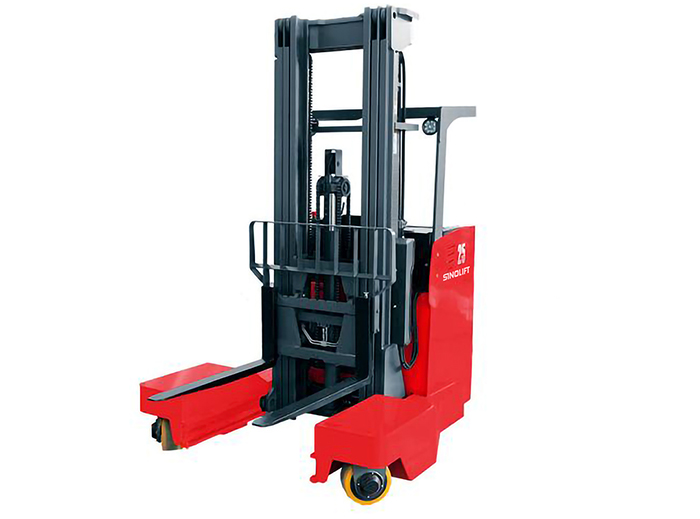

Name:1.5 Ton 2.5 Ton Stand-on Multi-directional Forklift (MQ15 MQ25)
Model:MQ15 MQ25
Product Introduction:Multi direction reach truck MQ series is used in very narrow aisle for long material handling, lift height is 3-8m, it has models of straight travelling, side travelling, oblique travelling and in situ rotating, best choice for metal profiles, rebar, wood, steel pipe and others.

Main Features:

1. All directions travelling, used in very narrow aisle for long material handling;

2. Full AC system, electric power steering, long service life and low energy consumption;

3. Imported gear pump, full buffer hydraulic cylinder, stable body and low noise;

4. Imported controller, high precision control, easy electric control setting, high performance and low fault;

5. Imported hydraulic hose, durable and long service life;

6. Cast steel drive box, High strength PU tyres, driving stable, braking reliable;

7. High definition driving wheel display;

8. Big capacity battery.

Brand

SINOLIFT

SINOLIFT

SINOLIFT

SINOLIFT

Model

MQ1530

MQ1545

MQ2530

MQ2545

Power Type

Battery

Battery

Battery

Battery

Operation Type

Stand on

Stand on

Stand on

Stand on

Service weight(incl. battery)

kg

2530

2600

3700

3900

Rated Capacity

Q(kg)

1500

1500

2500

2500

Load Center

C(mm)

500

500

500

500

Lifting height

h3(mm)

3000

4500

3000

4500

Forks size

l/e/s(mm)

920/100/35

920/100/35

920/100/45

920/100/45

Front Overhang

x(mm)

140

140

175

175

Turning radius

Wa(mm)

1610

1610

1975

1975

Max. climbing ability

%(tanθ )

≤8

≤8

≤10

≤10

Driving speed(load/unload)

km/h

7/8

7/8

7.8/9

7.8/9

Lifting speed(load/unload)

mm/s

120/190

100/190

220/300

220/300

Lowering speed(load/unload)

mm/s

190/170

170/130

310/260

310/260
