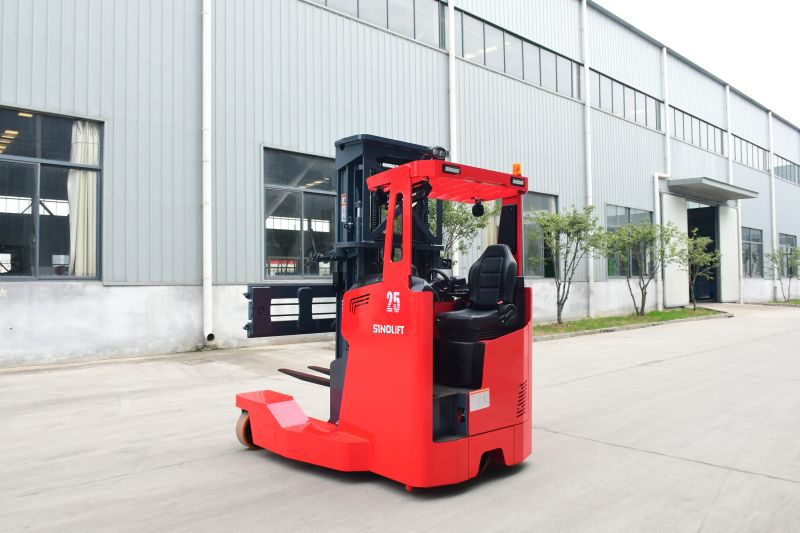

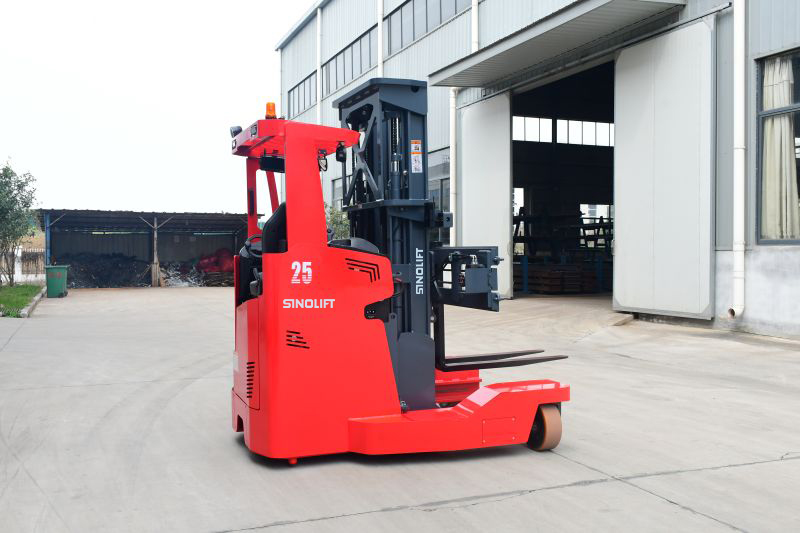

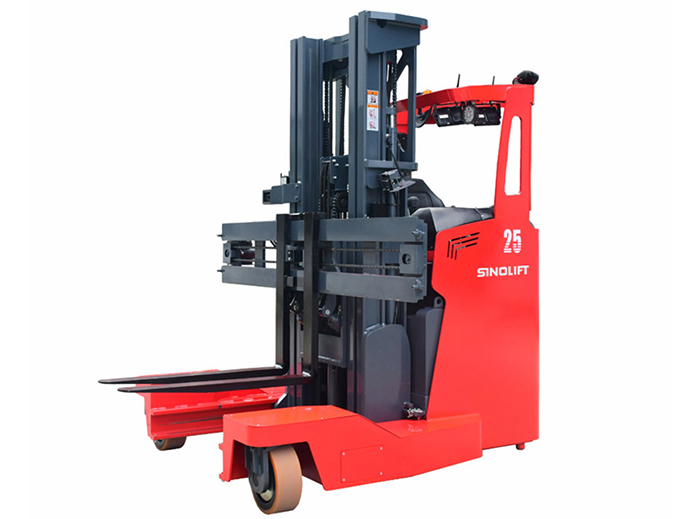

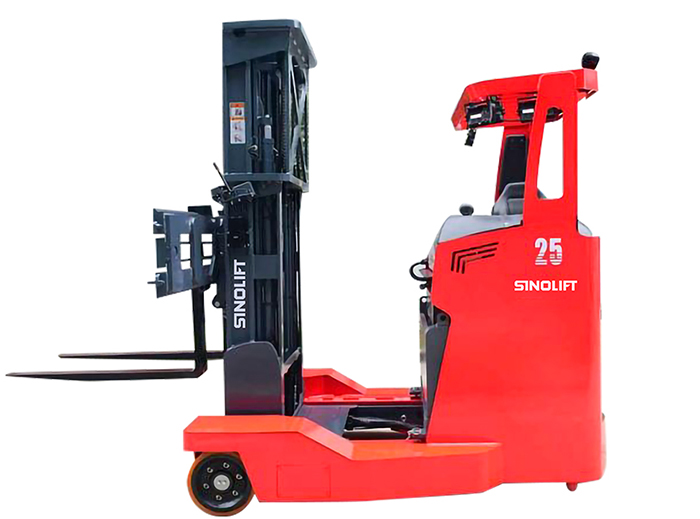

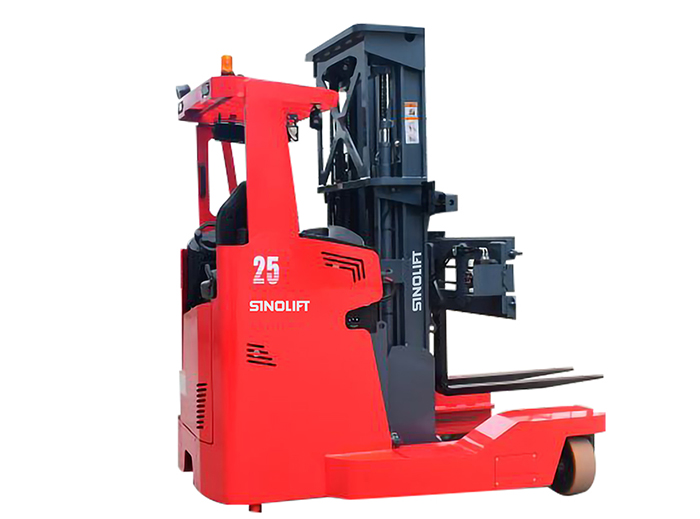

Name:2.5 Ton Seated Multi-directional Forklift (MQZ25)
Model:MQZ25
Product Introduction:Electric multi directional forklift MQZ series allows movement for long loads in all four directions and can handle efficiently and economically long and bulky loads with ease in narrow aisles.

Features of Electric multi-way forklift

1. EPS one switch to change the driving direction, with high work efficiency

2. Shimadzu brand gear pump and buffering hydraulic cylinder, with stable operation and low noise

3. USA Curtis controller, with precise control, simple parameter setting for controller, powerful function and less failure rate

4. Sumitomo brand hydraulic hose, anti-wear and tensile, with long service life

Brand

SINOLIFT

Model

MQZ25

Power type

Battery

Operation type

Seated

Service weight(incl. battery)

kg

5050

Rated capacity

kg

2500

Load center

C(mm)

600

Lifting height

h3(mm)

10000

Overall length

l1(mm)

2500

Overall width

b1/b2(mm)

1820/1270

Fork size

l/e/s(mm)

1070/122/40

Front overhang

x1(mm)

220

Turning radius

Wa(mm)

1988

Driving speed(load/unload)

km/h

8.5/10

Lifting speed(load/unload)

mm/s

260/360

Lowering speed(load/unload)

mm/s

300/250

Steering type

EPS

Battery voltage/capacity

V/Ah

48/560

Battery weight

kg

821
