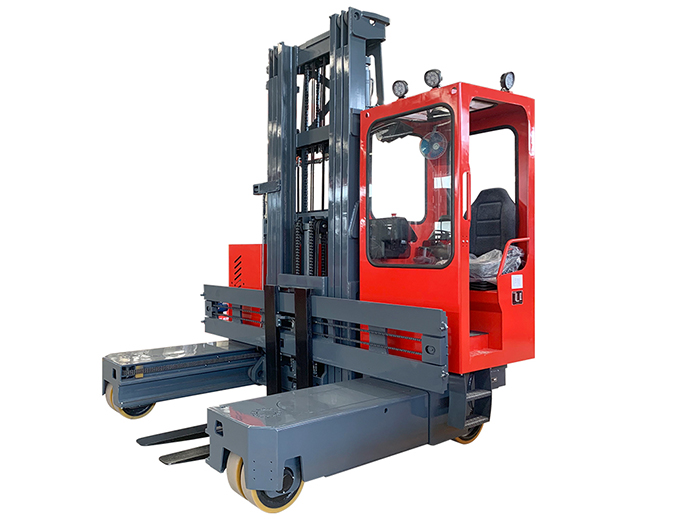

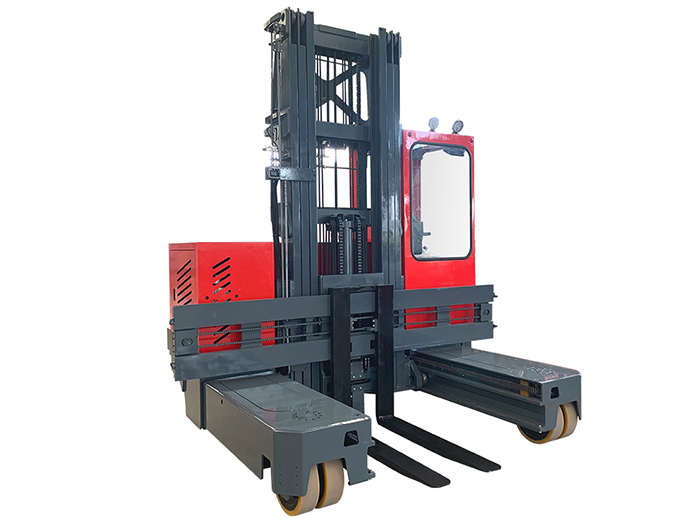

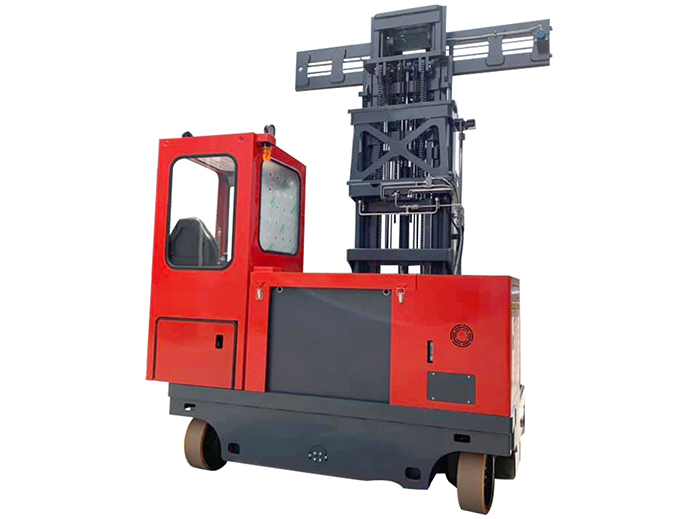

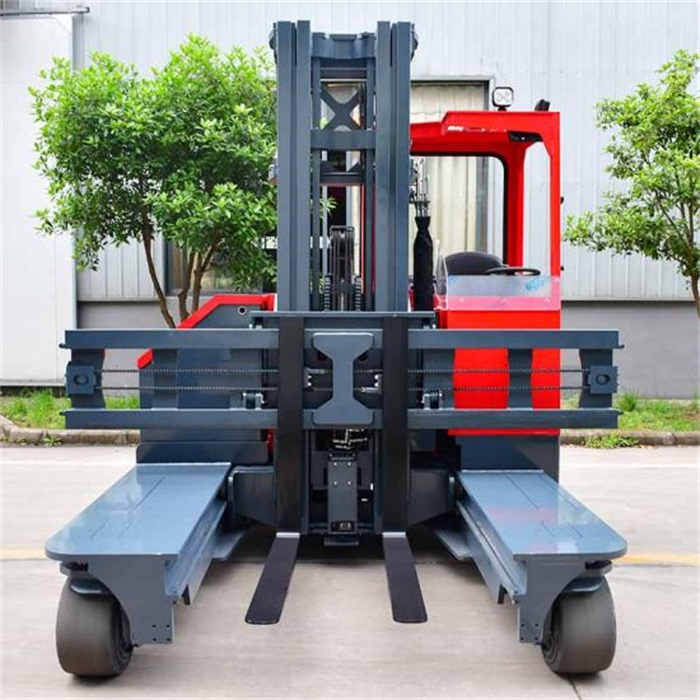

Name:3.0 Ton 4.0 Ton Seated Multi-directional Forklift (TFC30 & TFC40)
Model:TFC30 & TFC40
Product Introduction:Through the development of straight, side, diagonal, right angle turn, 360° in-situ rotation and other driving models, the channel distance between long materials shelves can be reduced, which effectively avoids the huge waste of warehouse caused by the length of goods in traditional transportation model.

Safe

1. Three braking systems can provide necessary protection for vehicle and driver no matter in working or not

2. OPS system, when drive leave seat, the forklift will stop to work

Energy saving

3. With LED headlight, warning light, low-resistance tyre, automatic steering dormancy, electronic automatic temperature control system and others

Comfortable

4. Reduce impacting and cargo damage with mast battering technology

5. Ergonomic design of cab provides a comfort, safe and high efficient working environment

Stable

6. Separate vehicle and battery, making gravity are in the center, more stable

Brand



SINOLIFT

SINOLIFT

Model

TFC30

TFC40

Power Type

Battery

Battery

Operation Type

Seated

Seated

Service weight(incl. battery)

kg

5480

7750

Rated Capacity

Q(kg)

3000

4000

Load Center

C(mm)

600

600

Lifting height

h3(mm)

3000

3000

Forks size

l/e/s(mm)

1200/150/50

1200/150/50

Front Overhang

x(mm)

305

318

Mast ground clearance

ml(mm)

150

150

Driving speed(load/unload)

km/h

7.8/9

7.8/9

Lifting speed(load/unload)

mm/s

230/350

230/350

Lowering speed(load/unload)

mm/s

170/150

170/150
