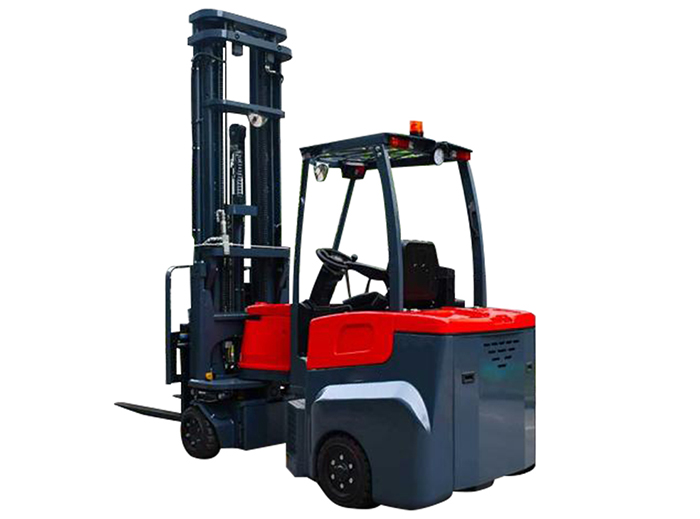

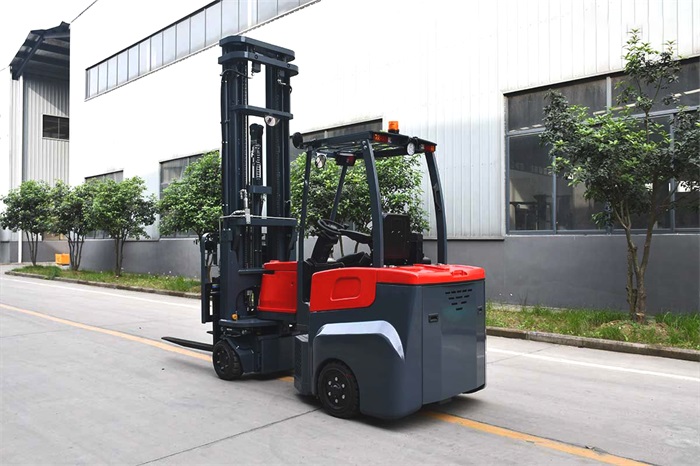

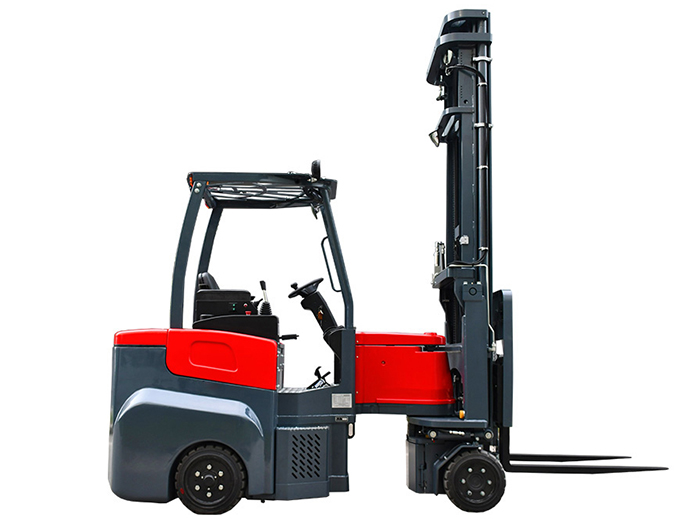

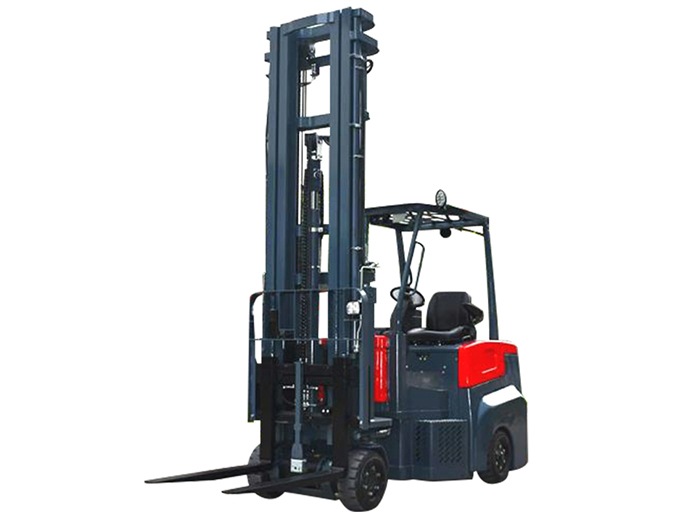

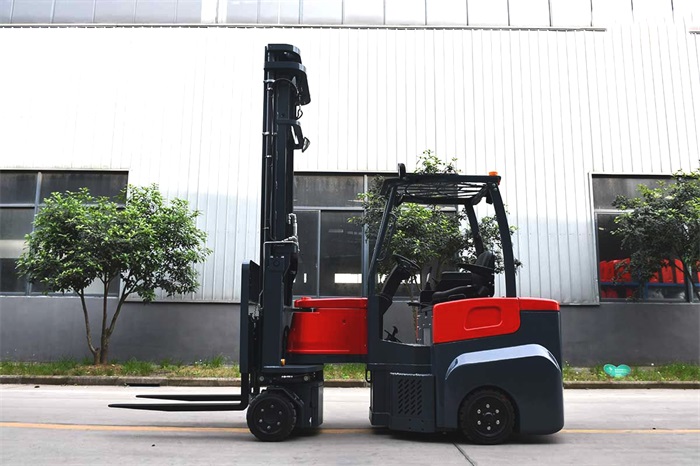

Name:2.0 Ton VNA Electric Articulated Forklift (MJ20 MJ20B )
Model:MJ20 MJ20B
Product Introduction:The load capacity of MJ series articulated forklift can be 2 tons and the max lifting height can be 12.5m. Adopting front single drive mechanical differential bridge design, maintenance free full AC motor, large speed ratio gearbox provides a greater climbing ability. It mainly meets customers' demand of efficiency priority, medium and heavy duty working conditions, high lifting speed, high driving speed, large capacity battery, excellent ergonomics, easy operation, safety and excellent performance.

Main Features:

Comfort

1. Adopting new concept and novel streamlined design, the visual effect is greatly improved. This articulated forklift is a reliable choice with compact and simple appearance.

2. Adopting wide view mast design with wireless camera and video display.

Convenience

3. International advanced MOSFET AC controller system enables the forklift to be controlled by computer program for walking, steering, lifting, and tilting.

4. Large-angle fully opened cover and removable rear door panel are convenient for battery replacement and maintenance.

Performance

5. AC motor has no maintenance cost such as replacing carbon brush. Reliability and long service life can be guaranteed with high-efficiency AC power system, complete protection functions, speed sensor and temperature sensor.

6. Safety is greatly improved by OPS function as standard configuration.

7. Equipped with high-brightness laser light, the operator can have a reliable reference when stacking in very narrow aisle.

Manufacturer

SINOLIFT

SINOLIFT

Model

MJ20

MJ20

Power type

Battery

Battery

Operation Type

Seated

Seated

Rated capacity

Q(kg)

2000kg

2000kg

Lift height

h3(mm)

4600-12500

4600-12500

Fork size

l/e/s(mm)

1100/100/50

1100/100/50

Turning radius

Wa(mm)

2200

2200

Driving speed

km/h

15

15

Overall length

L1(mm)

3830

3830

Overall width

b1/b2(mm)

980/1260

980/1400

Steering type

Hydraulic

Hydraulic
