1.8 Ton Double Scissors Double Deep Electric Reach Truck (CQDH18C)

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

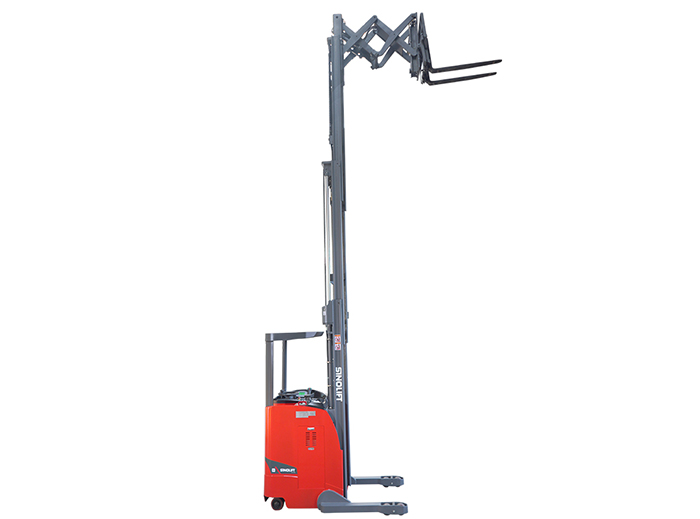

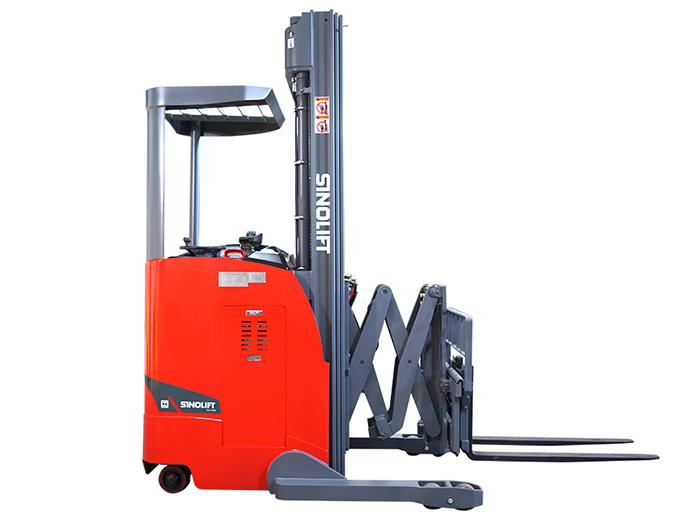

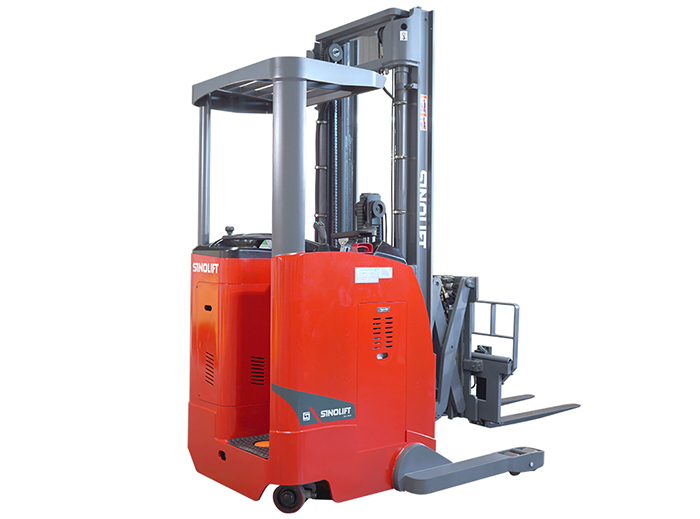

Name：1.8 Ton Double Scissors Double Deep Electric Reach Truck (CQDH18C)
Model：CQDH18C
Product Introduction：he SINOLIFT electric deep reach forklift adopts the latest technologies and ergonomics concepts in designing and manufacturing, it allows double-deep pallet storage in the racks. The forklift provides you with low cost of ownership, superior visibility, unmatched productivity, safety and ergonomics designing for operator. It can be widely used in factory, warehouse, and logistic center and especially in cold storage and food industry.

Advantages:

1. AC motor drive with high efficiency, no need to replace carbon brush, very good ramp starting performance.

2. Two models function can control the speed of lift and lowering.

3. Low center of gravity, excellent stability for operation.

4. Small turning radius, good turning performance.

5. With advanced variable frequency AC motor free maintenance and excellent performance.

6. Can control the speed of driving and lifting in the same time.

7. Shock absorber system support good noise reduction.

8. Wide view mast and clear visibility.

9. With full free lifting, can work in the limited roof environment.

Model		CQDH18C(Double Scissor)	CQDH18C(Double Scissor)
Drive type		battery	battery
Capacity/Rated load	Q(kg)	1000	1000
Load centre distance	c(mm)	600	600
Load distance, centre of drive axle to fork	x(mm)	123	123
Tyre size, front	mm	280×82+160x60x2	280×82+160x60x2
Tyre size, rear	mm	125×82(4)	125×82(4)
Wheels, number front rear(x=driven wheels)		1x+2/4	1x+2/4
Height,mast lowered	h1(mm)	2125/2375/2625	2185/2345/2505/2675/2840
Free lift	h2(mm)		1575/1700/1825/2000/2125
Max.lift height	h3(mm)	3000/3500/4000	4500/5000/5500/6000
Height, mast extended	h4(mm)	3000/3500/4000	4500/5000/5500/6000/6500
Height of overhead guard	h6(mm)	2246	2246
Length to face of forks	l2(mm)	1726	1750
Overall length	l1(mm)	2585	2609
Overall width	b1/b2(mm)	1298/1040	1298/1040
Fork Dimension	s/e/l(mm)	40/100/1070	40x100x1070
Reach distance	l4(mm)	1200	1200
Fork height, lowered	h8(mm)	130	130
Distance of “X”(see below diagram)	mm	450	450
Overall length(excluding the fork)	mm	2023	2023
Ground clearance, centre of wheelbase	m2(mm)	49	49
Aisle width for pallets 1000×1200 croossways	Ast(mm)	3110	3131
Aisle width for pallets 800×1200 lengthways	Ast(mm)	3197	3220
Turning radius	Wa(mm)	1848	1848
Travel speed, laden/unladen	Km/h	6.5/7	6.5/7
Lift speed, laden/unladen	m/s	0.2/0.3	0.2/0.3
Lowering speed, laden/unladen	m/s	0.32/0.312	0.32/0.312
Battery voltage,nominal capacity K5	V/Ah	36/700	36/700
Battery weight	Kg	810	810
Battery dimensions l/w/h	mm	978x395x765	978x395x765
Service weight(with battery)	kg	3460/3510/3560	3700/3800/3900/4000/4100
