2.0 Ton Double Scissors Double Deep Electric Reach Truck (CQDH20C)

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

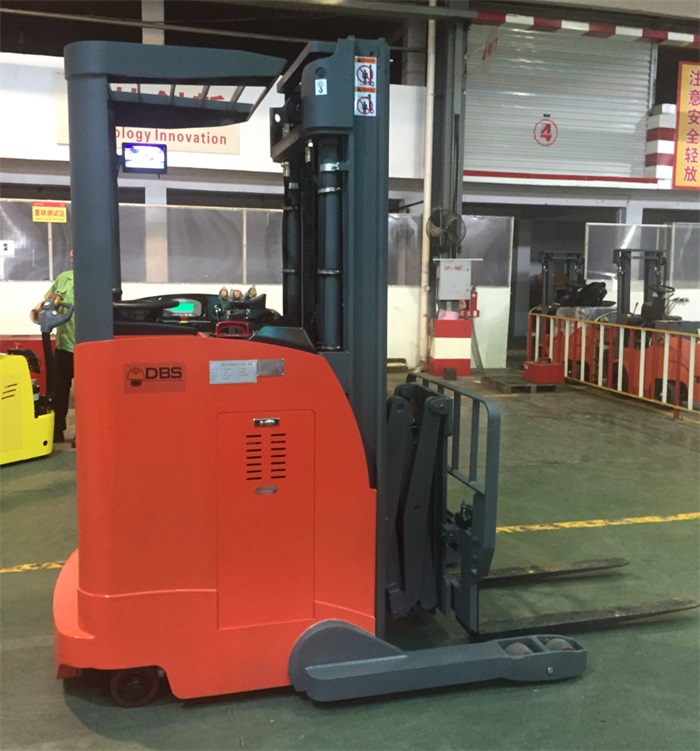

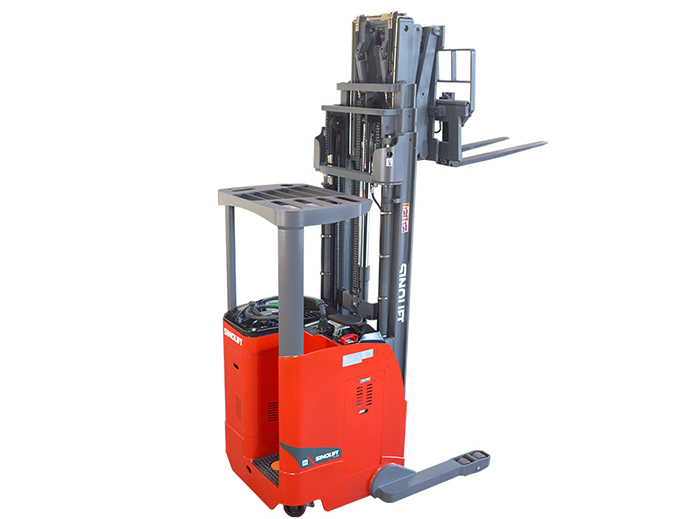

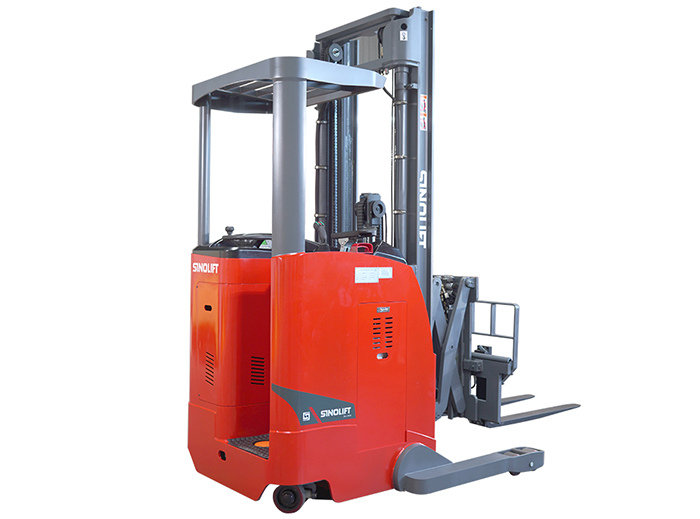

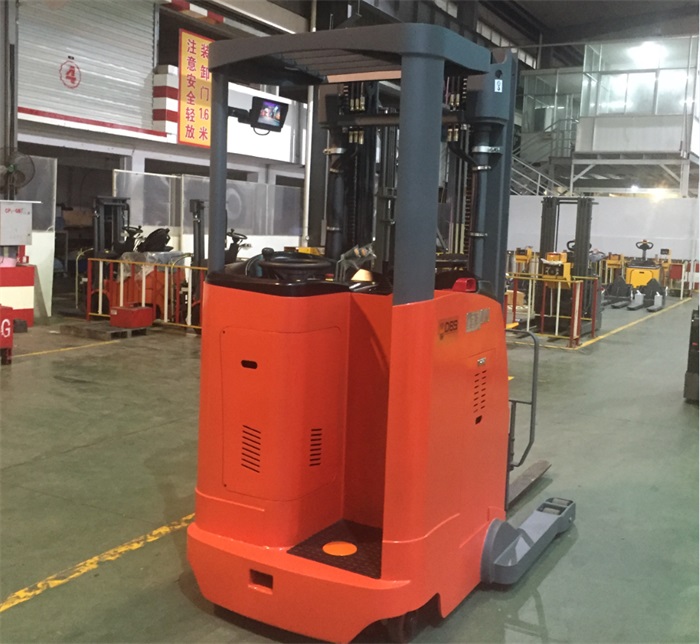

Name：2.0 Ton Double Scissors Double Deep Electric Reach Truck (CQDH20C)
Model：CQDH20C
Product Introduction：The SINOLIFT electric deep reach forklift adopts the latest technologies and ergonomics concepts in designing and manufacturing, it allows double-deep pallet storage in the racks. The forklift provides you with low cost of ownership, superior visibility, unmatched productivity, safety and ergonomics designing for operator. It can be widely used in factory, warehouse, and logistic center and especially in cold storage and food industry.

Advantages:

1. Import proportional hydraulic valve, adjustable speed for lifting/lowering.

2. Multi-function display: battery status, hour meter, fault code, slow running state, etc.

3. Big power controller (350A) with big power electric motor (10KW), support excellent reliability.

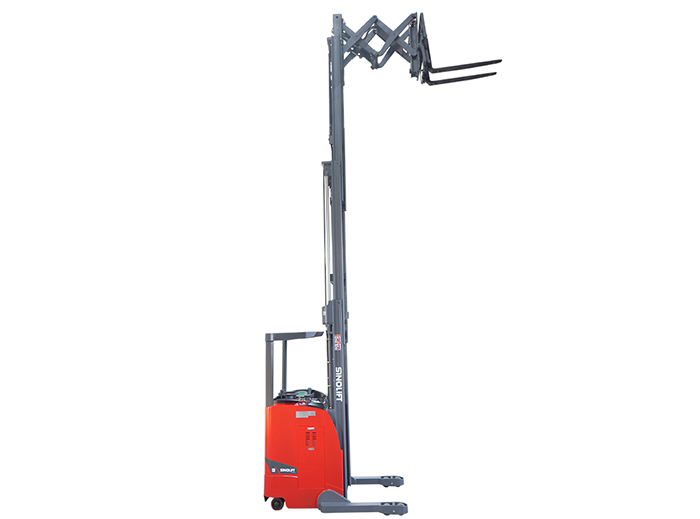

4. Double scissors reach fork let the reach distance up to 1000mm.

5. The mast fixed with the frame, when fork move forward, the mast can become the balance weight, reduce the total service weight.

6. With advanced 36V electric control system, smaller electric current, ensure the reliability of the battery system.

7. High speed of lifting and lowering, 300% faster than normal type truck.

8. Side way battery is very convenient to do maintenance and replace batteries.

Model		CQDH20C(Double Scissor)
Drive type		battery
Capacity/Rated load	Q(kg)	1600
Load centre distance	c(mm)	600
Load distance, centre of drive axle to fork	x(mm)	63
Tyre size, front	mm	343×140+160x60x2
Tyre size, rear	mm	125x82x4
Wheels, number front rear(x=driven wheels)		1x+2/4
Mast/Forks, tilt forward/back	Grad	2/5
Height, lowered	h1(mm)	2365/2763/2933/3743
Free lift	h2(mm)	1225/1720/1890/2756
Max.lift height	h3(mm)	4500/6000/6500/9000
Height, mast extended	h4(mm)	5604/7104/7604/10104
Height of overhead guard	h6(mm)	2362
Overall width	b1/b2(mm)	1352/1070
Overall length	l1(mm)	3250
Length to face of forks	l2(mm)	2180
Length of fork leg face to rear end	l7(mm)	2286
Fork Dimension	s/e/l(mm)	40/100/1070
Reach distance	l4(mm)	1000
Width overall forks	b5(mm)	200-920
Wheelbase ground distance	m2(mm)	40
Aisle width for pallets 1000×1200 croossways	Ast(mm)	3609
Aisle width for pallets 800×1200 lengthways	Ast(mm)	3667
Turning radius	Wa(mm)	2145
Travel speed, laden/unladen	Km/h	10.5/11
Lift speed, laden/unladen	m/s	0.29/0.29
Lowering speed, laden/unladen	m/s	0.45/0.45
Battery voltage,nominal capacity K5	V/Ah	(36/700)(36/700)(36/700)(36/1000)
Battery weight	Kg	1200
Battery dimensions l/w/h	mm	978x537x765
Service weight(with battery)	kg	5800
